Husqvarna 326 ES (2008-04) Edger

Model: 326 ES (2008-04)

Back To Assemblies

Save Part Not Listed?
product name

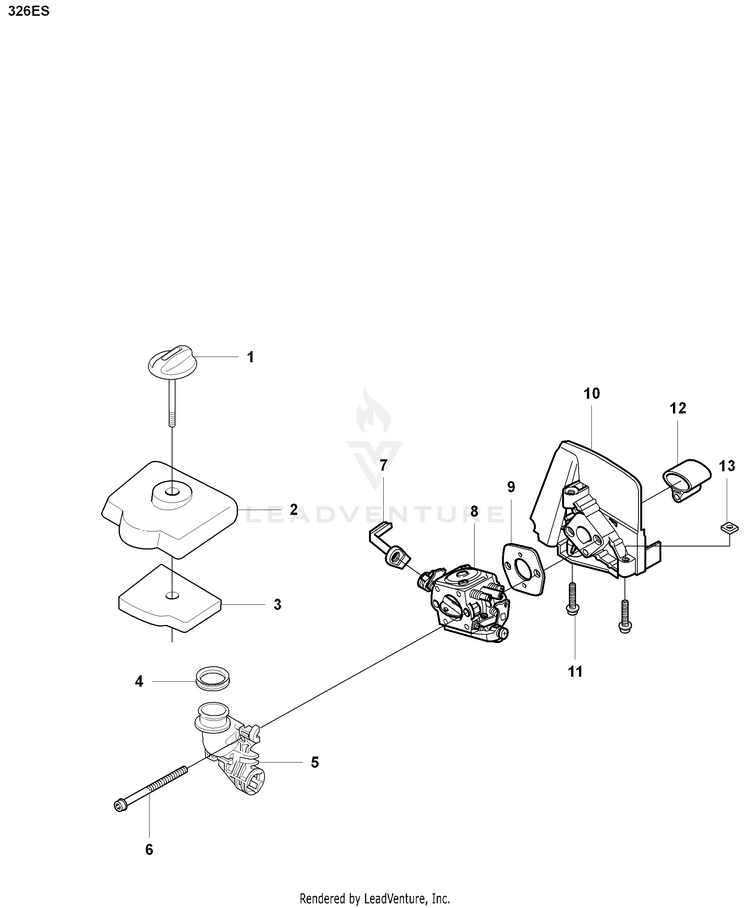

Air Filter and Carburetor

...
...
1
KNOB HUS-537213210
...
2
FILTER COVER HUS-537066302
...
3
AIR FILTER HUS-537143101
...
4
SEALING HUS-740681121
...
5
PIPE HUS-537057801
...
6
SCREW HUS-503217550
...
7
CHOKE CONTROL HUS-503962501
...
8
KIT CARB Zama C1Q-EL24 HUS-588171156
...
9
GASKET HUS-503497101
...
10
PARTITION HUS-503910901
...
11
SCREW HUS-503200325
...
12
PIPE HUS-503942601
...
13
NUT HUS-503226504
