Husqvarna 326 AI Ice Auger

Model: 326 AI

Back To Assemblies

Save Part Not Listed?
product name

CARBURETOR, NOT FOR US

...
...
41
CARBURETOR KIT (ZAMA RB69) HUS-531004553
...
1
CARBURETOR HUS-503283113
...
7
PIN HUS-537020801
...
28
SCREW HUS-537020701
...
38
LOW SPEED NEEDLE HUS-537127801
...
5
GASKET HUS-537020401
...
9
SPRING HUS-537273401
...
31
THROTTLE FLAP HUS-537019901
...
35
PIN HUS-537020801
...
17
SCREW HUS-503479001
...
8
LEVER HUS-503665901
...
15
LEVER HUS-537143401
...
22
BALL HUS-537012501
...
24
PUMP DIAPHRAGM HUS-537020001
...
23
STRAINER HUS-503535701
...
26
COVER HUS-537020201
...
34
SPRING THROTTLE HUS-537019701
...
6
SCREW HUS-503480101
...
25
GASKET HUS-537020101
...
20
MAIN NOZZLE CH.VALVE HUS-544018201
...
33
SCREW * HUS-503755301
...
14
BUSHING HUS-503481901
...
16
SPRING HUS-537021001
...
27
SCREW HUS-503479601
...
32
SCREW HUS-503479201
...
4
DIAPHRAGM HUS-537048901
...
30
PLUG HUS-503481101
...
18
LEVER HUS-537019801
...
3
COVER HUS-503974301
...
42
CAP HUS-537021601
...
40
GASKET KIT (ZAMA GND39) HUS-531004552
...
13
CHOKE SHAFT HUS-537020901
...
10
INLET NEEDLE HUS-503479701
...
36
SPRING HUS-503994301
...
11
SCREW HUS-503481801
...
29
SHAFT HUS-537019601
...
37
WASHER HUS-503974001
...
39
NEEDLE HIGH SPEED HUS-537020601
...
12
CHOKE CAP HUS-537370301
...
2
SCREW HUS-503480501
...
19
SPACER HUS-503478901
...
21
SPRING HUS-537012601

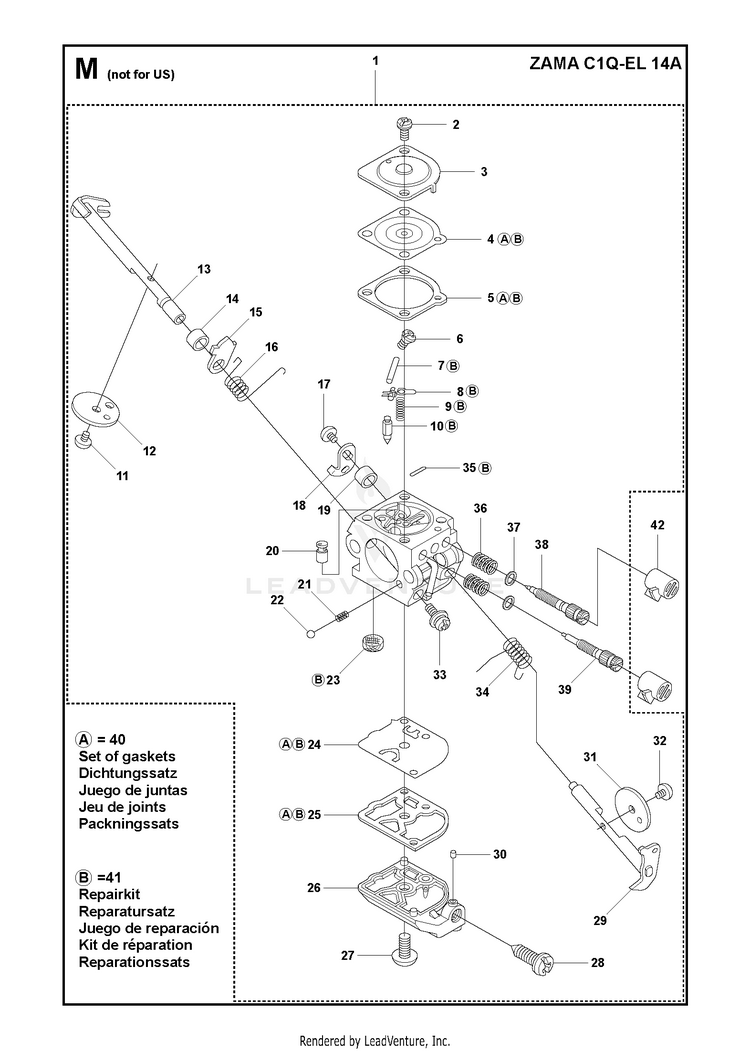

Schematic Image Zoomed
