Husqvarna 326 AI Ice Auger

Model: 326 AI

Back To Assemblies

Save Part Not Listed?
product name

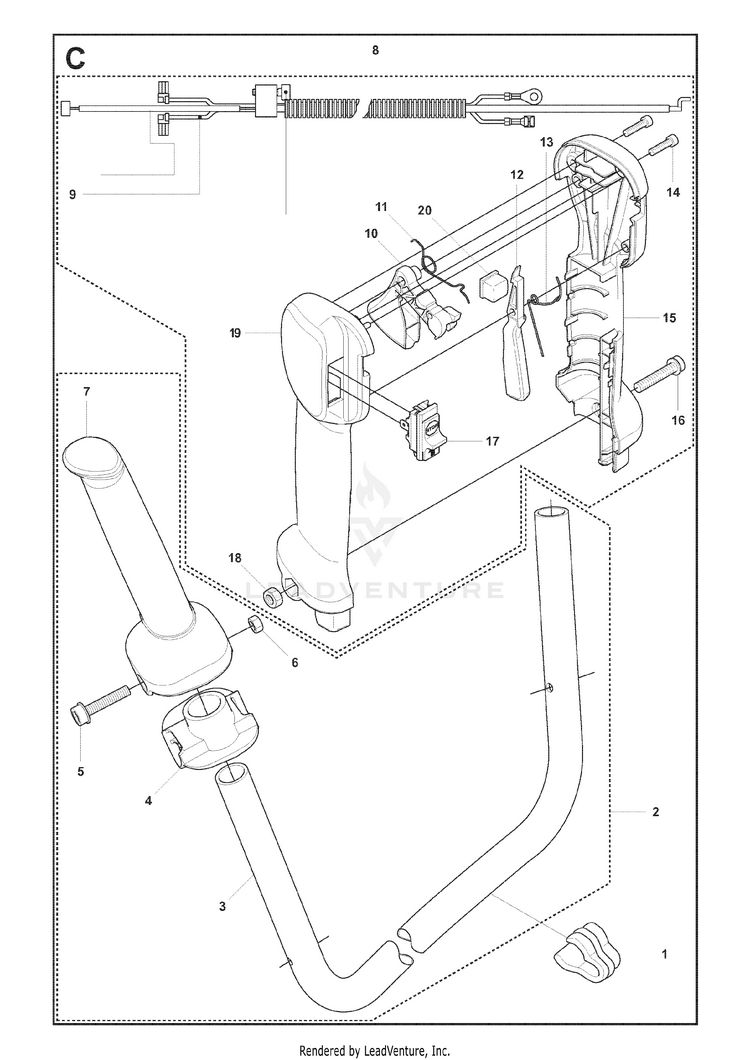

HANDLE & CONTROLS

...
...
4
BRACKET HUS-537172901
...
12
THROTTLE CONTROL HUS-506497701
...
16
SCREW IHSCFM HUS-503200782
...
13
SPRING HUS-537174301
...
7
HANDLE HUS-537172801
...
15
HANDLE HUS-537160302
...
19
HANDLE HALF LEFT HUS-537160209
...
3
NEEDS DESCRIPTION HUS-504537101
...
18
NUT HUS-503221013
...
10
THROTTLE CONTROL HUS-506497701
...
17
STOP BUTTON HUS-537419001
...
20
NEEDS DESCRIPTION HUS-502442601
...
8
HANDLE SYSTEM ASSY OPS, SOFT HUS-537424510
...
14
SCREW HUS-503216618
...
2
NEEDS DESCRIPTION HUS-504544401
...
1
GROMMET HUS-502211201
...
6
NUT HUS-731231401
...
5
SCREW HUS-503200245
...
11
SPRING HUS-537174201
...
9
WIRING ASSY ICE AUGER HUS-537424402
