Husqvarna 326 AI Ice Auger

Model: 326 AI

Back To Assemblies

Save Part Not Listed?
product name

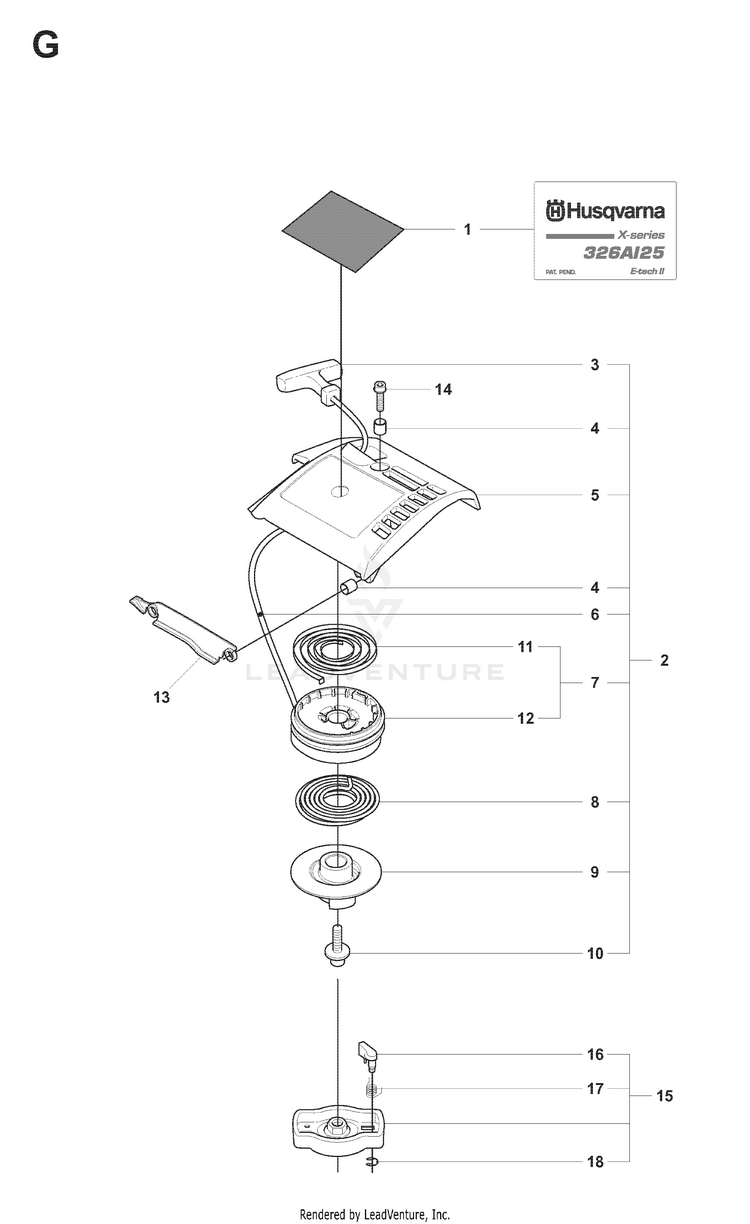

STARTER

...
...
10
SCREW HUS-503217725
...
7
STARTER PULLEY HUS-544166501
...
17
SPRING HUS-503873601
...
14
SCREW HUS-503200316
...
18
E-RING 4 HUS-735310820
...
2
STARTER ASSY HUS-544002503
...
6
STARTER ROPE HUS-503858901
...
4
SPACING SLEEVE HUS-537379302
...
9
PULLEY STARTER DRIVE HUS-579366201
...
3
STARTER HANDLE HUS-537008401
...
11
SPRING HUS-503859001
...
1
LABEL 326AI HUS-537353463
...
16
STARTER PAWL HUS-544011401
...
5
STARTER DEVICE HUS-544002402
...
15
STARTER PAWL BRIDGE HUS-503873305
...
8
SPRING - DRIVER HUS-544038802
...
13
NEEDS DESCRIPTION HUS-504021801
...
12
STARTER PULLEY HUS-544038601
