Husqvarna 325 RXT (2002-01) Brushcutter/Clearing Saw

Model: 325 RXT (2002-01)

Back To Assemblies

Save Part Not Listed?
product name

BEVEL GEAR

...
...
503 93 55-01
CLAMP HUS-574306904
...
738 21 99-00
BALL BEARING 24X9X1/609ZR HUS-738219900
...
503 94 11-01
BEVEL GEAR ASSY HUS-536503801
...
503 95 97-01
SCREW HUS-503959701
...
738 21 01-04
BALL BEARING HUS-738210104
...
738 22 96-15
Ball Bearing 626 6x19x6 HUS-738229615
...
503 94 12-01
BEVEL GEAR ASSY HUS-536503801
...
503 94 14-01
SUPPORT FLANGE HUS-537285601
...
503 20 07-25
SCREW HUS-503200725
...
735 31 25-10
RETAINING RING HUS-735312510
...
503 20 25-16
SCREW HUS-503202516
...
735 31 28-10
RETAINING RING SGH 28 HUS-735312810
...
537 04 10-01
BEVEL GEAR ASSY HUS-536503801
...
738 21 99-01
BALL BEARING 609Z HUS-738219901
...
537 04 64-01
GRASS PROTECTOR HUS-537046401
...
537 01 30-01
DRIVER HUS-537013001
...
503 85 63-01
GEARHEAD NUT - BRUSHCUTTER HUS-503856301
...
725 23 70-51
SCREW HUS-725237071
...
503 20 07-12
SCREW HUS-503200712
...
731 23 12-01
NUT M6M M4 HUS-731231201
...
735 31 11-00
RETAINING RING HUS-735311100

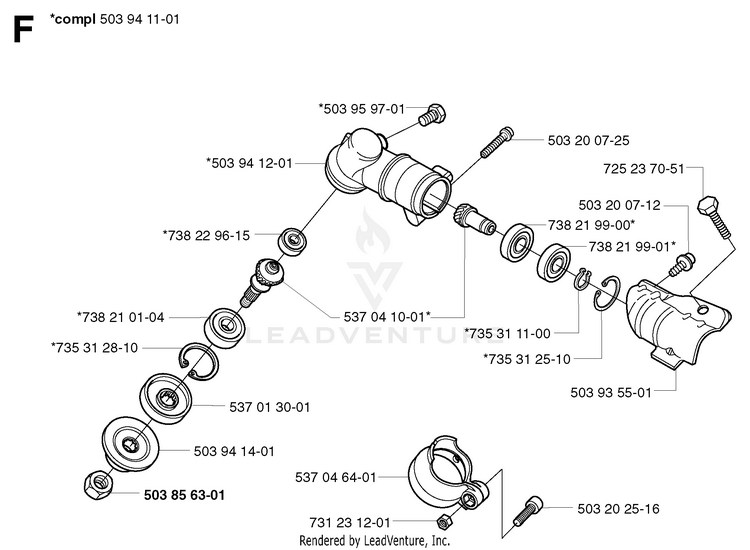

Schematic Image Zoomed
