Husqvarna 325 RXT (2002-01) Brushcutter/Clearing Saw

Model: 325 RXT (2002-01)

Back To Assemblies

Save Part Not Listed?
product name

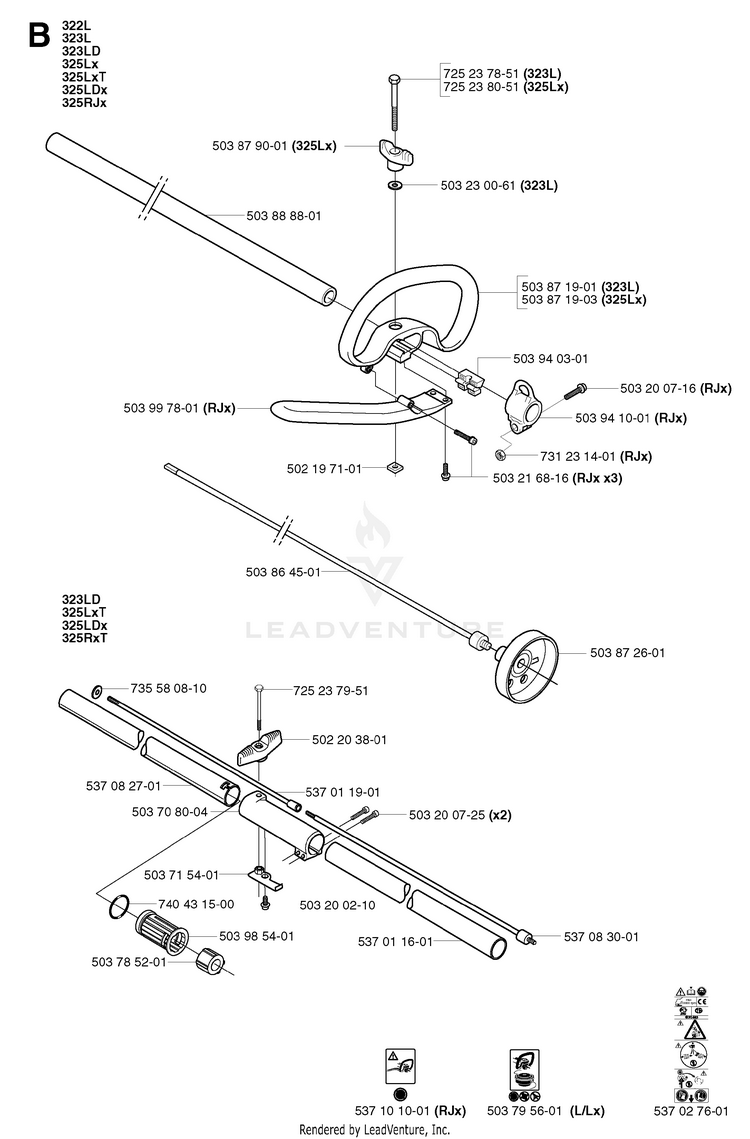

SHAFT & HANDLE 2

...
...
503 87 19-01
HANDLE 323L HUS-503871906
...
537 01 16-01
TUBES HUS-587987901
...
503 79 56-01
DECAL WARNING "NO BLADES" L/LX HUS-503795601
...
502 19 71-01
NUT HUS-502197101
...
537 02 76-01
LABEL WARNING TRIMMERS AND BRU HUS-589295101
...
537 10 10-01
DECAL RJX HUS-537101001
...
502 20 38-01
HANDLE HUS-502203801
...
503 78 52-01
BUSHING HUS-503785202
...
503 20 07-16
SCREW RJX HUS-525755101
...
503 87 90-01
KNOB 325LX HUS-503879001
...
503 71 54-01
BRACKET HUS-503715401
...
503 86 45-01
DRIVE SHAFT HUS-503864501
...
503 21 68-16
SCREW RJX X3 HUS-503216816
...
503 87 26-01
CLUTCH DRUM HUS-503872601
...
503 20 07-25
SCREW HUS-503200725
...
537 08 27-01
TUBE HUS-537082701
...
725 23 79-51
SCREW HUS-725237951
...
503 94 03-01
SPACER PLASTIC HUS-503940301
...
725 23 78-51
SCREW 323L HUS-725237851
...
503 98 54-01
HOLDER HUS-503985401
...
537 08 30-01
SHAFT UPPER HUS-537083001
...
503 20 02-10
SCREW M5 X 10 HUS-503200710
...
731 23 14-01
NUT RJX HUS-731231401
...
537 01 19-01
SHAFT HUS-587411701
...
503 70 80-04
CLAMPING SLEEVE HUS-576282602
...
503 94 10-01
HARNESS HOLDER RJX HUS-503941001
...
503 87 19-03
HANDLE 325LX HUS-503871908
...
740 43 15-00
O-RING HUS-740431500
...
503 23 00-61
WASHER 323L HUS-503230061
...
725 23 80-51
SCREW M6X50 325LX HUS-725238051
...
503 99 78-01
HANDLE RJX HUS-503997804
...
503 88 88-01
DRIVE TUBE ASSEMBLY HUS-503888801
...
735 58 08-10
WASHER HUS-735580810
