Husqvarna 325 R Brushcutter/Clearing Saw

Model: 325 R

Save Part Not Listed?
product name

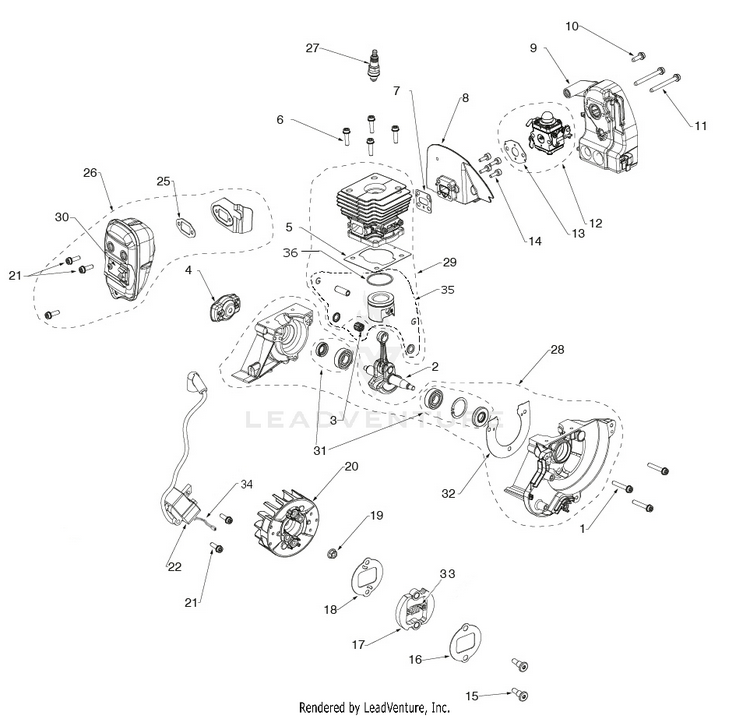

ENGINE

...
...
22
Ignition Module HUS-597383401
...
13
GASKET - CARBURETOR HUS-530019194
...
31
SEAL KIT AND BEARING HUS-501856201
...
14
SCREW ITXSCM HUS-525760906
...
21
SCREW HUS-525755101
...
30
KIT SPARK ARRESTOR SPARK ARRESTOR (IF EQUIPPED) HUS-580446603
...
32
GASKET CRANKCASE HUS-579522801
...
27
SPARK PLUG RESISTOR NGK CMR6A SPARK PLUG HUS-503235401
...
3
Bearings HUS-589568901
...
5
GASKET CYLINDER BASE HUS-579522901
...
7
GASKET, INSULATION WALL HUS-579622603
...
10
SCREW HUS-573925801
...
26
MUFFLER KIT RUSSIA & LATIN AMERICA ONLY HUS-501174301
...
2
CRANKSHAFT ASSY HUS-522928903
...
9
ASSY FILTER HOLDER HUS-580985501
...
36
PISTON RING 36MM HUS-579524601
...
4
STARTER PAWL BRIDGE HUS-503873305
...
19
FLANGE NUT HUS-731711651
...
18
WASHER CLUTCH LOWER HUS-525612901
...
28
KIT CRANKCASE ASSY CRANKCASE HUS-580446632
...
26
MUFFLER KIT ALL MARKETS EXCEPT RUSSIA & LATIN AMERICA HUS-545008098
...
8
Insulator HUS-579622402
...
11
SCREW HUS-573925802
...
35
KIT PISTON 129 PISTON HUS-590553502
...
15
SCREW CLUTCH HUS-525615401
...
17
CLUTCH ASSY HUS-575762203
...
25
GASKET HUS-580985801
...
29
KIT PISTON/CYLINDER PISTON & CYLINDER HUS-591397601
...
33
SPRING CLUTCH HUS-587037001
...
1
SCREW HUS-525755103
...
34
CABLE SHORT CIRCUIT ENGINE HUS-584993902
...
6
SCREW HUS-525755102
...
20
FLYWHEEL HUS-510088202
...
12
KIT CARBURETOR CARBURETOR HUS-545008097
...
16
WASHER CLUTCH UPPER HUS-525613001

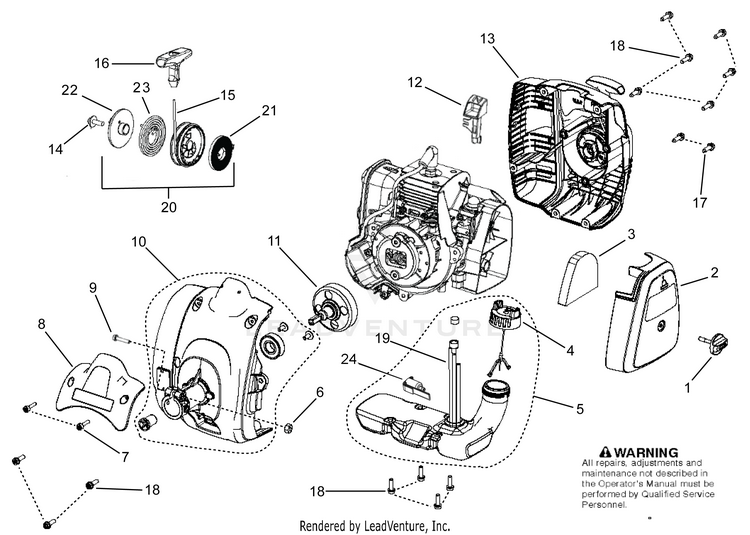

HOUSING

...
...
2
FILTER COVER AIR FILTER HUS-524853801
...
15
KIT ROPE HUS-545008079
...
17
SCREW HUS-573925801
...
7
SCREW HUS-574444001
...
22
PULLEY STARTER DRIVE HUS-579366201
...
10
CLUTCH COVER ASSEMBLY COMPLETE HUS-584993803
...
5
Fuel Tanks FUEL TANK ASSEMBLY HUS-587332605
...
6
NUT Nut HUS-731231401
...
9
SCREW HUS-525755104
...
1
KNOB COVER HUS-537213209
...
4
Caps FUEL TANK HUS-578931504
...
21
KIT STARTER SPRING HUS-545008087
...
11
Clutch Drums CLUTCH DRUM HUS-596024001
...
24
FUEL FILTER HUS-574603901
...
13
ASSY STARTER COVER HUS-580294001
...
3
FILTER AIR FILTER HUS-574242701
...
14
SCREW HUS-545112801
...
20
KIT PULLEY/SPRING HUS-585530301
...
16
STARTER HANDLE HUS-575489501
...
8
GUARD CLUTCH COVER HUS-585644901
...
12
CHOKE BUTTON HUS-524853701
...
19
Fuel Hoses HUS-599568901
...
18
SCREW HUS-525755101
...
23
DRIVER SPRING HUS-578465101

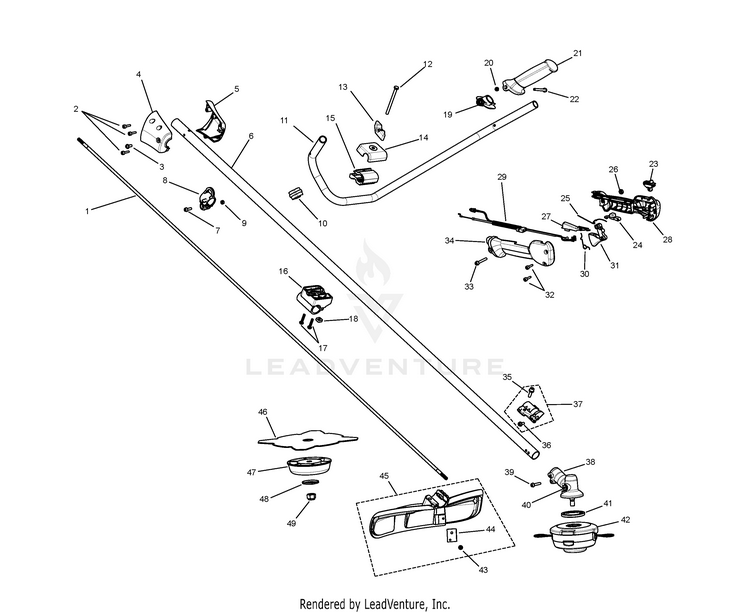

SHAFT & HANDLE

...
...
44
BLADE BLADE HUS-503798802
...
43
SCREW ITXSCFT PW4.8X16 T27 CH SCREW ITXSCFT HUS-576275601
...
2
SCREW SCREW MT4X18 T27 10.9 HUS-574444001
...
5
CONE NOSE BULLHORN L/H HUSQ OR NOSE CONE B/H LH HVA 2 HUS-574810705
...
32
SCREW SCREW ITXSCT HUS-574444001
...
6
KIT SVC 325R DRIVESHAFT EU TUBE ASSY KIT (EUROPE) HUS-596024103
...
35
BOLT SCREW HUS-523019001
...
48
SUPPORT FLANGE FLANGE SUPPORT HUS-537285601
...
28
HANDLE HALF LEFT HANDLE HALF HUS-537160209
...
14
BRACKET COVER HUS-503722901
...
20
NUT HEX NUT HUS-731231401
...
3
SCREW SCREW HUS-584294001
...
34
HANDLE HANDLE HALF HUS-537160302
...
6
KIT SVC 325R DRIVESHAFT RUS/LA TUBE ASSY KIT (RUSSIA & LATIN AMERICA) HUS-596024104
...
41
DRIVE DISC DRIVER DISC HUS-537234901
...
27
THROTTLE LOCKOUT THROTTLE LOCKOUT HUS-506495101
...
10
GROMMET THROTTLE CABLE CLIP HUS-502211201
...
13
HANDLE KNOB HUS-502203801
...
22
SCREW ITXSCFM M5X45 T27 12.9 SCREW HUS-525755204
...
33
SCREW IHSCFM SCREW IHSCFM HUS-503200782
...
4
CONE NOSE CONE B/H RH HVA 2 HUS-574810305
...
26
NUT HEXAGON NUT HUS-503221013
...
11
HANDLE HANDLE BAR HUS-502199503
...
16
HOLDER BRACKET HUS-503882301
...
40
PLUG GREASE PLUG HUS-503201501
...
31
THROTTLE CONTROL THROTTLE CONTROL HUS-506495001
...
45
COMBINATION GUARD GUARD ASSY TRIMMER HUS-588117901
...
18
NUT SQUARE NUT HUS-502197101
...
47
SUPPORTING CUP CUP SUPPORT HUS-503890101
...
15
HOLDER HANDLEBAR BRACKET HUS-544020903
...
30
SPRING SPRING THROTTLE TRIG HUS-537174201
...
8
HARNESS HOLDER HOOK HUS-503941001
...
9
NUT HEXAGON NUT HUS-731231401
...
17
SCREW SCREW HUS-512848101
...
21
HANDLE HANDLE GRIP HUS-537172801
...
36
BOLT SCREW HUS-574710801
...
7
SCREW SCREW ITXSCFM HUS-525755101
...
38
GEARHEAD GEAR HEAD HUS-537333801
...
42
T35 TRIMMER HEAD IN BAG HEAD TRIMMER T35 HUS-531300194
...
25
SPRING SPRING HUS-537174301
...
39
SCREW SCREW ITXSCFM HUS-525755104
...
24
STARTER THROTTLE LOCK STARTER THROTTLE LOC HUS-537160703
...
12
SCREW SCREW M6 X 80 10.9 HUS-725238651
...
23
STOP BUTTON SWITCH HUS-537419001
...
49
GEARHEAD NUT - BRUSHCUTTER LOCKNUT BLADE HUS-503856301
...
29
CABLE ASSY CABLE ASSY HUS-580294301
...
37
ASSY CLAMP 523L CLAMP ASSY HUS-581027501
...
46
HUS 10" GRASSBLADE 255-4T 1" "BLADE GRASS 255-4T-1""" HUS-596278001
...
1
DRIVESHAFT DRIVESHAFT HUS-581815101
...
19
BRACKET COVER HUS-537172901
