Husqvarna 325 LXT (2002-01) Trimmer/Edger

Model: 325 LXT (2002-01)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

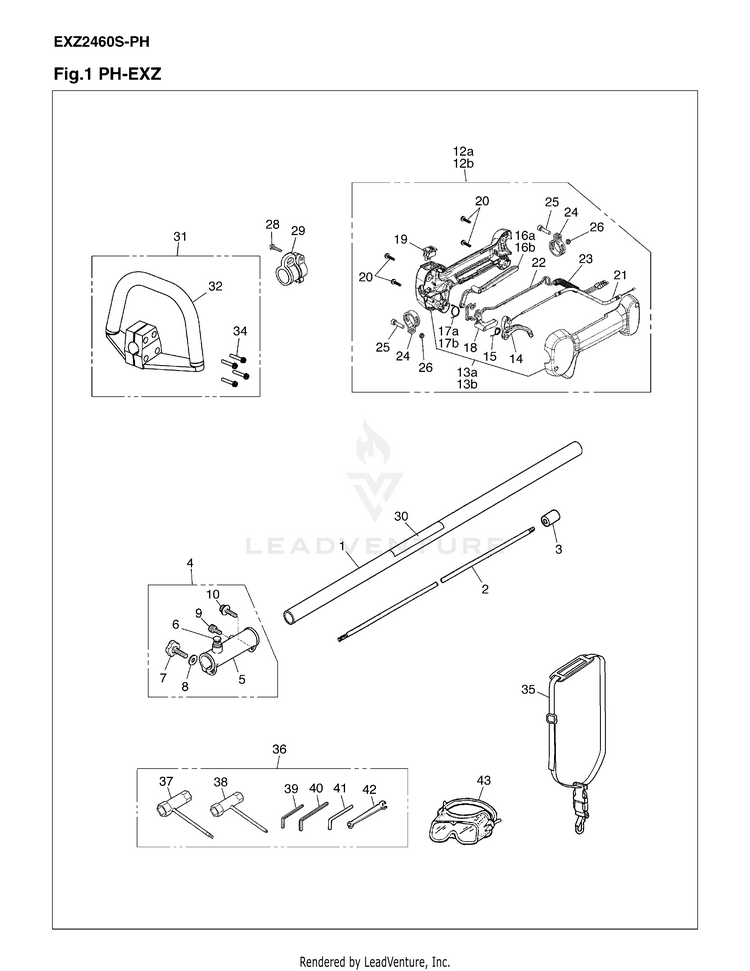

SHAFT & HANDLE

...
...
3
SPACER HUS-515513001
...
8
WASHER HUS-505169801
...
32
HANDLE T HUS-512553501
...
17a
SPRING HUS-511591801
...
18
LEVER JOINT HUS-529259201
...
13a
GRIP HALF SET HUS-576475202
...
30
NEEDS DESCRIPTION HUS-576669401
...
28
HANGER COMP. HUS-521822101
...
10
BOLT,TORX HUS-521862401
...
22
CORD - C HUS-529256101
...
2
SHAFT HUS-521811601
...
23
TUBE HUS-521805501
...
43
GOGGLE HUS-510989401
...
12b
GRIP ASSY HUS-574390302
...
13b
GRIP HALF SET HUS-576475202
...
29
SCREW HUS-510482301
...
16a
LEVER, SAFETY HUS-578778001
...
31
HANDLE ASSY. (RPLS T319514001) HUS-526056401
...
20
SCREW HUS-521517701
...
25
BOLT TORX HUS-506689001
...
24
BAND HUS-529259401
...
19
SWITCH HUS-521851601
...
15
SPRING, THROTTLE HUS-529259601
...
21
CABLE-C HUS-529257101
...
35
STRAP ASSY HUS-521651101
...
6
STOPPER HUS-512527001
...
5
JOINT HUS-580886001
...
17b
SPRING HUS-511591801
...
16b
LEVER, SAFETY HUS-578778001
...
38
NEEDS DESCRIPTION HUS-512508601
...
40
WRENCH (TOOL) HUS-516144701
...
26
NUT HUS-579000001
...
7
KNOB BOLT HUS-515513401
...
12a
GRIP ASSY HUS-574390302
...
42
WRENCH SPANNER HUS-506615001
...
14
LEVER, THROTTLE HUS-529258801
...
41
BAR HUS-505312001
...
4
JOINT ASSY HUS-576640002
...
1
PIPE COMP HUS-588677001
...
34
SCREW HUS-521863101
...
37
TOOL SET (RPLS 848-8UD-0120) HUS-521532701
...
39
WRENCH HUS-505311901
...
9
BOLT 08 HUS-504119601
...
36
TOOL SET HUS-521532601
