Husqvarna 324 RX Brushcutter/Clearing Saw

Model: 324 RX

Back To Assemblies

Save Part Not Listed?
product name

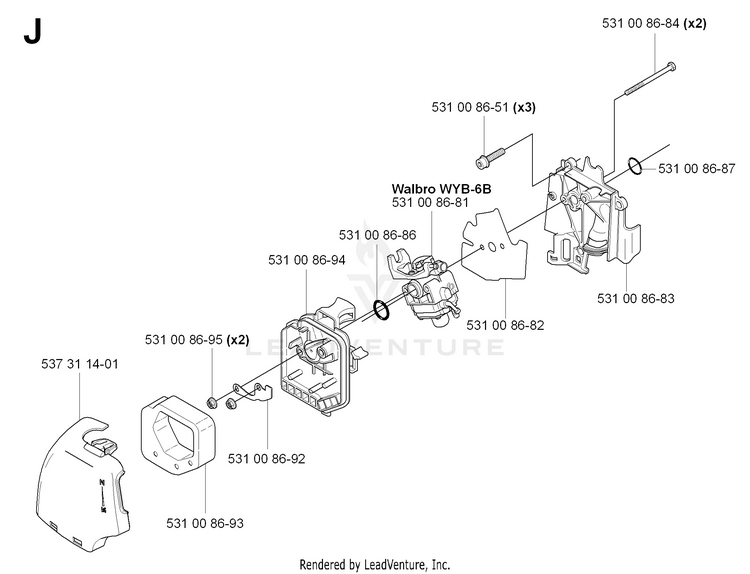

CARBURETOR & AIR FILTER

...
...
531 00 86-87
O-RING HUS-531008687
...
531 00 86-51
SCREW HUS-531008651
...
531 00 86-94
HOLDER HUS-531008694
...
531 00 86-93
AIR FILTER HUS-531008693
...
531 00 86-92
PLATE HUS-531008692
...
531 00 86-86
O-RING HUS-531008686
...
531 00 86-95
NUT HUS-531008695
...
537 31 14-01
COVER, AIR CLEANER HUS-537311401
...
531 00 86-82
GASKET HUS-531008682
...
531 00 86-84
SCREW HUS-531008684
...
531 00 86-83
MANIFOLD HUS-531008683
...
531 00 86-81
CARBURETOR HUS-531008681
