Husqvarna 324 RX Brushcutter/Clearing Saw

Model: 324 RX

Back To Assemblies

Save Part Not Listed?
product name

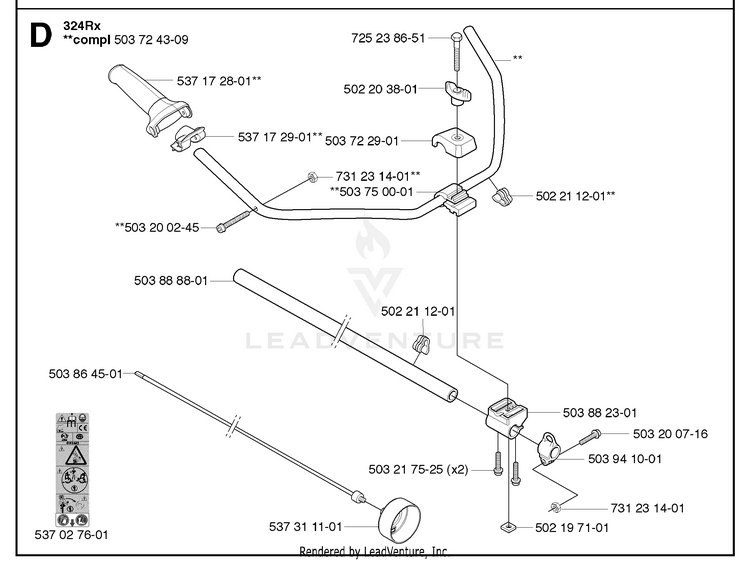

SHAFT & HANDLE

...
...
503 20 02-45
SCREW HUS-503200245
...
503 72 29-01
BRACKET HUS-503722901
...
502 19 71-01
NUT HUS-502197101
...
503 94 10-01
HARNESS HOLDER HUS-503941001
...
725 23 86-51
SCREW HUS-725238651
...
537 02 76-01
LABEL WARNING TRIMMERS AND BRU HUS-589295101
...
503 72 43-09
HANDLE HUS-503724309
...
537 17 29-01
BRACKET HUS-537172901
...
503 20 07-16
SCREW HUS-525755101
...
537 17 28-01
HANDLE HUS-537172801
...
503 75 00-01
HOLDER HUS-544020903
...
503 21 75-25
SCREW HUS-503217525
...
502 20 38-01
HANDLE HUS-502203801
...
731 23 14-01
NUT HUS-731231401
...
502 21 12-01
GROMMET HUS-502211201
...
503 88 88-01
DRIVE TUBE ASSEMBLY HUS-503888801
...
537 31 11-01
CLUTCH DRUM HUS-537311101
...
503 88 23-01
HOLDER HUS-503882301
...
503 86 45-01
DRIVE SHAFT HUS-503864501
