Husqvarna 323RII (2009-08) Trimmer

Model: 323RII (2009-08)

Back To Assemblies

Save Part Not Listed?
product name

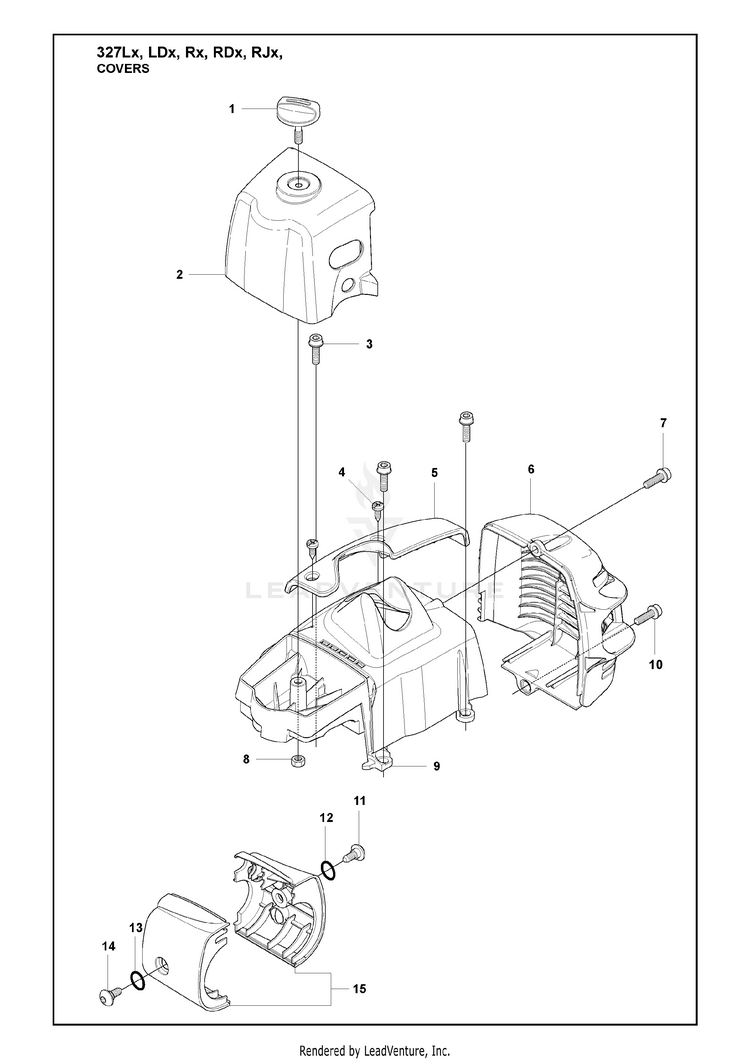

Covers

...
...
1
KNOB HUS-537213210
...
2
FILTER COVER HUS-502481301
...
3
SCREW M5x16 HUS-503200316
...
4
SCREW HUS-503213512
...
5
ARM PROTECTION HUS-502481601
...
6
HEAT PROTECTOR HUS-544848102
...
7
SCREW W/ LOCKING FLUID HUS-503216220
...
8
NUT HUS-503222401
...
9
CYLINDER COVER ASSY HUS-574353901
...
10
SCREW HUS-503200316
...
11
SCREW MT5X11 HUS-503961301
...
12
O-RING 8X1.6 HUS-740420600
...
13
O-RING 8X1.6 HUS-740420600
...
14
SCREW MT5X11 HUS-503961301
...
15
COVER HUS-502481501
