Husqvarna 323 Ex Trimmer/Edger

Model: 323 Ex

Back To Assemblies

Save Part Not Listed?
product name

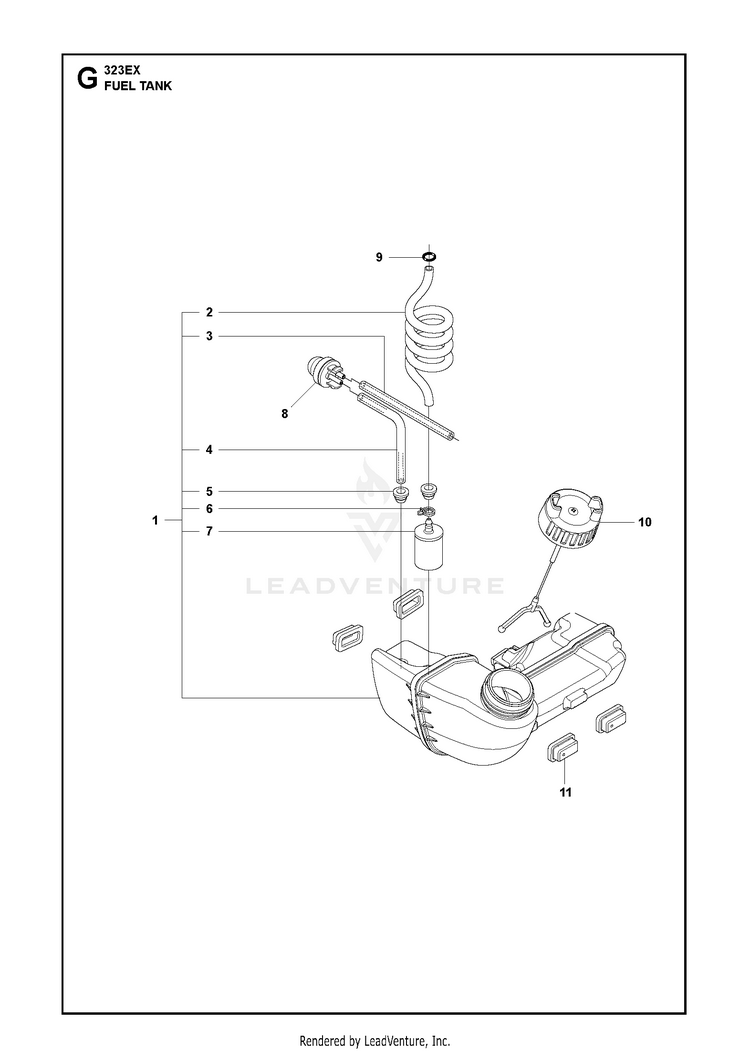

FUEL TANK 2

...
...
10
TANK CAP HUS-590324802
...
5
FUEL TANK BUSHING HUS-503735801
...
11
SUPPORT HUS-503911001
...
1
FUEL TANK ASSY HUS-579534301
...
6
HOSE CLAMP HUS-504022401
...
7
KIT FUEL FILTER HUS-591375401
...
3
HOSE.FUEL L=102 HUS-537042401
...
4
HOSE.FUEL L=102 HUS-537042401
...
8
AIR PURGE BUBBLE HUS-503936601
...
2
FUEL LINE HUS-578906803
...
9
O-RING HUS-537184901
Schematic Image Zoomed
