Husqvarna 323 Ex Trimmer/Edger

Model: 323 Ex

Back To Assemblies

Save Part Not Listed?
product name

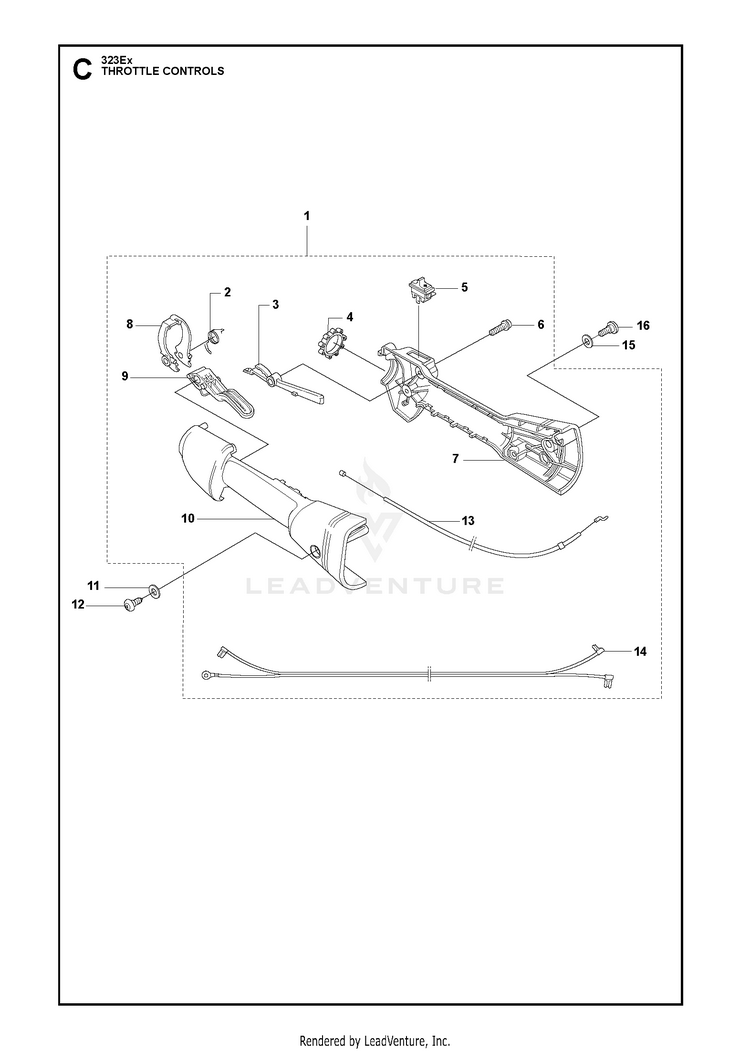

THROTTLE CONTROLS

...
...
9
THROTTLE TRIGGER HUS-503877903
...
8
LEVER HUS-503918101
...
11
O-RING 8X1.6 HUS-740420600
...
4
VIBRATION DAMPER HUS-503961401
...
14
WIRE HUS-503878501
...
13
THROTTLE CABLE HUS-544171701
...
5
START/STOP SWITCH HUS-503718201
...
15
O-RING 8X1.6 HUS-740420600
...
2
SPRING HUS-537011301
...
6
SCREW HUS-503216618
...
10
HANDLE HALF HSG LH HUS-503995601
...
12
SCREW MT5X11 HUS-503961301
...
1
HANDLE HUS-503852902
...
7
HSG THROTTLE RH HUS-503995501
...
16
SCREW MT5X11 HUS-503961301
...
3
THROTTLE LOCK HUS-503878001
