Husqvarna 323 Ex Trimmer/Edger

Model: 323 Ex

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

CARBURETOR

...
...
38
SCREW HUS-503479601
...
40
SCREW HUS-537020701
...
24
CAP HUS-537021601
...
7
SCREW HUS-503481801
...
21
CAP HUS-537021601
...
26
NEEDLE HIGH SPEED HUS-537020601
...
42
GASKET KIT (ZAMA GND39) Set of gaskets HUS-531004552
...
11
SCREW HUS-503480501
...
32
THROTTLE FLAP HUS-537019901
...
41
CARBURETOR KIT (ZAMA RB69) Repairkit HUS-531004553
...
27
SPRING HUS-537012601
...
3
BUSHING HUS-503481901
...
34
SCREW HUS-503479201
...
19
INLET NEEDLE HUS-503479701
...
9
LEVER HUS-537019801
...
1
KIT CARB Zama C1Q-EL12 HUS-588171156
...
12
COVER HUS-503974301
...
6
CHOKE CAP HUS-537370301
...
16
PIN HUS-537020801
...
17
LEVER HUS-503665901
...
13
DIAPHRAGM HUS-537048901
...
35
PUMP DIAPHRAGM HUS-537020001
...
37
COVER HUS-537020201
...
29
STRAINER HUS-503535701
...
25
WASHER HUS-503974001
...
22
SPRING HUS-503994301
...
30
SCREW * HUS-503755301
...
5
SPRING HUS-537021001
...
14
GASKET HUS-537020401
...
8
SCREW HUS-503479001
...
36
GASKET HUS-537020101
...
4
LEVER HUS-537049001
...
10
SPACER HUS-503478901
...
28
BALL HUS-537012501
...
18
SPRING HUS-537273401
...
15
SCREW HUS-503480101
...
33
SHAFT HUS-537019601
...
23
LOW SPEED NEEDLE HUS-537127801
...
31
SPRING THROTTLE HUS-537019701
...
20
PIN HUS-537020801
...
39
PLUG HUS-503481101
...
2
CHOKE SHAFT HUS-537020901

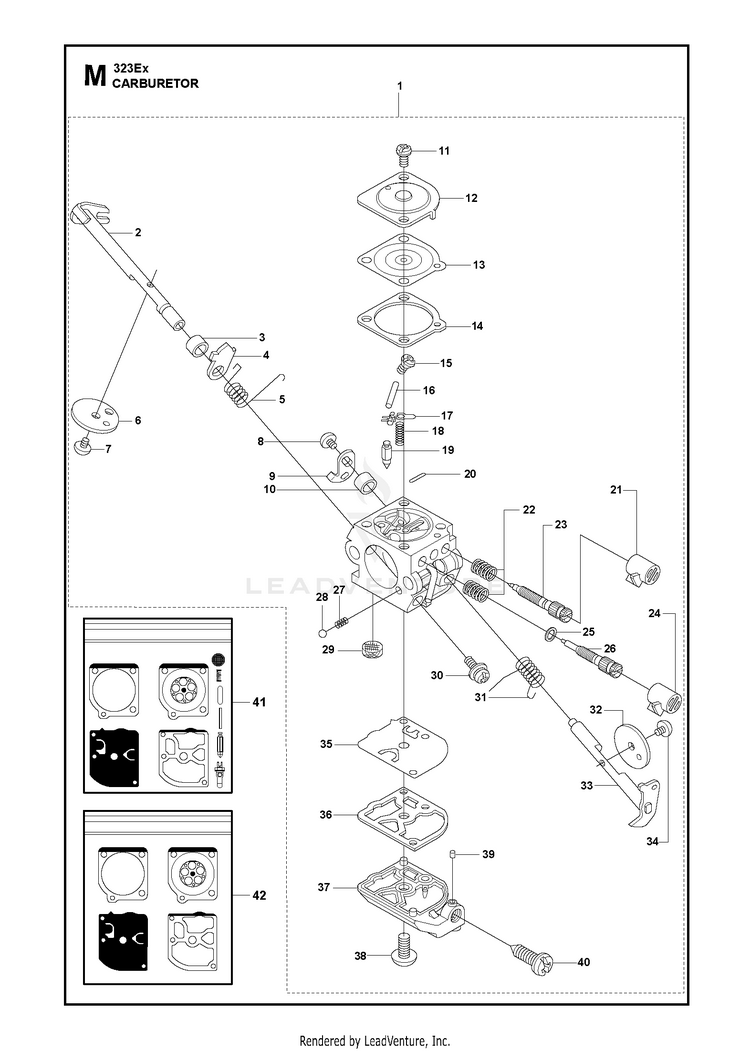

Schematic Image Zoomed
