Husqvarna 323 E (2006-04) Edger

Model: 323 E (2006-04)

Back To Assemblies

Save Part Not Listed?

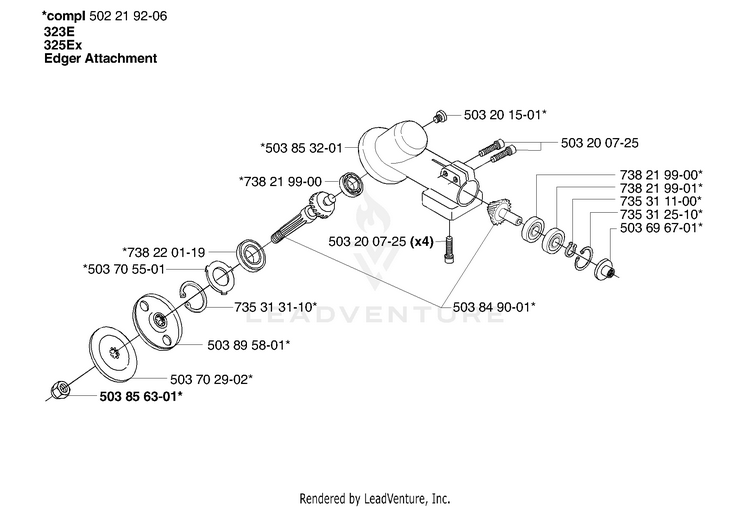

product name

Gear Head

...
...
502219206
ANGLE GEAR HUS-502219206
...
503200725
SCREW HUS-503200725
...
503201501
PLUG HUS-503201501
...
503696701
CONNECTOR HUS-503696701
...
503702902
FLANGE HUS-503702902
...
503705501
WASHER HUS-503705501
...
503849001
GEAR SET HUS-503849001
...
503853201
GEAR HOUSING HUS-503853201
...
503856301
GEARHEAD NUT - BRUSHCUTTER HUS-503856301
...
503895801
FLANGE HUS-503895801
...
735311100
RETAINING RING HUS-735311100
...
735312510
RETAINING RING HUS-735312510
...
735313110
RETAINING RING HUS-735313110
...
738219900
BALL BEARING 24X9X1/609ZR HUS-738219900
...
738220119
BALL BEARING HUS-503252301
...
738219901
BALL BEARING 609Z HUS-738219901
