Husqvarna 322 L Trimmer/Edger

Model: 322 L

Back To Assemblies

Save Part Not Listed?
product name

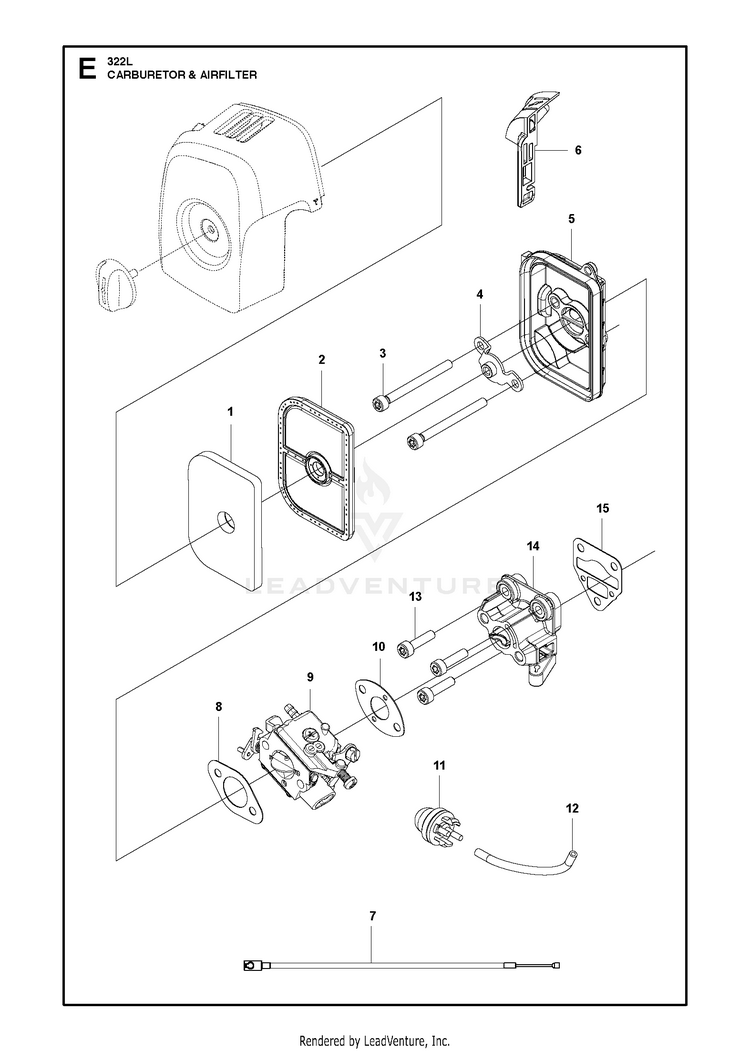

CARBURETOR & AIR FILTER

...
...
4
PLATE HUS-580437901
...
7
THROTTLE CABLE HUS-578864301
...
11
AIR PURGE BUBBLE HUS-503936601
...
6
CHOKE CONTROL HUS-577948303
...
3
BOLT HUS-580467201
...
1
AIR FILTER HUS-577851501
...
14
INSULATOR HUS-578908301
...
10
GASKET CARBURETOR HUS-576399102
...
13
BOLT TORX HUS-506689001
...
12
PIPE HUS-577050501
...
5
FILTER HOUSING HUS-577851301
...
15
GASKET HUS-576398901
...
9
CARBURETOR HUS-577203204
...
8
GASKET HUS-577882402
...
2
FELT HUS-576401601
