Husqvarna 322 L Trimmer/Edger

Model: 322 L

Back To Assemblies

Save Part Not Listed?
product name

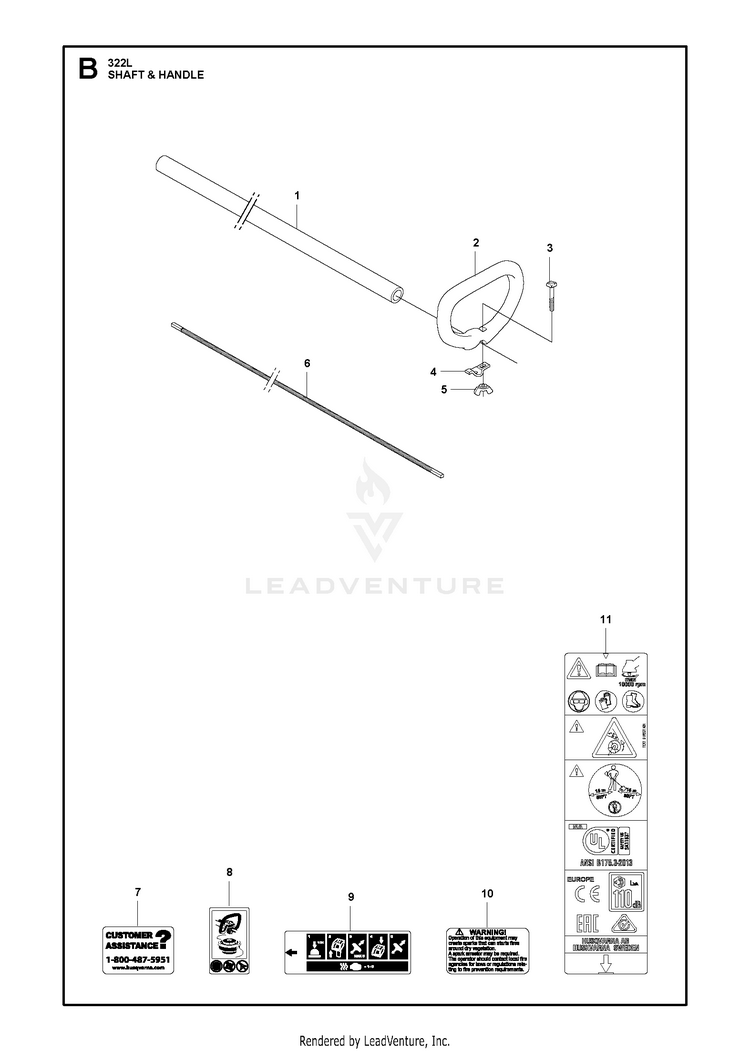

SHAFT & HANDLE

...
...
6
FLEX DRIVE SHAFT HUS-581099401
...
4
CLAMP HUS-530038599
...
3
SCREW HUS-503219835
...
9
DECAL START REMINDER 523/525 HUS-579562301
...
11
DECAL WARNING HUS-501889101
...
2
HANDLE, LOOP HUS-537076801
...
7
DECAL HUS-580948801
...
5
WING NUT HUS-503222601
...
8
DECAL WARNING "NO BLADES" HUS-503795601
...
10
DECAL SPARK ARRESTOR WARNING HUS-522928602
...
1
TUBE COMPLETE HUS-580437501
Schematic Image Zoomed
