product name

Husqvarna 322 L (2002-01) Trimmer

Model: 322 L (2002-01)

Back To Assemblies

Save Part Not Listed?
product name

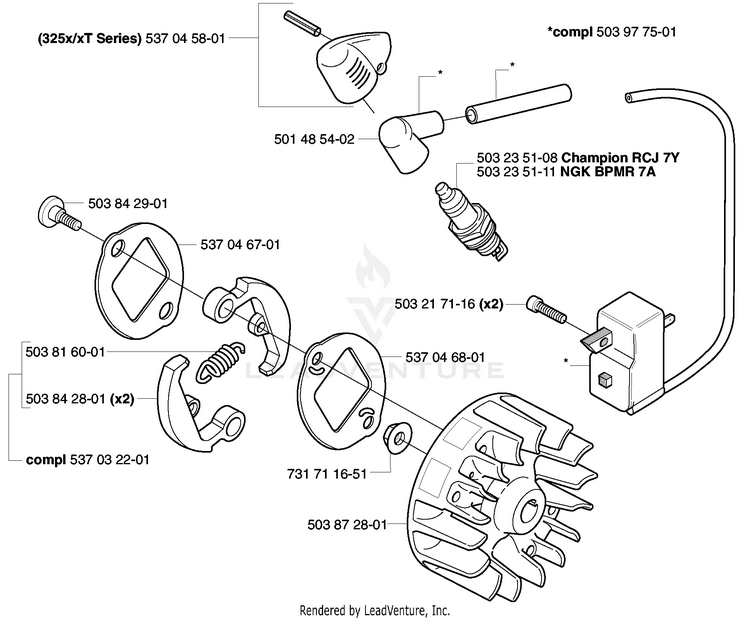

Ignition/Flywheel & Clutch

...
...
501485402
SPARK PLUG CONN. KIT HUS-501485402
...
503217116
SCREW HUS-586444901
...
503235108
SPARK PLUG M14X1.25 NGK BPMR7A HUS-503235111
...
503235111
SPARK PLUG M14X1.25 NGK BPMR7A HUS-503235111
...
503816001
SPRING HUS-503816001
...
503842801
CLUTCH HUS-503842801
...
503842901
SCREW HUS-503842902
...
503872801
FLYWHEEL HUS-537249602
...
503977501
IGNITION MODULE-MB20-1 HUS-537042301
...
537032201
CLUTCH HUS-537032201
...
537045801
COVER HUS-537045801
...
537046701
WASHER, CLUTCH HUS-537046702
...
537046801
WASHER HUS-537046802
...
731711651
FLANGE NUT HUS-731711651
