Husqvarna 322 L (2000-04) Line Trimmer

Model: 322 L (2000-04)

Back To Assemblies

Save Part Not Listed?
product name

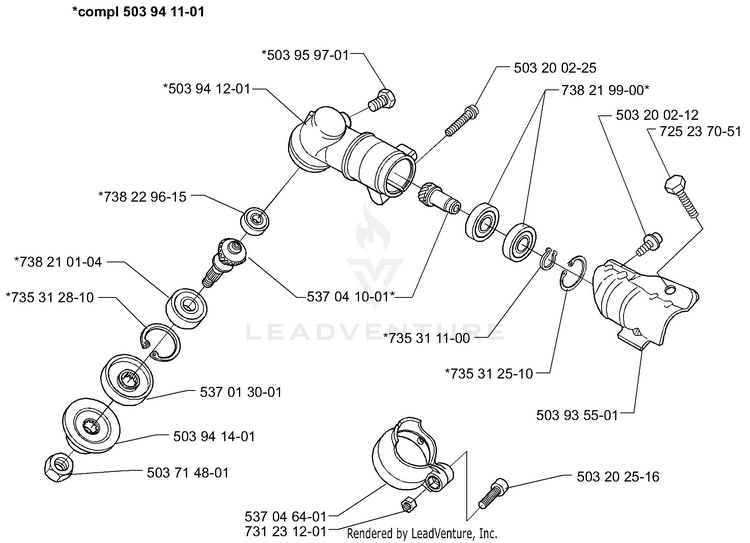

Gearhead

...
...
738229615
Ball Bearing 626 6x19x6 HUS-738229615
...
503714801
GEARHEAD NUT - BRUSHCUTTER HUS-503856301
...
735312810
RETAINING RING SGH 28 HUS-735312810
...
738210104
BALL BEARING HUS-738210104
...
503941401
SUPPORT FLANGE HUS-537285601
...
537013001
DRIVER HUS-537013001
...
503941201
BEVEL GEAR ASSY HUS-536503801
...
503959701
SCREW HUS-503959701
...
735311100
RETAINING RING HUS-735311100
...
537041001
BEVEL GEAR ASSY HUS-536503801
...
503202516
SCREW HUS-503202516
...
503935501
CLAMP HUS-574306904
...
735312510
RETAINING RING HUS-735312510
...
738219900
BALL BEARING 24X9X1/609ZR HUS-738219900
...
503200225
SCREW HUS-503200225
...
725237051
SCREW HUS-725237071
...
503200212
SCREW HUS-503200712
...
503941101
BEVEL GEAR ASSY HUS-536503801
...
731231201
NUT M6M M4 HUS-731231201
...
537046401
GRASS PROTECTOR HUS-537046401
