Husqvarna 32 RL (1990-01) Line Trimmer

Model: 32 RL (1990-01)

Save
 Part Not Listed?Part Not Listed?
product name

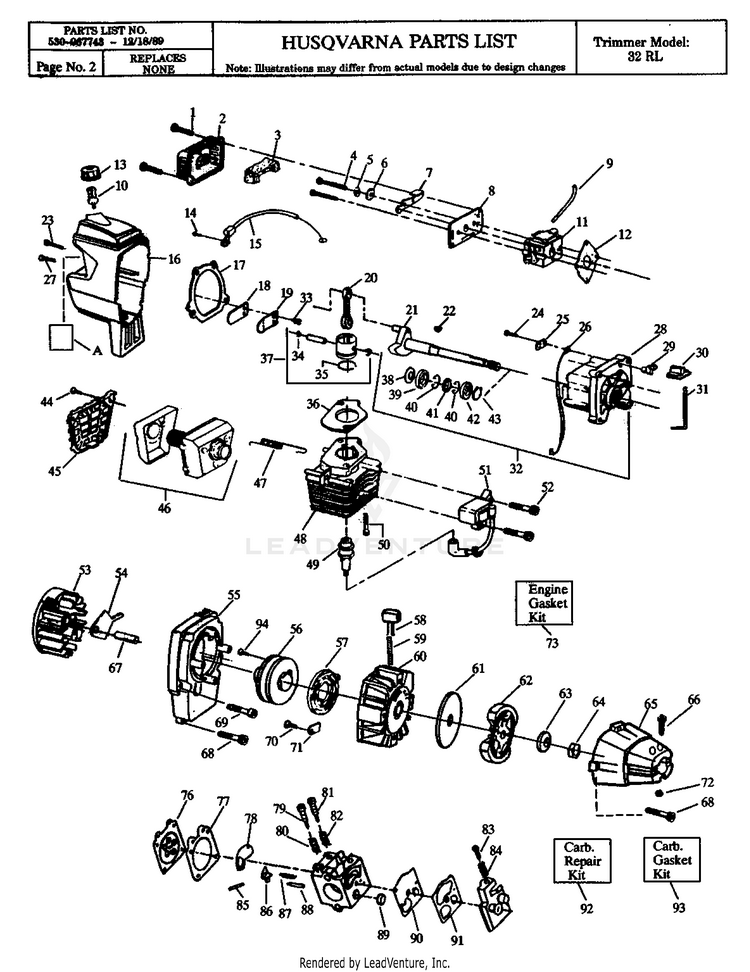

ENGINE

...
...
54
COUNTERWEIGHT FLYWL 26RLC HUS-530027572
...
92
REPAIR KIT HUS-530035260
...
60
ASM-PULLEY HSG(GREEN ONLY) HUS-530014009
...
20
ASS'Y-CONNECTING ROD HUS-530010960
...
26
LEAD WIRE-KILL SWITCH HUS-530027547
...
72
LOCKNUT-HEX 10-24 HUS-530015768
...
87
SPRING-METERING LEVER HUS-530035188
...
58
HANDLE-STARTER HUS-530027569
...
1
SCREW-10-24 X 1" (TAP.) HUS-530015772
...
31
SPRING-KILL SWITCH HUS-530027959
...
10
FUEL PICK-UP ASSY HUS-530095646
...
35
RING-PISTON (HOOKED) HUS-530025875
...
39
Bearing-R8 (inner) HUS-530032103
...
88
VALVE/INLET. HUS-503117001
...
59
KIT-ROPE HUS-530069232
...
43
RING-RETAINING (SHAFT) HUS-530015789
...
45
GUARD-MUFFLER HUS-530027781
...
47
SPRING-MUFFLER HUS-530036409
...
85
FULCRUM PIN HUS-505520125
...
73
KIT-GASKET HUS-530069276
...
21
ASSY-CRANKSHAFT HUS-530010934
...
48
CYLINDER HUS-530012238
...
6
WASHER HUS-530015254
...
18
VALVE-REED HUS-530027593
...
9
HOSE. FUEL HUS-530069247
...
62
Clutch HUS-530069259
...
3
AIR FILTER HUS-530027530
...
28
Crankcase Ass'y. HUS-530014016
...
52
SCREW 8-32 X 3/4 HUS-530015816
...
55
HOUSING-FAN (ORANGE) HUS-530029189
...
36
GASKET-CYLINDER ENGINE GASKET KIT CONTENTS HUS-530019161
...
65
ASM CLUTCH HSG GREEN ONLY HUS-530014017
...
230 03 13-14
Carton HUS-230031314
...
7
SHUTTER-CHOKE HUS-530027526
...
27
SCREW 1/4-20 X 7/8 (TAP HUS-530015771
...
80
Hi Speed Needle Spring HUS-530035036
...
70
SCREW-10-16 X 1/2 HI-LO HUS-530015496
...
91
GASKET HUS-504130906
...
44
SCREW-10-16X9/16SLTD.PH HUS-530015717
...
41
SEAL-CRANKSHAFT HUS-530019158
...
38
SPACER-BEARING HUS-530015788
...
71
RETAINER HUS-530027523
...
78
GASKET HUS-501781301
...
56
STARTER PULLEY HUS-530071387
...
42
BEARING-R8 (OUTER) HUS-530032102
...
82
SPRING-NEEDLE FUEL MIX HUS-530035023
...
68
Screw HUS-530015770
...
90
PUMP DIAPHRAGM HUS-504130807
...
83
SCREW-IDLE SPEED HUS-530035203
...
24
SCREW 6-19X5/8 PLAS.PAN HUS-530015780
...
12
GASKET-CARBURETOR ENGINE GASKET KIT CONTENTS HUS-530019156
...
69
SCREW-10-24X1-3/8-TAPTI HUS-530015769
...
2
COVER-FILTER HUS-530027529
...
84
IDLE SCREW SPRING HUS-530035121
...
29
KILL SWITCH RAMP HUS-530027545
...
76
DIAPHRAGM HUS-503896701
...
53
FLYWHEEL HUS-530039189
...
77
GASKET-METER DIAP HUS-530035151
...
63
WASHER-BELLEVILLE HUS-530015796
...
50
SCREW-1/4-20 X 13/16 HUS-530015239
...
5
CHOKE SPACER HUS-530015852
...
A
DECAL HUS-530029406
...
14
SCREW 8-16 X 9/16 (PLAS HUS-530015775
...
15
THROTTLE CABLE. HUS-530037497
...
66
SCREW-10-24 X 1-3/8 (UN HUS-530015767
...
33
SCREW-6-19X5/16PLAST PA HUS-530015241
...
49
SPARK PLUG (RCJ-8) HUS-530030058
...
94
SCREW HUS-530016080
...
64
NUT HUS-530001733
...
51
MODULE-IGNITION HUS-530039134
...
16
Shroud & Tank Ass'y. HUS-530029188
...
25
INSULATOR-KILL SWITCH HUS-530027546
...
34
WRIST PIN RET. HUS-530015162
...
81
NEEDLE - IDLE HUS-530035141
...
8
PLATE-AIR FILTER MTG. HUS-530027527
...
22
KEY-FLYWHEEL HUS-530015126
...
89
SCREEN-DUTCH TWILL INLE HUS-530035178
...
37
KIT-PISTON (32CC) HUS-530069277
...
57
SPRING STARTER HUS-545008015
...
79
H-NEEDLE HUS-501782201
...
46
KIT-MUFFLER HUS-530069310
...
11
CARBURETOR (WA-199) HUS-530035259
...
530 01 42-49
NEEDS DESCRIPTION HUS-530014249
...
30
KILL SWITCH COVER HUS-530038309
...
23
SCREW-10-24 X 1" (TAP.) HUS-530015772
...
17
GASKET-C'CASE/SHROUD ENGINE GASKET KIT CONTENTS HUS-530019154
...
40
RING-RETAINING HUS-530015787
...
67
SPACER-CLUTCH HUS-530027511
...
4
SCREW HUS-530015849
...
93
KIT-KWIK REPAIR HUS-530035185
...
86
Metering Lever HUS-530038031
...
61
WASHER-CLUTCH HUS-530094189
...
32
CRANKCASE/CRANKSHAFT, HUS-530071705
...
19
REED STOP HUS-530027594
...
13
CAP ASSY W/ RETAINER HUS-530014347

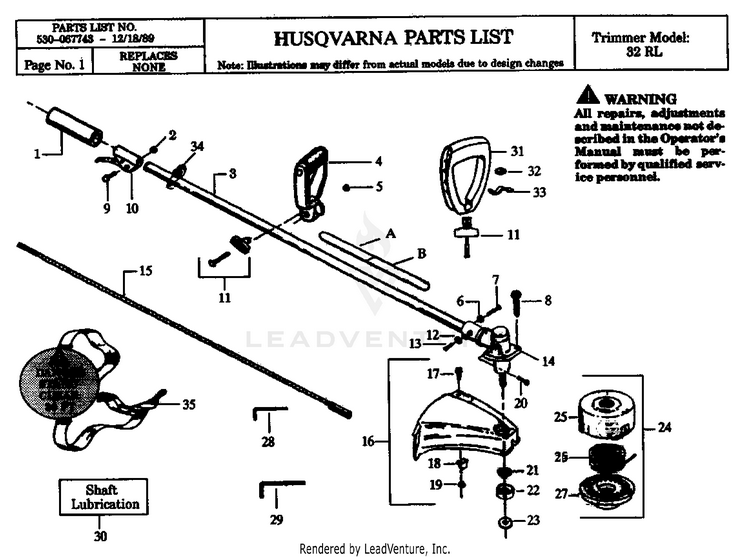

SHAFT & HANDLE

...
...
25
ASSY-HUB SHAFT & BAL AR HUS-530094759
...
20
Screw HUS-530094616
...
32
NUT (1/4-20) HUS-530015610
...
3
ASSY-DRIVE SHAFT HSG (5 HUS-530094898
...
A
Shaft Warning Decal (Upper) HUS-530029165
...
34
ASSY-CLAMP HARNESS HUS-530094686
...
27
COVER HUS-530094494
...
530 06 77-42
Operator's Manual HUS-530067742
...
13
SCREW-10-24 X 7/16 (HEX HUS-530094612
...
6
NUT HUS-530015197
...
15
SHAFT-FLEX (53.5") HUS-530094585
...
8
SCREW-1/4-20X1 HEX SOC HUS-530001711
...
29
HEX KEY 3/16" HUS-530031098
...
12
LOCKWASHER-LOCATOR-TYPE 2 HUS-530015328
...
17
SCREW HUS-530015037
...
35
STRAP-SHOULD.W/WARNING HUS-530094417
...
1
DRIVE SHAFT GRIP HUS-530029445
...
10
ASSY-THROTTLE HOUSING HUS-530010959
...
2
LOCKNUT-HEX 10-24 HUS-530015768
...
21
SEAL HUS-530094640
...
7
Lockwasher HUS-530001542
...
33
CLAMP-ASSIST HANDLE HUS-530094742
...
31
ASSY-HANDLE HUS-530014222
...
18
LIMITER-LINE HUS-530094570
...
B
Shaft Warning Decal (Lower) HUS-530029166
...
4
ASSY-DRIVE SHAFT HSG (5 HUS-530094898
...
23
WASHER-GRASS HUS-530094571
...
16
KIT-SHIELD HUS-530069256
...
30
HUS-952708514
...
19
NUT HEX LOCK 10-24 HUS-530403094
...
28
HEX WRENCH 5/32 HUS-530031159
...
22
DUST CUP HUS-530094639
...
24
TRIMMY HIT W-3/8-24 LHT ARBOR HUS-695000376
...
5
Handle Ass'y. HUS-530010957
...
9
SCREW 1/4-10 PLASTITE HUS-530015790
...
26
Spool w/Line HUS-952708528
...
11
HANDLE KIT HUS-530069347
...
14
GEAR BOX REPLACEMENT KIT HUS-530071781
...
...
...
