Husqvarna 32 LCN (1991-01) Line Trimmer

Model: 32 LCN (1991-01)

Save Part Not Listed?

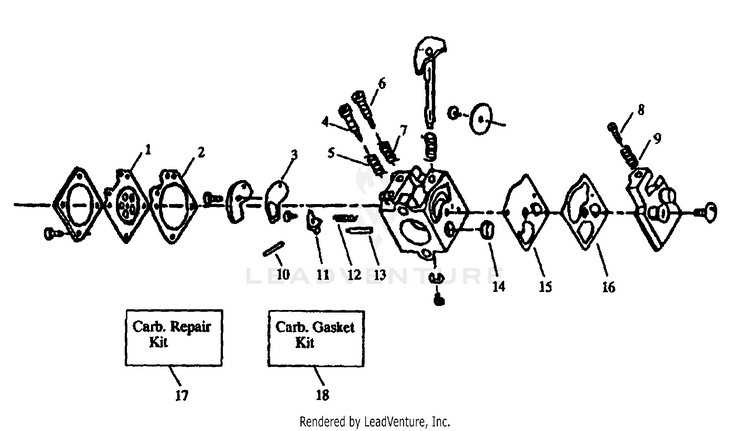

Carburetor

DIAPHRAGM Included in Carb. Kwik Repair Kit, P/N 530035260; Included in Carb. Gasket/Diaphragm Kit, P/N 530035185 HUS-503896701

GASKET-METER DIAP Included in Carb. Kwik Repair Kit, P/N 530035260; Included in Carb. Gasket/Diaphragm Kit, P/N 530035185 HUS-530035151

GASKET Included in Carb. Kwik Repair Kit, P/N 530035260; Included in Carb. Gasket/Diaphragm Kit, P/N 530035185 HUS-501781301

H-NEEDLE HUS-501782201

Hi Speed Needle Spring HUS-530035036

NEEDLE - IDLE HUS-530035141

SPRING-NEEDLE FUEL MIX HUS-530035023

SCREW-IDLE SPEED HUS-530035203

IDLE SCREW SPRING HUS-530035121

FULCRUM PIN Included in Carb. Kwik Repair Kit, P/N 530035260 HUS-505520125

LEVER Included in Carb. Kwik Repair Kit, P/N 530035260 HUS-505520127

SPRING-METERING LEVER Included in Carb. Kwik Repair Kit, P/N 530035260 HUS-530035188

VALVE/INLET. Included in Carb. Kwik Repair Kit, P/N 530035260 HUS-503117001

SCREEN-DUTCH TWILL INLE Included in Carb. Kwik Repair Kit, P/N 530035260 HUS-530035178

PUMP DIAPHRAGM Included in Carb. Kwik Repair Kit, P/N 530035260; Included in Carb. Gasket/Diaphragm Kit, P/N 530035185 HUS-504130807

GASKET Included in Carb. Kwik Repair Kit, P/N 530035260; Included in Carb. Gasket/Diaphragm Kit, P/N 530035185 HUS-504130906

REPAIR KIT (Includes ref. no's. 1, 2, 3, 11, 12, 13,14, 15, 16) HUS-530035260

KIT-KWIK REPAIR (Includes ref. no's. 1, 2, 3, 15, 16) HUS-530035185
