product name

Husqvarna 32 L (1996-10) Line Trimmer

Model: 32 L (1996-10)

Save
 Part Not Listed?Part Not Listed?
product name

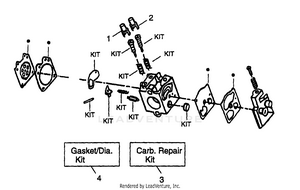

Carburetor Assembly

...
...
1
LIMITER CAP (LOW-BLUE) HUS-530038317
...
2
LIMITER CAP (HIGH-RED) HUS-530038318
...
3
CARB REPAIR KIT (Contents Denoted on Image) HUS-530069829
...
4
GASKET/DIAPHRAGM KIT (Contents Denoted on Image) HUS-530069844
...
xx
CARBURETOR (WA-298A) HUS-530069641

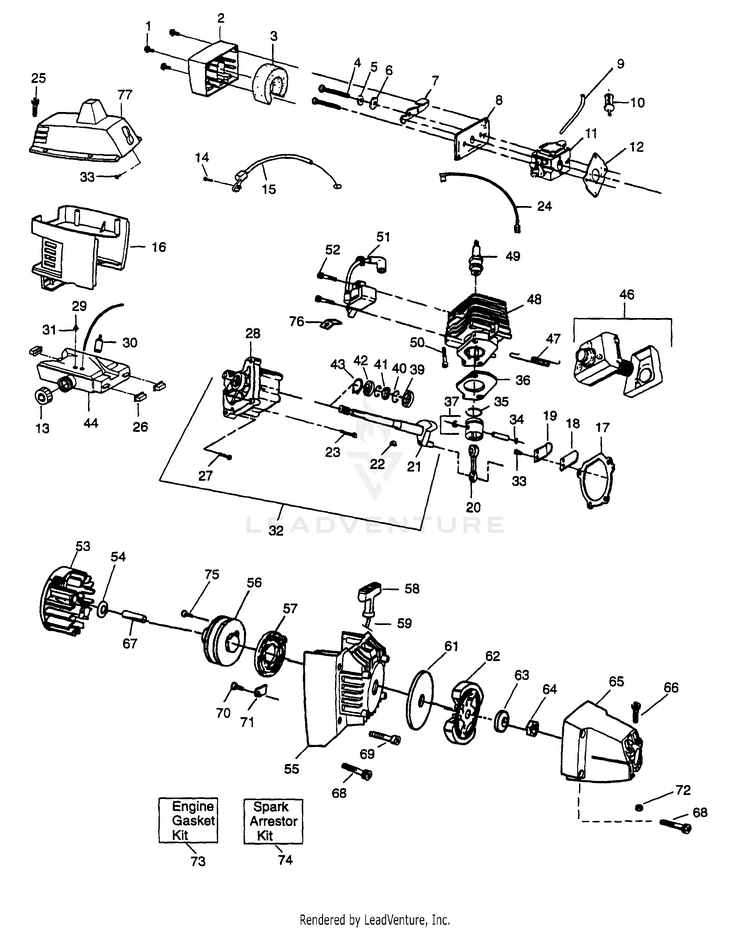

Engine Assembly

...
...
1
SCREW-10-24 X 13/16 HUS-530015773
...
2
FILTER COVER HUS-530038081
...
3
AIR FILTER HUS-530027530
...
4
SCREW HUS-530015849
...
5
CHOKE SPACER HUS-530015852
...
6
WASHER HUS-530015254
...
7
Choke Shutter HUS-530029114
...
8
Air Filter Plate HUS-530029632
...
9
HOSE. FUEL HUS-530069247
...
10
FUEL PICK-UP ASSY HUS-530095646
...
11
CARBURETOR (WA-298A) HUS-530069641
...
12
GASKET-CARB (Included in Engine Gasket Kit P/N 530069302) HUS-530019164
...
13
CAP ASSY W/ RETAINER HUS-530014347
...
14
SCREW 8-16 X 9/16 (PLAS HUS-530015775
...
15
THROTTLE CABLE HUS-530047041
...
16
SHROUD HUS-530037859
...
17
GASKET-C'CASE/SHROUD (Included in Engine Gasket Kit P/N 530069302) HUS-530019154
...
18
VALVE-REED HUS-530027593
...
19
REED STOP HUS-530027594
...
20
ASS'Y-CONNECTING ROD (Incl. Bearings) HUS-530010960
...
21
ASSY-CRANKSHAFT HUS-530010934
...
22
KEY-FLYWHEEL HUS-530015126
...
23
SCREW-10-24 X 1" (TAP.) HUS-530015772
...
24
ASSY-WIRE LEAD (BLACK) HUS-530029777
...
25
SCREW-10-14 X 13/16 (PL HUS-530015886
...
26
ISOLATOR HUS-530029760
...
27
SCREW 1/4-20 X 7/8 (TAP HUS-530015771
...
28
Crankcase Ass'y. (Incl. #39,40,41, & 42) HUS-530014016
...
29
VALVE-CHECK (DUCKBILL) HUS-530026119
...
30
FILTER HUS-530029717
...
31
Retainer HUS-530029696
...
32
CRANKCASE/CRANKSHAFT, (#38,39,40,41,42,& 43) HUS-530071705
...
33
SCREW 6-19X.437 HUS-545227101
...
34
WRIST PIN RET. HUS-530015162
...
35
RING-PISTON (HOOKED) HUS-530025875
...
36
GASKET CYL W/ ADHESIVE (Included in Engine Gasket Kit P/N 530069302) HUS-530019267
...
37
KIT-PISTON (32CC) (Incl. #34,35 & pin) HUS-530069277
...
39
Inner Bearing HUS-530032103
...
40
RING-RETAINING HUS-530015787
...
41
SEAL-CRANKSHAFT HUS-530019158
...
42
BEARING-R8 (OUTER) HUS-530032102
...
43
RING-RETAINING (SHAFT) HUS-530015789
...
44
Fuel Tank Ass'y. (Incl. 29-31) HUS-530014278
...
46
KIT-MUFFLER HUS-530069310
...
47
SPRING-MUFFLER HUS-530036409
...
48
CYLINDER HUS-530071581
...
49
BPMR6A NGK SPARK PLUG HUS-503235112
...
50
SCREW 1/4-20 X 7/8 HUS-530001624
...
51
IGNITION. HUS-530039146
...
52
KEY-FLYWHEEL HUS-530015126
...
53
FLYWHEEL HUS-530039189
...
54
WASHER HUS-530016030
...
55
FAN HSG. ASSY. HUS-530014320
...
56
STARTER PULLEY (Incl. #75) HUS-530071387
...
57
STARTER SPRING HUS-545008010
...
58
STARTER HANDLE GRAY HUS-530150318
...
59
KIT-ROPE HUS-530069232
...
61
WASHER-CLUTCH HUS-530094189
...
62
KIT-CLUTCH ASS'Y HUS-530069254
...
63
WASHER-BELLEVILLE HUS-530015796
...
64
NUT HUS-530001733
...
65
CLUTCH HSG. HUS-530014324
...
66
SCREW-10-24 X 1-3/8 (UN HUS-530015767
...
67
SPACER-CLUTCH HUS-530027511
...
68
Screw HUS-530015770
...
69
SCREW-10-24X1-3/8-TAPTI HUS-530015769
...
70
SCREW-10-16 X 1/2 HI-LO HUS-530015496
...
71
RETAINER HUS-530027523
...
72
LOCKNUT-HEX 10-24 HUS-530015768
...
73
GASKET KIT (Includes Ref. Nos. 12, 17 & 36) HUS-530069302
...
74
Spark Arrestor Kit HUS-952701612
...
75
SCREW HUS-530016080
...
76
TAB-45 DEGREE ELECTRICAL HUS-530025995
...
77
TOP COVER SWITCH KIT HUS-530069358
...
xx
Operator Manual Not Shown HUS-530084055
...
xx
DECAL GAS TRIMMER PARTS INSTRU Not Shown HUS-530038737
...
xx
Type 2 Not Shown HUS-530036740

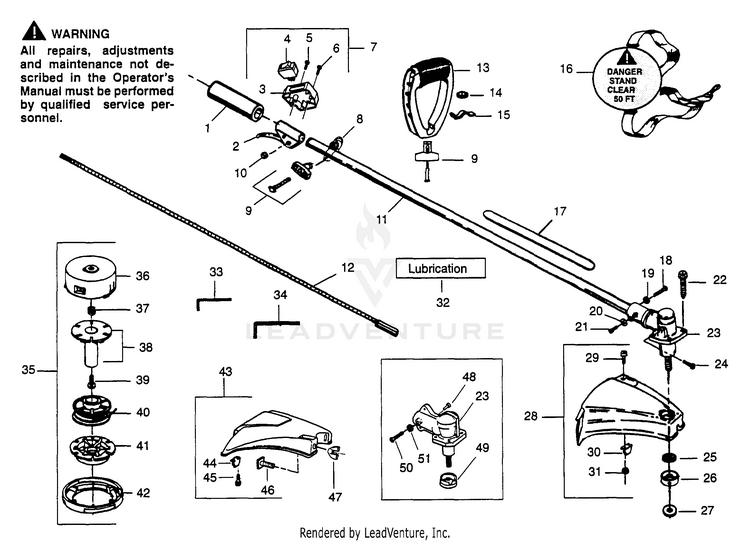

General Assembly

...
...
1
GRIP HUS-530029762
...
2
THROTTLE HOUSING ASSEMBLY HUS-530014372
...
3
COVER-KILL SWITCH (GRAY) HUS-530029758
...
4
Switch HUS-530429776
...
5
SCREW 10-24X1-5/8 HUS-530015933
...
6
SCREW-8-16X3/8 (PLASTIC) HUS-530015932
...
7
TOP COVER SWITCH KIT (Incl. 3-6 & p.2 #'s 24,76, & 77) HUS-530069358
...
8
ASSY-CLAMP HARNESS HUS-530094686
...
9
HANDLE KIT HUS-530069347
...
10
LOCKNUT-HEX 10-24 HUS-530015768
...
11
DRIVE SHAFT HOUSING HUS-530094684
...
11
KIT DRIVE SHAFT New part for this IPL HUS-530069782
...
12
SHAFT-FLEX (53.5") HUS-530094585
...
13
ASSY-HANDLE HUS-530014222
...
14
NUT (1/4-20) HUS-530015610
...
15
CLAMP-ASSIST HANDLE HUS-530094742
...
16
STRAP-SHOULD.W/WARNING HUS-530094417
...
17
Shaft Warning Decal HUS-530038908
...
18
SCREW-1/4-20X1 HEX SOC HUS-530001711
...
19
LOCKWASHER HUS-530001642
...
20
LOCKWASHER-LOCATOR-TYPE 2 HUS-530015328
...
21
SCREW-10-24 X 7/16 (HEX HUS-530094612
...
22
SCREW - SHIELD HUS-530016107
...
23
GEAR BOX REPLACEMENT KIT HUS-530071781
...
23
GEARBOX New part for this IPL HUS-530071585
...
24
Screw HUS-530094616
...
25
SEAL HUS-530094640
...
26
DUST CUP HUS-530094639
...
27
WASHER-GRASS HUS-530094571
...
28
KIT-SHIELD (Incl, 29-31) HUS-530069256
...
29
SCREW HUS-530015037
...
30
LIMITER-LINE HUS-530094570
...
31
NUT HEX LOCK 10-24 HUS-530403094
...
32
GREASE 1/2 FL. OZ. TUBE HUS-952030139
...
33
HEX WRENCH 5/32 HUS-530031159
...
34
HEX KEY 3/16" HUS-530031098
...
35
TRIMMY HIT W-3/8-24 LHT ARBOR (Incl. 36-42) HUS-695000376
...
36
SST25 WEEDEATER TRIMMER HEAD HUS-952711550
...
37
SPRING-COMPRESSION HUS-530094956
...
38
KIT-LOCKING PLATE HUS-530069312
...
39
Screw HUS-530015542
...
40
Spool w/Line HUS-530494539
...
41
Release Button HUS-530094522
...
42
COVER,TRIMMY HEAD-26RLC HUS-530094521
...
43
SHIELD KIT ASS'Y, TYPE 2 (Incl. 44-47) New part for this IPL HUS-530069779
...
44
LINE LIMITER, TYPE 2 New part for this IPL HUS-530095387
...
45
SCREW-10-14 X 1/2 PLASTITE New part for this IPL HUS-530015805
...
46
BOLT, TYPE 2 New part for this IPL HUS-530015820
...
47
NUT-"D" HANDLE New part for this IPL HUS-530091373
...
48
SCREW-PINCH CLAMP-TYPE 2 New part for this IPL HUS-530015650
...
49
DUST CAP - TYPE 2 New part for this IPL HUS-530016166
...
50
SCREW - LOCATOR - TYPE 2 New part for this IPL HUS-530016140
...
51
LOCKWASHER-LOCATOR-TYPE 2 New part for this IPL HUS-530015328
...
...
...
