Husqvarna 316 (20033100001-Current) Electric Chain Saw

Model: 316 (20033100001-Current)

Save
Part Not Listed?Part Not Listed?
product name

ACCESSORIES

...
...
508 03 80-02

...
501 83 44-09
HUS SCABBARD 13-16" HUS-596703701

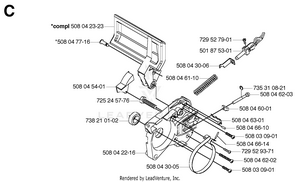

CHAIN BRAKE

...
...
501 87 53-01
KNEE-JOINT HUS-501875301

...
729 52 79-01

...
508 04 22-16

...
508 03 09-01

...
735 31 08-21
SNAP RING HUS-735310821

...
508 04 23-23
HANDGUARD HUS-508042323

...
508 04 61-10

...
508 04 66-14

...
508 04 60-01
CHAIN TENSIONER HUS-508046001

...
508 04 62-03

...
508 04 62-02

...
508 04 66-10

...
738 21 01-02
BALL BEARING HUS-738210102

...
508 04 77-16

...
508 04 30-05
BRAKE BAND HUS-508043005

...
508 04 30-06

...
725 24 57-76

...
508 04 54-01
INSULATOR HUS-508045401

...
729 52 93-71

...
508 04 63-01

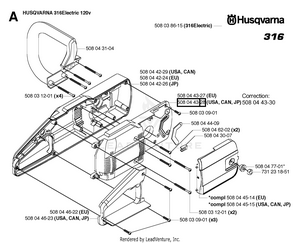

CHASSIS / FRAME

...
...
508 04 44-09

...
508 04 31-04
FRONT HANDLE HUS-505034501

...
508 04 62-02

...
508 04 42-24
Housing EU HUS-508044224

...
508 04 46-23
HANDLE USA, CAN, JP HUS-508044623

...
508 04 46-22
Handle EU HUS-508044622

...
508 03 86-15
DECAL 316ELECTRIC HUS-508038615

...
731 23 18-51

...
508 04 43-27

...
508 04 45-14

...
508 03 09-01

...
508 04 30-07

...
508 03 12-01

...
508 04 43-30
HOUSING CORRECTION: HUS-508044330

...
508 04 45-15
CHAIN BRAKE COVER USA, CAN, JP HUS-508044515

...
508 04 77-01

...
508 04 42-29
HOUSING USA, CAN HUS-508044229

...
508 03 09-01

...
508 03 12-01

...
508 04 42-26
MOTOR HOUSING JP HUS-508044226

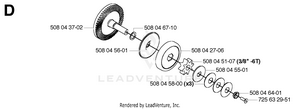

CLUTCH

...
...
508 04 55-01

...
508 04 67-10

...
508 04 64-01

...
508 04 51-07
GEAR 3/8 -6T HUS-508045107

...
725 63 29-51

...
508 04 37-02
OIL GEAR WHEEL HUS-508043702

...
508 04 58-00

...
508 04 27-06
CLUTCH DRUM HUS-508042706

...
508 04 56-01

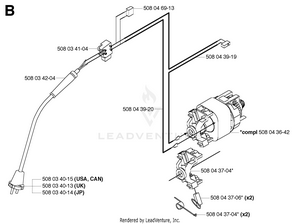

ELECTRICAL

...
...
508 03 40-15
CABLE USA, CAN HUS-508034015

...
508 04 37-04
BRUSH HOLDER / BRACKET HUS-508043704

...
508 03 40-14

...
508 03 41-04

...
508 03 40-13

...
508 04 39-19
MICRO SWITCH HUS-508043919

...
508 04 37-06

...
508 04 37-04
BRUSH HOLDER / BRACKET HUS-508043704

...
508 04 36-42

...
508 04 39-20
Cable Assy HUS-508043920

...
508 04 69-13
CAPACITOR HUS-508046914

...
508 03 42-04

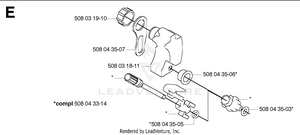

OIL TANK

...
...
508 04 35-03

...
508 04 35-06
PUMP SEAL HUS-508043506

...
508 03 18-11
OIL TANK (FIELD FIX) HUS-508031820

...
508 04 35-05

...
508 04 35-07

...
508 04 33-14
PUMP ASSY HUS-508043314

...
508 03 19-10
...
...
...
