Husqvarna 3120K (2000-02) Power Cutter

Model: 3120K (2000-02)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

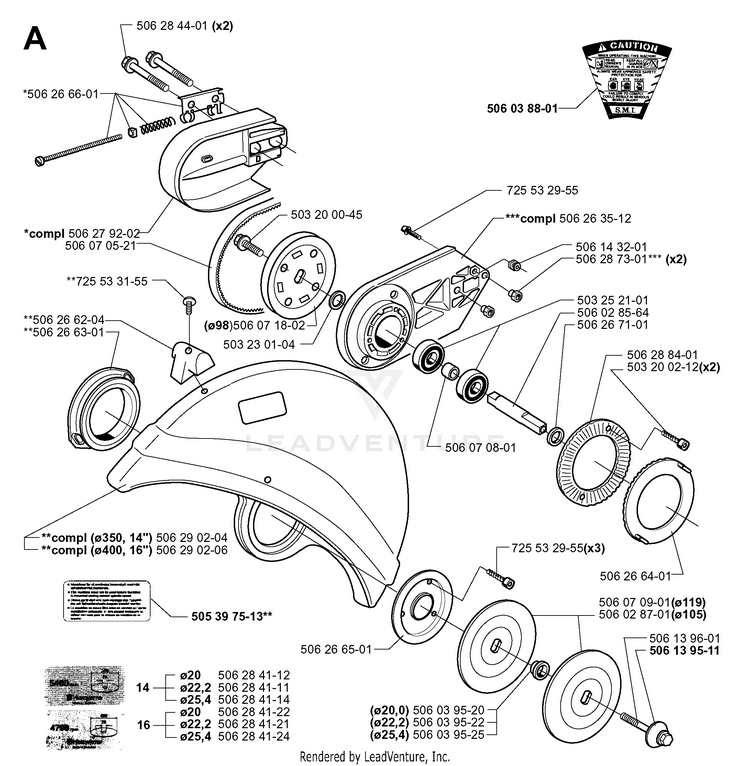

CUTTING ARM & BLADE GUARD

...
...
506 28 84-01
FLANGE HUS-506288401
...
506 28 41-24
ARBOR SIZE DECAL/25.4 DIA.25,4 HUS-506284124
...
506 28 41-12
ARBOR SIZE DECAL/20 DIA.20 HUS-506284112
...
503 20 02-12
SCREW HUS-503200712
...
506 26 71-01
SLEEVE HUS-506324801
...
725 53 29-55
SCREW MC6S 5X16 HUS-725532955
...
506 03 88-01
Warning Label HUS-506038801
...
506 26 66-01
TENSIONER HUS-506266603
...
503 23 01-04
WASHER 15X21 HUS-503230104
...
506 02 85-64
SHAFT HUS-506298363
...
506 27 92-02
BELT GUARD HUS-506279206
...
506 26 35-12
HOUSING HUS-506263512
...
506 03 95-20
BUSHING DIA.20,0 HUS-506379620
...
506 03 95-22
BUSHING DIA.22,2 HUS-506379622
...
506 13 96-01
SCREW HUS-581855201
...
506 14 32-01
CATCH HUS-506143201
...
506 29 02-06
WHEEL GUARD ASSY, 16" GREY DIA.400, 16 HUS-506340546
...
506 26 64-01
FLANGE HUS-506266401
...
506 26 63-01
LINING HUS-506266302
...
506 03 95-25
BUSHING DIA.25,4 HUS-578398201
...
506 28 41-21
Arbor Size Decal/22.2 Dia. - 16" DIA.22,2 HUS-506284121
...
506 28 41-22
ARBOR SIZE DECAL/20 DIA.20 HUS-506284122
...
503 20 00-45
SCREW HUS-503200045
...
725 53 31-55
SCREW ITXSCM HUS-525824902
...
506 28 41-14
ARBOR SIZE DECAL/25.4 DIA.25,4 HUS-506284114
...
503 25 21-01
BALL BEARING HUS-503252101
...
506 29 02-04
WHEEL GUARD ASSY DIA.350, 14 HUS-506340544
...
506 26 65-01
FLANGE HUS-506266501
...
506 02 87-01
WASHER DIA.105 HUS-506028701
...
506 07 09-01
FLANGE WASHER DIA.119 HUS-506070903
...
506 26 62-04
HANDLE HUS-506344602
...
506 13 95-11
WASHER HUS-506139511
...
505 39 75-13
Information Label HUS-505397513
...
725 53 29-55
SCREW MC6S 5X16 HUS-725532955
...
506 28 41-11
Arbor Size Decal/22.2 Dia. - 14" DIA.22,2 HUS-506284111
...
506 07 05-21
BELT HUS-506372721
...
506 07 18-02
PULLEY DIA.98 HUS-506354701
...
506 28 44-01
BOLT HUS-506284401
...
506 28 73-01
NUT HUS-506287301
...
506 07 08-01
SPACER HUS-506070801
...
...
...
