Husqvarna 3120K (1999-04) Power Cutter

Model: 3120K (1999-04)

Back To Assemblies

Save Part Not Listed?
product name

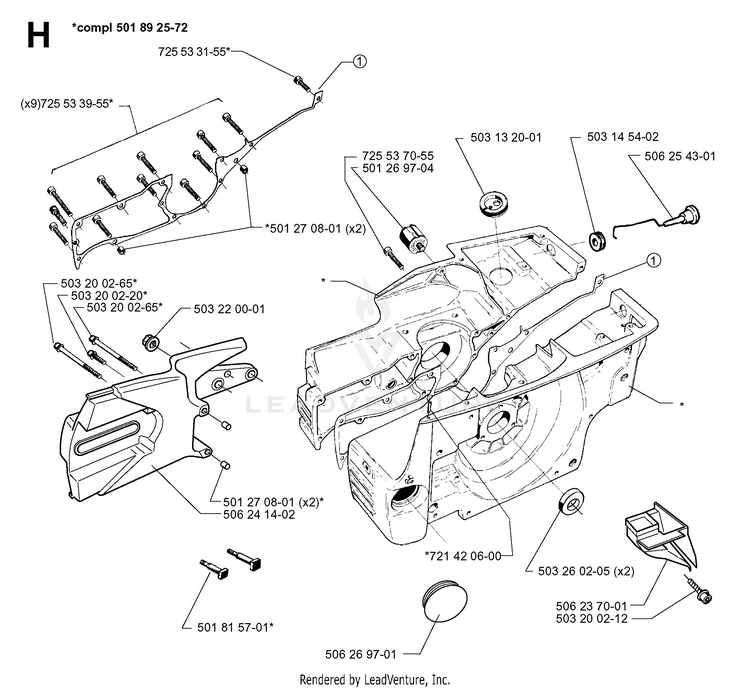

CRANKCASE

...
...
501 26 97-04
ANTIVIBRATION ELEMENT HUS-501269705
...
506 25 43-01
CHOKE CONTROL HUS-506254301
...
503 26 02-05
SEALING RING HUS-503260205
...
725 53 70-55
SCREW MC6S 6X20 HUS-725537055
...
506 26 97-01
COVER HUS-506269701
...
725 53 31-55
SCREW ITXSCM HUS-525824902
...
503 20 02-12
SCREW HUS-503200712
...
506 24 14-02
Cutter HUS-596823402
...
501 27 08-01
GUIDE BUSHING HUS-593806001
...
506 23 70-01
JET HUS-506237001
...
503 22 00-01
NUT M8 FLANGE HUS-503220001
...
501 81 57-01
BOLT HUS-501815701
...
503 13 20-01
GROMMET HUS-503132001
...
503 20 02-65
SCREW HUS-503200265
...
501 89 25-72
CRANKCASE HUS-501892572
...
721 42 06-00
PIN HUS-721420600
...
503 14 54-02
GROMMET HUS-503145402
...
725 53 39-55
SCREW MC6S 5X40 HUS-725533955
...
503 20 02-20
SCREW HUS-503200220
