Husqvarna 3120K (1999-04) Power Cutter

Model: 3120K (1999-04)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

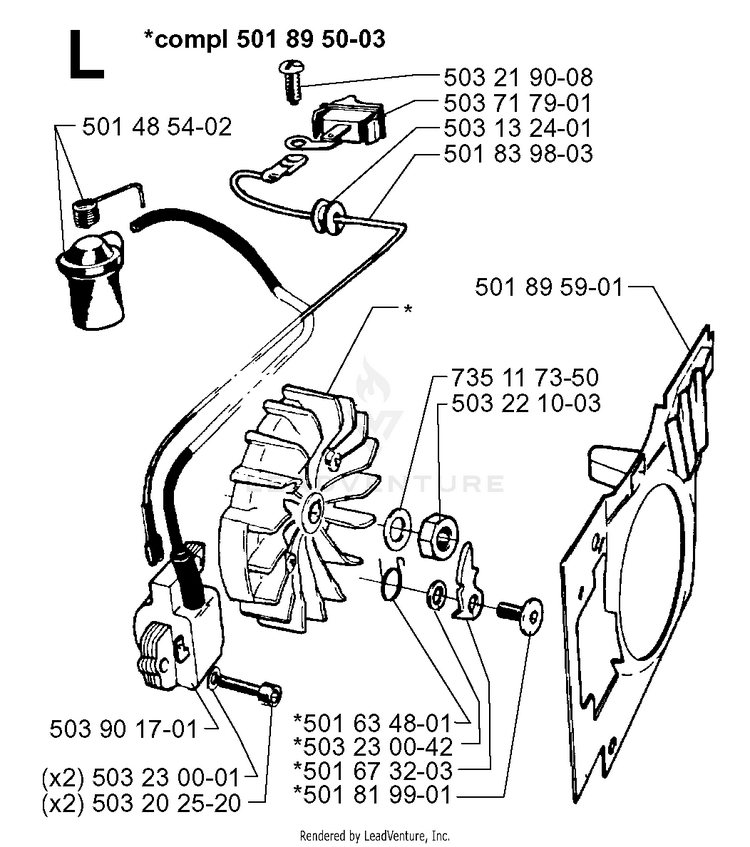

IGNITION SYSTEM

...
...
501 63 48-01
SPRING HUS-501634801
...
503 20 25-20
SCREW HUS-503202520
...
501 48 54-02
SPARK PLUG CONN. KIT HUS-501485402
...
503 13 24-01
GROMMET HUS-503132401
...
503 23 00-42
WASHER HUS-503230042
...
501 89 50-03
FLYWHEEL ASSY HUS-522892003
...
503 23 00-01
WASHER 4.2X9 HUS-503230001
...
501 89 59-01
AIR CONDUCTOR HUS-501895901
...
503 90 17-01
IGNITION MODULE HDS3 HUS-587329402
...
501 81 99-01
SCREW M5X14 HUS-501819901
...
501 83 98-03
LEAD HUS-501839803
...
501 67 32-03
PAWL HUS-501673203
...
503 21 90-08
SCREW HUS-503205508
...
503 22 10-03
NUT M10X1 HUS-503221003
...
503 71 79-01
SWITCH ON/OFF HUS-503717901
...
735 11 73-50
SPRING WASHER 10.5X18 HUS-735117350
