Husqvarna 3120 XP - 3120 XP EPA (20180900001-20182200000) Chain Saw

Model: 3120 XP / EPA (20180900001-20182200000)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

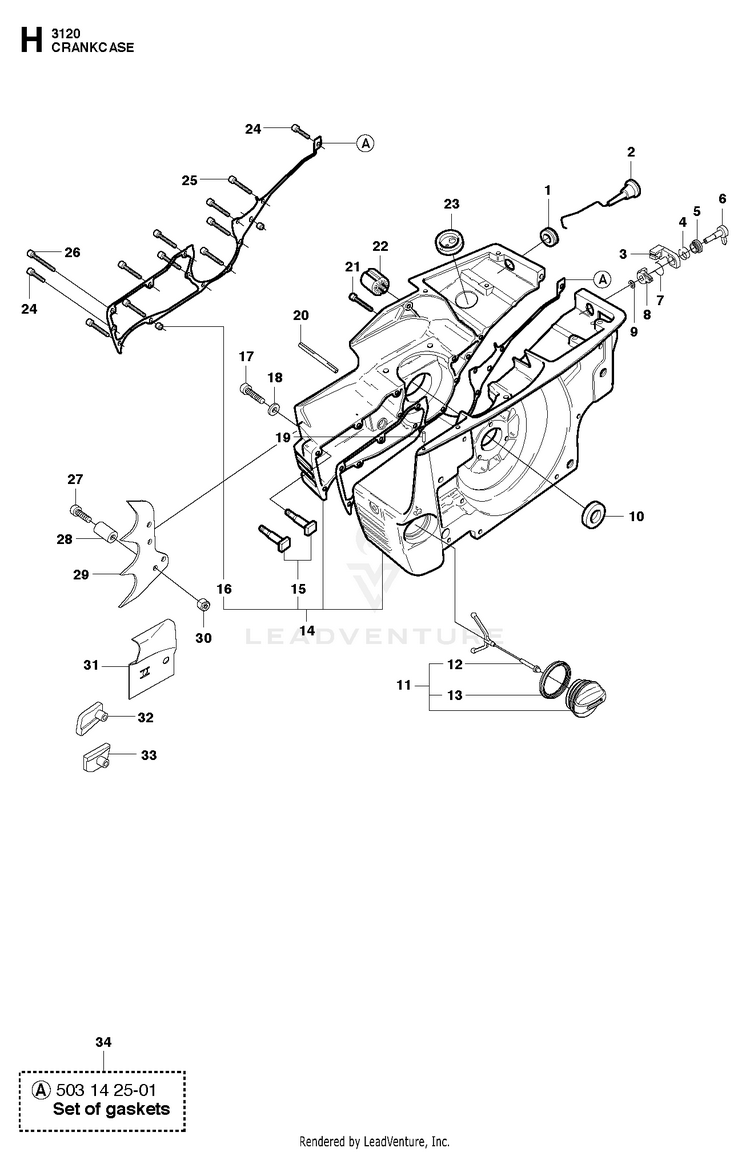

CRANKCASE

...
...
25
SCREW MC6S 5X40 HUS-725533955
...
27
SCREW MC6S 5X12 HUS-725532755
...
14
CRANKCASE W/BEARINGS HUS-501892501
...
20
TANK VENT HUS-503134301
...
4
SPRING HUS-503140001
...
3
BRACKET HUS-501898301
...
7
SPRING HUS-501898501
...
32
CHAIN GUIDE HUS-503141401
...
5
SCREW HUS-501898601
...
10
SEALING RING HUS-503260205
...
17
SCREW MC6S 5X25 HUS-725533355
...
31
PLATE HUS-503142601
...
29
FELLING DOG INNER HUS-503139201
...
9
E-RING 5 HUS-735310920
...
15
BOLT HUS-501815701
...
33
CHAIN GUIDE HUS-503141501
...
24
SCREW ITXSCM HUS-525824902
...
26
SCREW MC6S 5X60 HUS-725534355
...
21
SCREW MC6S 6X20 HUS-725537055
...
34
GASKET SET Set of gaskets HUS-503142501
...
11
TANK CAP HUS-537215207
...
18
Washer 7/32 x 1/2 x 16 Gauge HUS-819070816
...
30
NUT HUS-503222401
...
13
SEALING HUS-589241101
...
16
GUIDE BUSHING HUS-593806001
...
22
ANTIVIBRATION ELEMENT HUS-501269705
...
6
KNOB HUS-501898402
...
28
CHAIN CATCHER HUS-503447801
...
8
ARM HUS-503138201
...
1
GROMMET HUS-503145402
...
19
PIN HUS-501462401
...
12
TANK LOCK HUS-503578901
...
2
CHOKE CONTROL CPL HUS-503145202
...
23
GROMMET HUS-503132001
...
...
...
...
...
