Husqvarna 3120 XP - 3120 XP EPA (20180900001-20182200000) Chain Saw

Model: 3120 XP / EPA (20180900001-20182200000)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

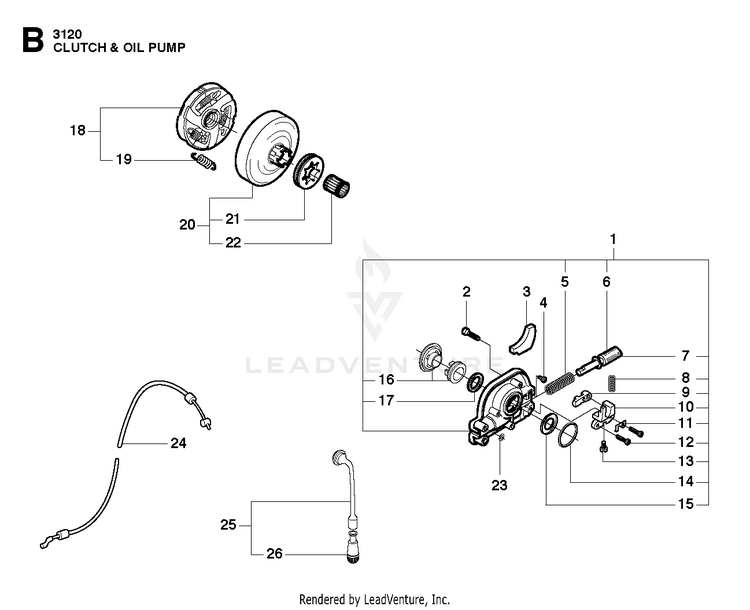

CLUTCH & OIL PUMP

...
...
26
OIL SCREEN HUS-501544102
...
4
SCREW 4X5 HUS-723228485
...
16
WHEEL HUS-503896201
...
13
SCREW HUS-501897601
...
5
RECOIL SPRING HUS-501897801
...
6
WASHER HUS-503230045
...
10
BRACKET HUS-501897501
...
20
CLUTCH DRUM .404x7 HUS-503143204
...
24
WIRE CPL HUS-501898702
...
17
WASHER HUS-503230058
...
9
ARM HUS-503133701
...
21
22270 RIMSPROCKET HUS-501597902
...
12
Screw HUS-723129151
...
14
O-RING HUS-740422200
...
8
SPRING HUS-501893702
...
2
SCREW HUS-503202620
...
23
O-RING HUS-740430100
...
11
SPRING HUS-501893601
...
18
CLUTCHES HUS-503144903
...
25
OIL HOSE HUS-501893301
...
19
CLUTCH SPRING HUS-503145101
...
1
OIL PUMP HUS-501897071
...
3
SEALING HUS-503139901
...
7
PUMP PLUNGER HUS-503138401
...
15
SEALING RING HUS-503260205
...
22
SUPPORT BUSHING HUS-503253001
...
...
...
...
...
