Husqvarna 3120 XP - 3120 XP EPA (20180900001-20182200000) Chain Saw

Model: 3120 XP / EPA (20180900001-20182200000)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

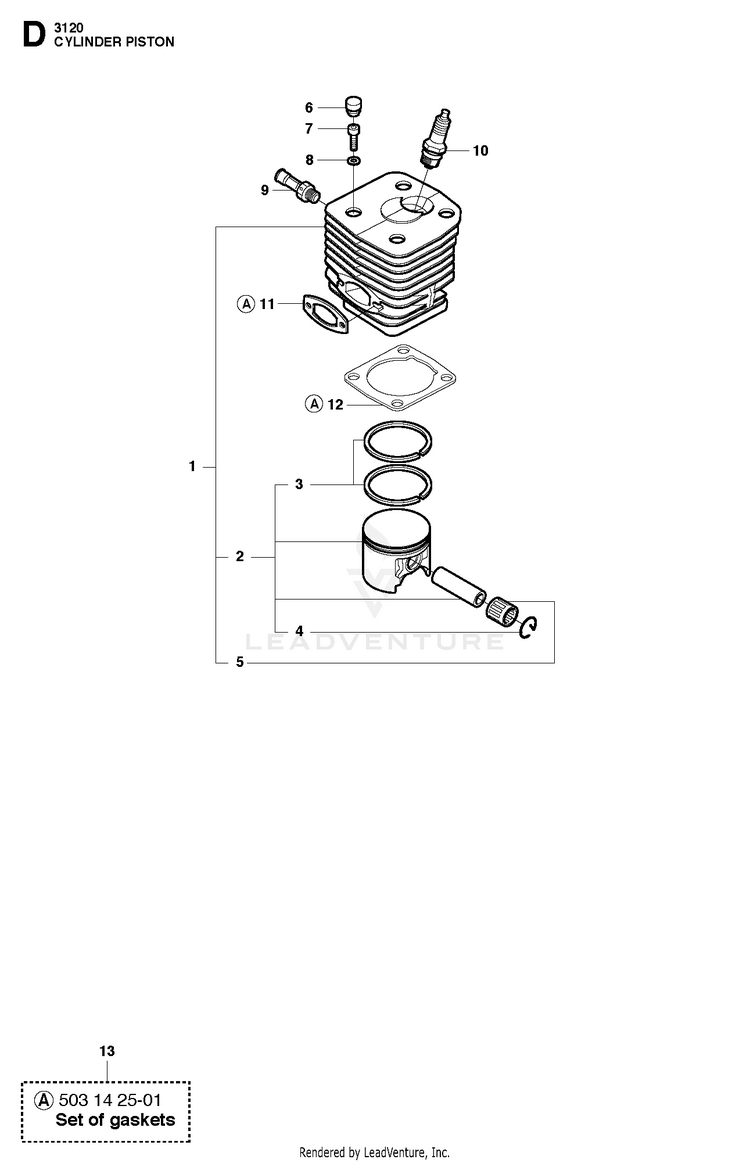

CYLINDER PISTON

...
...
6
RUBBER BUMPER HUS-501515401
...
9
VALVE HUS-503665601
...
12
GASKET HUS-503134601
...
7
SCREW HUS-503216025
...
2
PISTON CPL HUS-501894103
...
4
CLIP HUS-737441300
...
10
SPARK PLUG M14X1.25 NGK BPMR7A RCJ 7Y HUS-503235111
...
3
PISTON RING HUS-503289026
...
1
CYLINDER ASSY HUS-576270003
...
5
SUPPORT BUSHING HUS-503132901
...
11
GASKET HUS-503131301
...
8
WASHER 6.5X11 HUS-503230005
...
13
GASKET SET Set of gaskets HUS-503142501
...
...
...
...
...
