Husqvarna 3120 XP - 3120 XP EPA (20180900001-20182200000) Chain Saw

Model: 3120 XP / EPA (20180900001-20182200000)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

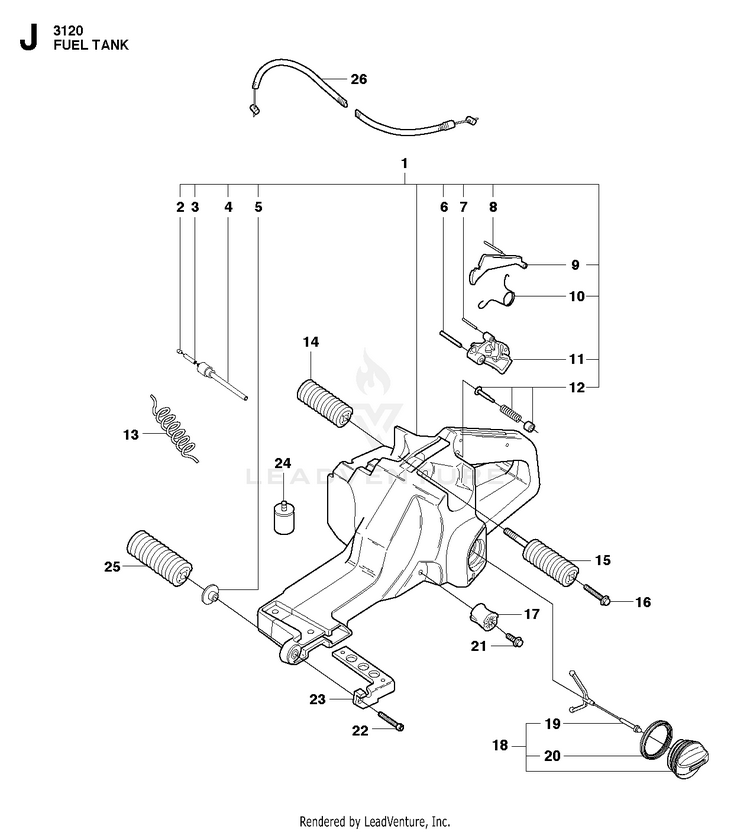

FUEL TANK

...
...
6
PIN 4 X 35 HUS-720127806
...
8
PIN HUS-720182520
...
7
PIN HUS-720182520
...
16
SCREW MC6S 6X16 HUS-725536855
...
1
Tanks HUS-503142109
...
18
TANK CAP HUS-537215207
...
14
ANTIVIBE ELEMENT HUS-503132601
...
22
SCREW MC6S 5X30 HUS-725533555
...
5
BUSHING HUS-503140801
...
20
SEALING HUS-589241101
...
26
THROTTLE WIR KPL HUS-503145501
...
10
SPRING HUS-503131801
...
19
TANK LOCK HUS-503578901
...
2
SINTER PLUG HUS-504357201
...
23
PLATE HUS-503140501
...
24
FUEL FILTER HUS-503517101
...
17
ANTIVIBE ELEMENT Std. HUS-501814702
...
13
KIT HOSE SPIRAL 300 HUS-591375201
...
11
THROTTLE LEVER HUS-503133602
...
9
THROTTLE CATCH HUS-503131602
...
25
ANTIVIBE ELEMENT HUS-503132701
...
12
THROTTLE CATCH,KIT HUS-503142301
...
21
SCREW MC6S 5X12 HUS-725532755
...
17
ANTIVIBE ELEMENT Hard HUS-501814702
...
3
HOSE HUS-581756105
...
4
VENTS HUS-590690601
...
15
ANTIVIBE ELEMENT HUS-503132501
...
...
...
...
...
