Husqvarna 3120 K EPA (2005-05) Power Cutter

Model: 3120 K EPA (2005-05)

Back To Assemblies

Save Part Not Listed?
product name

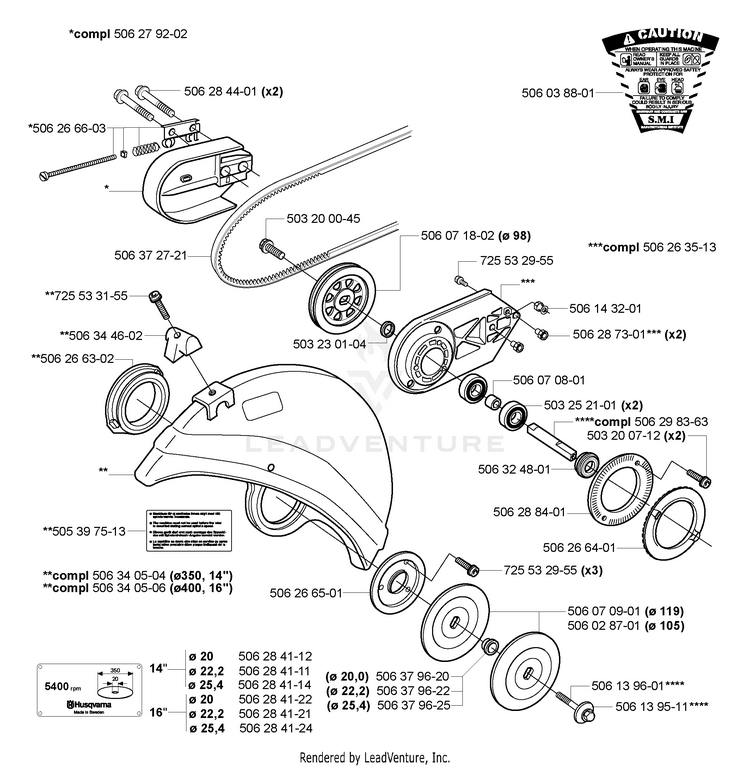

Cutter Arm/Shield

...
...
503200045
SCREW HUS-503200045
...
503200712
SCREW HUS-503200712
...
503230104
WASHER 15X21 HUS-503230104
...
503252101
BALL BEARING HUS-503252101
...
505397513
Information Label HUS-505397513
...
506028701
WASHER HUS-506028701
...
506038801
Warning Label HUS-506038801
...
506070801
SPACER HUS-506070801
...
506070901
FLANGE WASHER HUS-506070903
...
506071802
PULLEY HUS-506354701
...
506139511
WASHER HUS-506139511
...
506139601
SCREW HUS-581855201
...
506143201
CATCH HUS-506143201
...
506263513
BEARING HOUSING HUS-581351707
...
506266302
LINING HUS-506266302
...
506266401
FLANGE HUS-506266401
...
506266501
FLANGE HUS-506266501
...
506266603
TENSIONER HUS-506266603
...
506279202
BELT GUARD HUS-506279206
...
506284111
Arbor Size Decal/22.2 HUS-506284111
...
506284112
ARBOR SIZE DECAL/20 HUS-506284112
...
506284114
ARBOR SIZE DECAL/25.4 HUS-506284114
...
506284121
Arbor Size Decal/22.2 HUS-506284121
...
506284122
ARBOR SIZE DECAL/20 HUS-506284122
...
506284124
ARBOR SIZE DECAL/25.4 HUS-506284124
...
506284401
BOLT HUS-506284401
...
506287301
NUT HUS-506287301
...
506288401
FLANGE HUS-506288401
...
506298363
SHAFT HUS-506298363
...
506324801
SLEEVE HUS-506324801
...
506340504
WHEEL GUARD ASSY HUS-506340544
...
506340506
WHEEL GUARD ASSY, 16" GREY HUS-506340546
...
506344602
HANDLE HUS-506344602
...
506372721
BELT HUS-506372721
...
506379620
BUSHING HUS-506379620
...
506379622
BUSHING HUS-506379622
...
506379625
BUSHING HUS-578398201
...
725532955
SCREW MC6S 5X16 HUS-725532955
...
725533155
SCREW ITXSCM HUS-525824902
