Husqvarna 3120 K (2005-05) Power Cutter

Model: 3120 K (2005-05)

Back To Assemblies

Save Part Not Listed?
product name

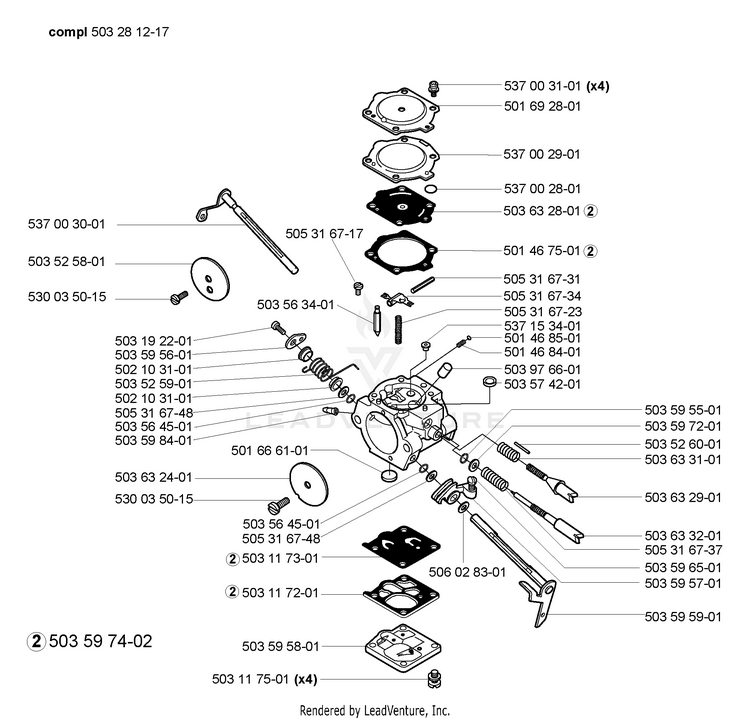

Carburetor Parts

...
...
501467501
GASKET HUS-501467501
...
501468401
SPRING HUS-501468401
...
501468501
BALL HUS-501468501
...
501666101
FUEL INLET SCREEN HUS-501666101
...
501692801
COVER DIAPH HUS-501692801
...
502103101
BUSHING HUS-502103101
...
503117201
GASKET HUS-503117201
...
503117301
DIAPHRAGM/PUMP HUS-503117301
...
503117501
SCREW W/ WASHER HUS-503117501
...
503192201
SCREW HUS-503192201
...
503281217
CARBURETOR WGA WALBRO HUS-503281217
...
503525801
CHOKE SHUTTER HUS-503525801
...
503525901
SPRING,THROTTLE RETURN HUS-503525901
...
503526001
ADJ NEEDLE-LO,CARB HUS-503526001
...
503563401
INLET NEEDLE HUS-503563401
...
503564501
WASHER HUS-503564501
...
503574201
WELCH PLUG HUS-503574201
...
503595501
O-RING HUS-503595501
...
503595601
LEVER HUS-503595601
...
503595701
LEVER HUS-503595701
...
503595801
COVER HUS-503595801
...
503595901
THROTTLE SHAFT HUS-503595901
...
503596501
SCREW HUS-503596501
...
503597201
Washer HUS-503597201
...
503597402
DIAPHRAM SET HUS-503597402
...
503598401
FUEL NIPPLE-CARB HUS-503598401
...
503632401
SHUTTER-THROTTLE HUS-503632401
...
503632801
METERING DIAPHRAGM GSKT HUS-503632801
...
503632901
ADJ SCREW-LO,CARB HUS-503632901
...
503633101
SPRING-MIX NEEDLE HUS-503633101
...
503633201
HI-NEEDLE,CARB HUS-503633201
...
503976601
JET HUS-503976601
...
505316717
SCREW HUS-505316717
...
505316723
LEVER SPRING HUS-505316723
...
505316731
PIN HUS-505316731
...
505316734
LEVER HUS-505316734
...
505316737
PRESSURE SPRING HUS-505316737
...
505316748
SPACER HUS-505316748
...
506028301
WASHER HUS-506028301
...
530035015
SCREW SHUTTERS HUS-530035015
...
537002801
WASHER HUS-537002801
...
537002901
COVER HUS-537002901
...
537003001
SHAFT HUS-537003001
...
537003101
SCREW HUS-537003101
...
537153401
JET HUS-537153401
Schematic Image Zoomed
