Husqvarna 3120 K (2001-06) Power Cutter

Model: 3120 K (2001-06)

Back To Assemblies

Save Part Not Listed?
product name

Crankcase

...
...
501892572
CRANKCASE compl HUS-501892572
...
725533155
SCREW ITXSCM HUS-525824902
...
725533955
SCREW MC6S 5X40 HUS-725533955
...
501269704
ANTIVIBRATION ELEMENT HUS-501269705
...
725537055
SCREW MC6S 6X20 HUS-725537055
...
501270801
GUIDE BUSHING HUS-593806001
...
503200220
SCREW HUS-503200220
...
503200265
SCREW HUS-503200265
...
721420600
PIN HUS-721420600
...
503220001
NUT M8 FLANGE HUS-503220001
...
503200265
SCREW HUS-503200265
...
501270801
GUIDE BUSHING HUS-593806001
...
506241402
Cutter HUS-596823402
...
501815701
BOLT HUS-501815701
...
506269701
COVER HUS-506269701
...
503260205
SEALING RING HUS-503260205
...
503200212
SCREW HUS-503200712
...
506237001
JET HUS-506237001
...
503145402
GROMMET HUS-503145402
...
506254301
CHOKE CONTROL HUS-506254301
...
506292401
GASKET KIT K1260 HUS-506292404
...
503132001
GROMMET HUS-503132001
...
501270801
GUIDE BUSHING HUS-593806001

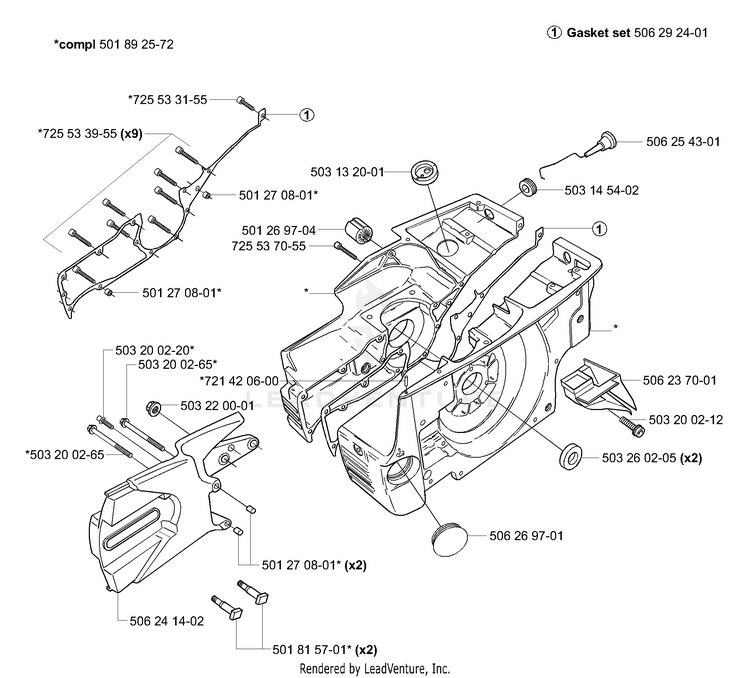

Schematic Image Zoomed
