Husqvarna 3120 (2000-02) Chain Saw

Model: 3120 (2000-02)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

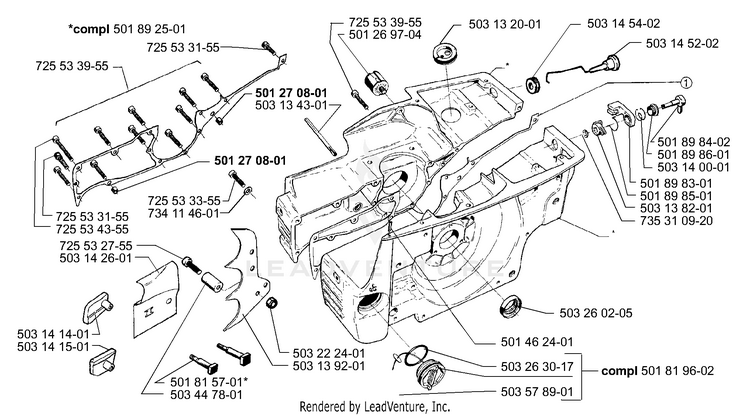

Crankcase

...
...
503132001
GROMMET HUS-503132001
...
503145402
GROMMET HUS-503145402
...
503145202
CHOKE CONTROL CPL HUS-503145202
...
501898402
KNOB HUS-501898402
...
501898601
SCREW HUS-501898601
...
503140001
SPRING HUS-503140001
...
501898301
BRACKET HUS-501898301
...
501898501
SPRING HUS-501898501
...
503138201
ARM HUS-503138201
...
735310920
E-RING 5 HUS-735310920
...
503260205
SEALING RING HUS-503260205
...
501462401
PIN HUS-501462401
...
503263017
O-RING HUS-503263017
...
503578901
TANK LOCK HUS-503578901
...
501819602
TANK CAP HUS-537215207
...
503222401
NUT HUS-503222401
...
503139201
FELLING DOG INNER HUS-503139201
...
501815701
BOLT HUS-501815701
...
503447801
CHAIN CATCHER HUS-503447801
...
503141501
CHAIN GUIDE HUS-503141501
...
503141401
CHAIN GUIDE HUS-503141401
...
503142601
PLATE HUS-503142601
...
725532755
SCREW MC6S 5X12 HUS-725532755
...
725534355
SCREW MC6S 5X60 HUS-725534355
...
725533155
SCREW ITXSCM HUS-525824902
...
734114601
Washer 7/32 x 1/2 x 16 Gauge HUS-819070816
...
725533355
SCREW MC6S 5X25 HUS-725533355
...
501270801
GUIDE BUSHING HUS-593806001
...
503134301
TANK VENT HUS-503134301
...
501270801
GUIDE BUSHING HUS-593806001
...
501892501
CRANKCASE W/BEARINGS HUS-501892501
...
725533155
SCREW ITXSCM HUS-525824902
...
725533955
SCREW MC6S 5X40 HUS-725533955
...
725533955
SCREW MC6S 5X40 HUS-725533955
...
501269704
ANTIVIBRATION ELEMENT HUS-501269705
...
...
...
...
...
