product name

Husqvarna 3120 (2000-02) Chain Saw

Model: 3120 (2000-02)

Back To Assemblies

Save Part Not Listed?
product name

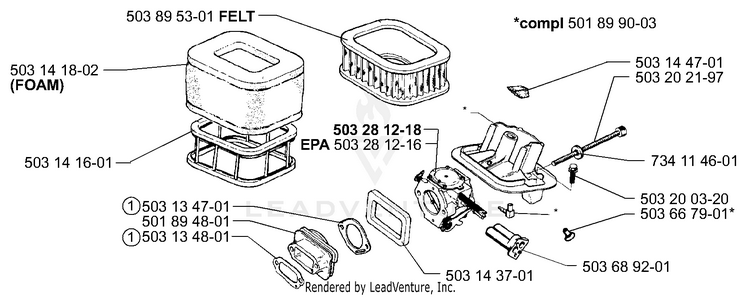

Air Filter/Carburetor

...
...
503895301
AIR FILTER - FELT HUS-503895301
...
501899003
FILTER HOLDER HUS-501899002
...
503144701
GASKET HUS-503144701
...
503202197
SCREW HUS-503202197
...
734114601
Washer 7/32 x 1/2 x 16 Gauge HUS-819070816
...
503200320
SCREW HUS-503200320
...
503667901
GROMMET HUS-503667901
...
503689201
GUIDE HUS-503689201
...
503143701
SEALING HUS-503143701
...
503281218
CARBURETOR HUS-503282001
...
503281216
CARBURETOR WG7 EPA HUS-503281216
...
503134801
GASKET HUS-503134801
...
501894801
SPACER HUS-501894801
...
503134701
GASKET HUS-503134701
...
503141601
FILTERHOLDER CPL HUS-503141601
...
503141802
AIRFILTER HUS-503141802
