Husqvarna 3120 (2000-02) Chain Saw

Model: 3120 (2000-02)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

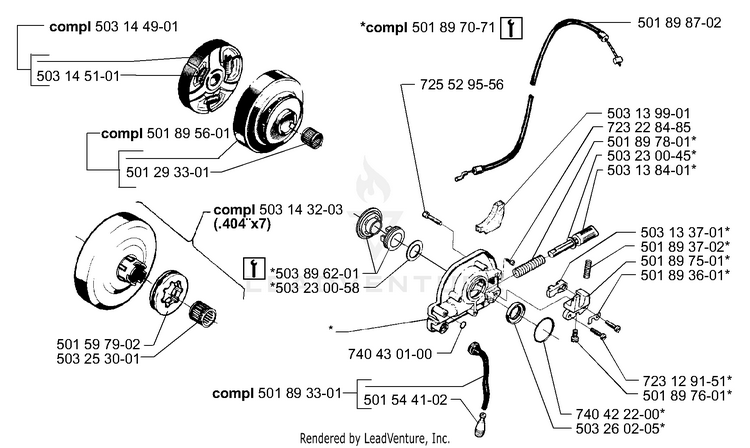

Oil Pump/Clutch

...
...
501897071
OIL PUMP HUS-501897071
...
501898702
WIRE CPL HUS-501898702
...
503139901
SEALING HUS-503139901
...
723228485
SCREW 4X5 HUS-723228485
...
501897801
RECOIL SPRING HUS-501897801
...
503230045
WASHER HUS-503230045
...
503138401
PUMP PLUNGER HUS-503138401
...
503133701
ARM HUS-503133701
...
501893702
SPRING HUS-501893702
...
501897501
BRACKET HUS-501897501
...
501893601
SPRING HUS-501893601
...
723129151
Screw HUS-723129151
...
501897601
SCREW HUS-501897601
...
740422200
O-RING HUS-740422200
...
503260205
SEALING RING HUS-503260205
...
501544102
OIL SCREEN HUS-501544102
...
740430100
O-RING HUS-740430100
...
501893301
OIL HOSE HUS-501893301
...
503230058
WASHER HUS-503230058
...
503896201
WHEEL HUS-503896201
...
501597902
22270 RIMSPROCKET HUS-501597902
...
503253001
SUPPORT BUSHING HUS-503253001
...
503144901
CLUTCHES HUS-503144903
...
503145101
CLUTCH SPRING HUS-503145101
...
501895601
CLUTCH DRUM HUS-503143204
...
501293301
NEEDLE BEARING HUS-501293301
...
503143203
CLUTCH DRUM HUS-503143203
...
725529556
SCREW HUS-503202620
