Husqvarna 31 WG (2006-06) Trimmer/Edger

Model: 31 WG (2006-06)

Save
 Don't See Your Part Listed?
product name

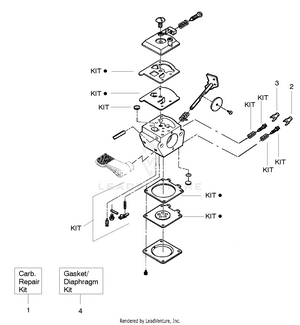

Carburetor

...
...
1
Carburetor Repair Kit (KIT= Indicates Contents) PLN-530069824
...
2
Limiter Cap-Low (tan) PLN-530038478
...
3
Limiter Cap-High (brown) PLN-530038479
...
4
Gasket/Diaphragm Kit (Indicates Contents) PLN-530069844

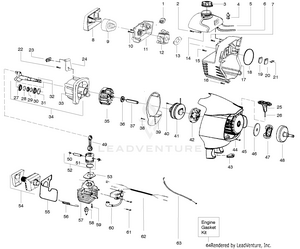

Engine

...
...
1
Bulb-purge PLN-530047721
...
2
Screw-tank PLN-530015843
...
3
Assy-Fuel Cap PLN-530057973
...
4
Assy-Fuel pick-up PLN-530095646
...
5
Kit-Line Carb/Purge PLN-530069247
...
6
Kit-Fuel/Purge line PLN-530069216
...
7
Screw PLN-530015775
...
8
Cover-Air box PLN-530054935
...
9
Filter-Air PLN-530054946
...
10
Screw-carb. PLN-530015849
...
11
Air Box PLN-530054934
...
12
Kit-Carb Assy. (WT-619) PLN-530071565
...
xx
Assy-Carb(WT628) PLN-530071637
...
xx
Kit-Carb Assy. (WT-628) PLN-530071637
...
13
Gasket-Carb. (kit) PLN-530071401
...
14
Assy-Fuel Tank PLN-545075305
...
15
Screw-crankcase PLN-530015771
...
16
Screw-shrd to f/hsg. PLN-530015952
...
17
Shroud PLN-530056044
...
18
O-ring-c/case (kit) PLN-530071401
...
19
Valve-reed PLN-530027593
...
20
Stop-reed valve PLN-530054596
...
21
SCREW 6-19X.437 PLN-545227101
...
22
Screw-tank retainer PLN-530015875
...
23
Isolator-fuel tank PLN-530055492
...
24
Ret.-fuel tank PLN-530054941
...
25
Handle-starter PLN-530054834
...
26
Kit-Rope PLN-530071400
...
27
Bearing-inner PLN-530032103
...
28
Retainer PLN-530015787
...
29
Seal PLN-530019158
...
30
Bearing-outer PLN-530032102
...
31
Retainer-crankshaft PLN-530015789
...
32
Assy-crankshaft PLN-530054948
...
33
Assy-Crankcase PLN-545081901
...
34
Assy-C'case/C'shaft (incl. 27-31,32,33) PLN-545006037
...
35
Kit-Flywheel Assy. PLN-530071402
...
36
Washer PLN-530016030
...
37
Spacer PLN-530055620
...
38
Screw-baffle PLN-530015775
...
39
Plate-baffle PLN-530056864
...
40
Screw-rope PLN-530016391
...
41
Kit-pulley (Incl. #40) PLN-530071399
...
42
KIT STARTER SPRING PLN-545008011
...
43
Grommet PLN-530019182
...
44
Screw PLN-530016386
...
45
Housing-Fan w/eyelet PLN-530056226
...
46
Washer-Clutch PLN-530094189
...
47
Assy.-Clutch PLN-530055122
...
48
Assy-Drum PLN-530028799
...
49
Assy-Connecting rod PLN-530010960
...
50
Retainer-piston pin PLN-530015162
...
51
Ring-Piston PLN-530025875
...
52
Kit-Piston PLN-530069899
...
53
Gasket-Cylinder (kit) PLN-530071401
...
54
Kit-Muffler PLN-530069310
...
55
Shield PLN-530058957
...
56
Spring-muffler PLN-530036409
...
57
Kit-Cylinder PLN-530071582
...
58
Spark plug (RCJ-6Y) PLN-952030249
...
59
Bolt-Cylinder PLN-530001624
...
60
Module-Ignition PLN-530039218
...
61
Screw-module PLN-530016357
...
62
Assy-Rear wire PLN-530057238
...
63
Assy-Throttle Cable PLN-530054942
...
64
Kit-Gasket PLN-530071401

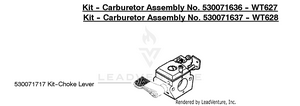

Kit - Carburetor Assembly

...
...
530071636
Assy-Carb(WT628) PLN-530071637
...
530071637
CARB ASSY WT-628 PLN-530071637
...
530071717
KIT CHOKE LEVER RS32 PLN-530071717

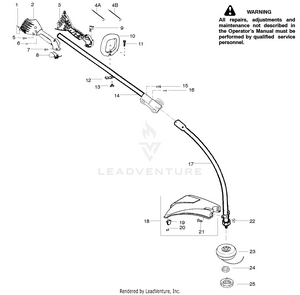

Shaft

...
...
1
Screw-handle/fan hsg PLN-530015886
...
2
Throttle Hsg. (Right) PLN-530054837
...
3
Kit-Left Throttle Hsg. PLN-530071553
...
4
Assy-Front Wire (A) Lower Front Wire PLN-530054943
...
4
Assy-Front Wire (B) Upper Front Wire PLN-530055724
...
5
Screw PLN-530015886
...
6
Screw PLN-530015886
...
7
Screw PLN-530015886
...
8
Trigger PLN-530054940
...
9
Kit-Switch PLN-530069572
...
10
Assy-Handle-Assist PLN-530055699
...
11
Bolt PLN-530015820
...
12
Clamp-Assist Handle PLN-530088416
...
13
Wingnut PLN-530016118
...
14
Assy-Upper Shaft (incl. flex shaft & coupler) PLN-530071607
...
15
Screw PLN-530016344
...
16
Screw-Alignment PLN-530016343
...
17
Assy-Lower Shaft (Incl. flex shaft) PLN-530071557
...
18
Kit-Shield Ass'y. (Incl.18-21) PLN-530069779
...
19
Line Limiter PLN-530052285
...
20
Screw PLN-530015886
...
21
Bolt PLN-530015820
...
22
Wingnut PLN-530016118
...
23
Accy-Spool w/.080 line PLN-952711574
...
24
Guide-Centrex Line PLN-530403949
...
25
Assy-Cap 3/8 RH PLN-530095763
...
25
Operator Manual Not Shown PLN-530163734
...
25
Decal-Upper Shaft Not Shown PLN-530056221
...
25
Decal-Shaft Warning (lower) Not Shown PLN-545209101
...
25
Decal-Starting Instruction Not Shown PLN-530057369
...
...
...
...
