Husqvarna 2P4C3A (1993) Tractor

Model: 2P4C3A (1993)

Back To Assemblies

Save Part Not Listed?
product name

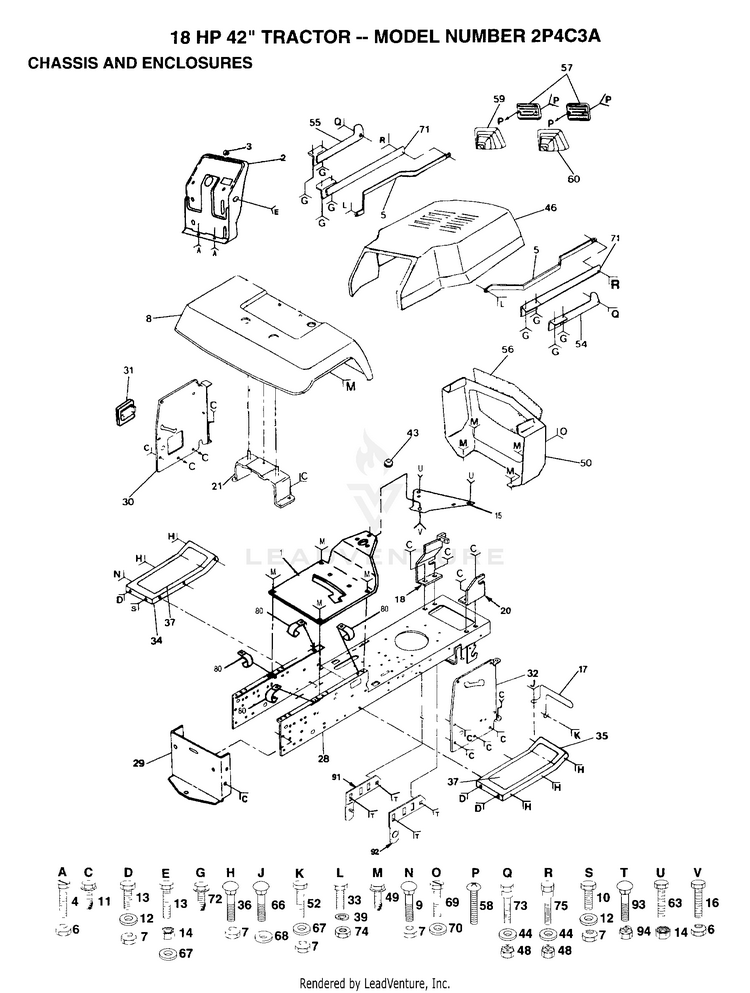

CHASSIS AND ENCLOSURES

...
...
1
SADDLE.SLKSCR.6SP HUS-131343X018
...
2
DASH HUS-122341X
...
3
PLUG-DASH T HUS-8022J
...
4
SCREW HUS-74180512
...
5
NLA HUS-109587X
...
6
SUB= 73690500 HUS-73680500
...
7
SUB= 73690600 HUS-73680600
...
8
FENDER HUS-109872X505
...
9
SUB= 72110608 HUS-72140608
...
10
SUB= 74760616 HUS-74760614
...
11
SCREW HUS-17490612
...
12
WASHER HUS-19131312
...
13
SUB= 74780612 HUS-74760612
...
14
SUB= 73690600 HUS-73680600
...
15
SUB= 140181 HUS-137654
...
16
BOLT HUS-74760512
...
17
MUFFLER GUARD HUS-135029
...
18
SUPPORT RH YTH HUS-110853X
...
20
SUPPORT LH YTH HUS-110852X
...
21
BRKT FENDER HUS-136619
...
28
SUB= 145501 HUS-135034
...
29
SUB= 145009 HUS-130805
...
30
DASH PANEL LH HUS-132178
...
32
SUB= 532132069 HUS-132069
...
33
BOLT LT HUS-74760412
...
34
SUB= 145244X505 HUS-105465X505
...
35
SUB= 145243X505 HUS-105464X505
...
36
BOLT HUS-72110606
...
37
"PAD,FOOTREST" HUS-131864
...
39
LOCKWASHER HUS-10040400
...
43
SUB= 9151R HUS-110436X
...
44
WASHER HUS-19090816
...
46
HOOD.BOLD.BREED HUS-3607J505
...
48
SUB= 73690400 HUS-73680400
...
49
SCREW LT HUS-17490608
...
50
GRILL.BOLD.BREED HUS-5351J505
...
52
BOLT D HUS-72110608
...
54
STRAP ASSY T HUS-677A876
...
55
STRAP ASSY T HUS-677A875
...
56
SUB= 101235L HUS-101235L431
...
57
LENS T HUS-109671X
...
58
SCREW HUS-17990808
...
59
SUB= 7606J361 HUS-7606J505
...
60
SUB= 7607J361 HUS-7607J505
...
63
SUB= 74780612 HUS-74760612
...
66
SCREW GTV HUS-17490616
...
67
WASHER HUS-19131316
...
68
WASHER HYT HUS-19131616
...
69
SCREW HUS-17511208
...
70
SUB= 19071018 HUS-8019J
...
71
STRAP ASSY-REAR T HUS-677A432
...
72
SUB= 17521312 HUS-17411310
...
73
BOLT T HUS-7605J
...
74
SUB= 50675 HUS-73220400
...
75
"BOLT,SHOULDER" HUS-124549X
...
80
"CLIP,INSULATOR" HUS-126471X
...
91
PIVOT BRKT LH HUS-134774
...
92
PIVOT BRKT RH HUS-134775
...
93
BOLT HUS-72140606
...
94
NUT HUS-73800600
