Husqvarna 2P4C3A (1993) Tractor

Model: 2P4C3A (1993)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
1
CHOKE CONTROL HUS-132779
...
2
WASHER HUS-19131316
...
3
LOCKWASHER HUS-11050600
...
4
SUB= 7810H HUS-73610600
...
5
SUB= 133439 HUS-132773
...
6
SCREW LT HUS-17720410
...
7
ENGINE HUS-1422707
...
8
PIPE NIPPLE LT HUS-13280336
...
9
ELBOW HUS-13200300
...
10
CLIP T HUS-2751R
...
11
MUFFLER HYT HUS-108373X
...
12
EXHAUST TUBE T HUS-100229L
...
13
SUB= 272250 HUS-8545J
...
14
SUB= 74780414 HUS-74780412
...
15
LOCKWASHER HUS-10040400
...
16
SCREW LT HUS-17490624
...
17
NUT HUS-73510600
...
18
LOCKWASHER HUS-11050600
...
19
SHIELD HEAT FRT HUS-123190X
...
20
SUB= 74780612 HUS-74760612
...
21
SUB= 73690600 HUS-73680600
...
22
REAR BAFFLE T HUS-109740X
...
25
SPARK ARREST KIT HUS-132922
...
26
SUB= 141291 HUS-127813
...
27
HOSE CLAMP HUS-123487X
...
28
STRAP ASM. F.TANK HUS-136360
...
29
SUB= 158990 HUS-123549X
...
30
"STRAP,TANK" HUS-123803X
...
31
SCREW LT HUS-17490608
...
32
"STRIP,FORM" HUS-126564X
...
33
FUEL LINE T HUS-8543R
...
35
STUD.1/4.TURN HUS-123650X
...
36
HEAT SHIELD HUS-133746
...
37
RETAINER LT HUS-105838X
...
38
RECEPTACLE LT HUS-105839X

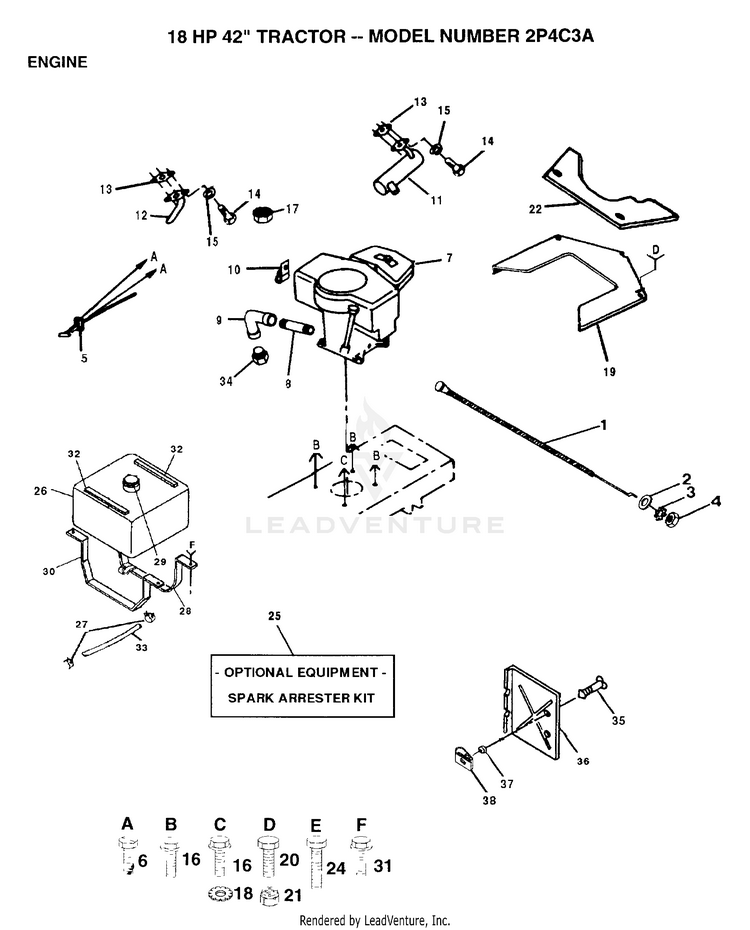

Schematic Image Zoomed
