Husqvarna 2K4B9A (1994) Tractor

Model: 2K4B9A (1994)

Back To Assemblies

Save Part Not Listed?
product name

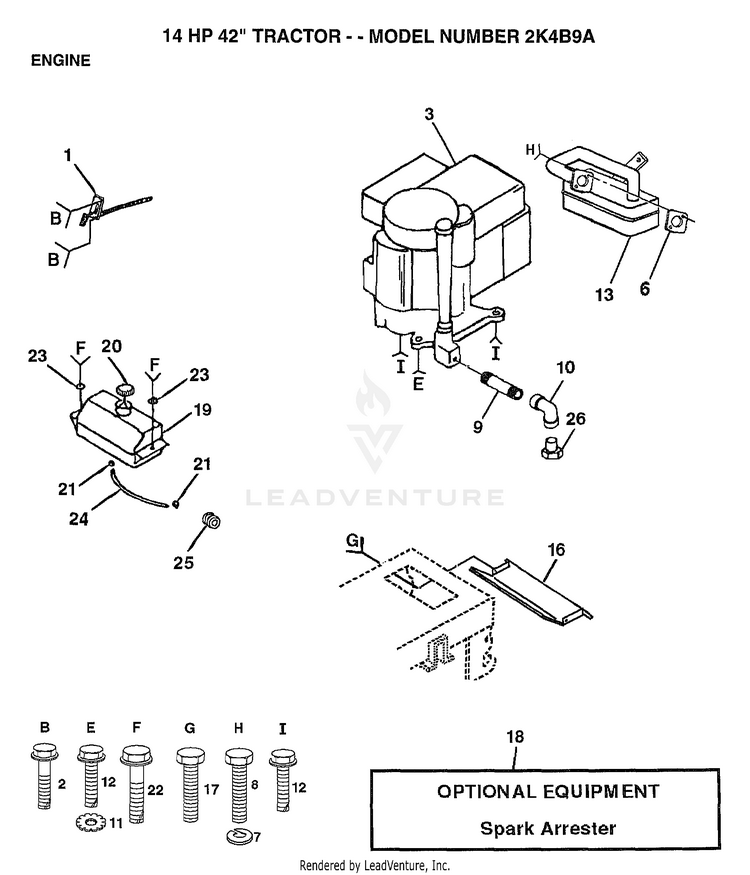

ENGINE/14 HP 42"

...
...
1
THROTTLE CONTROL HUS-132771
...
2
SCREW LT HUS-17720410
...
6
SUB= 272293 HUS-125593X
...
7
LOCKWASHER HUS-10040500
...
8
SCREW HUS-71070512
...
9
PIPE NIPPLE HUS-13280324
...
10
ELBOW HUS-13200300
...
11
LOCKWASHER HUS-11050600
...
12
SCREW HUS-17490620
...
13
MUFFLER HUS-137352
...
16
SUB= 128953 HUS-128953X
...
17
SCREW HUS-17021008
...
18
SUB= 532137180 HUS-137180
...
19
TANK.FUEL.LT. HUS-109202X
...
20
CAP ASM FUEL HUS-140527
...
21
HOSE CLAMP HUS-123487X
...
22
SCREW HEX CRT HUS-17490412
...
23
WASHER HUS-19091416
...
24
FUEL LINE T HUS-8548R
...
25
SUB= 532124028 HUS-124028X
