Husqvarna 2K4B3A (1993) Tractor

Model: 2K4B3A (1993)

Back To Assemblies

Save Part Not Listed?
product name

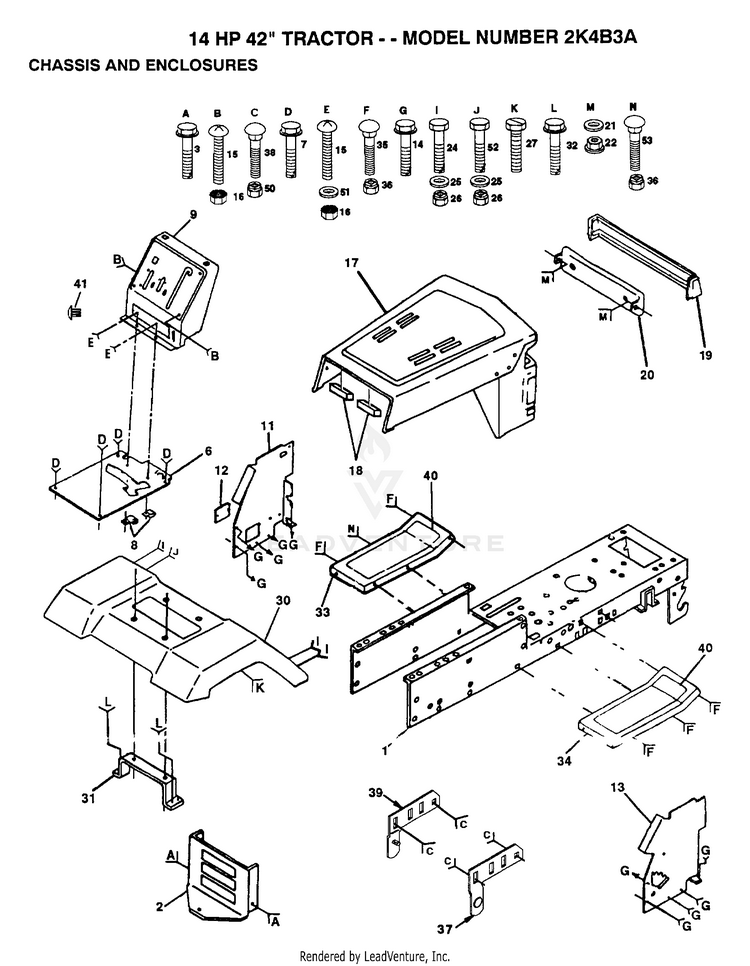

CHASSIS AND ENCLOSURES

...
...
1
SUB= 145501 HUS-135034
...
2
SUB= 145009 HUS-130805
...
3
SCREW HUS-17490612
...
6
SADDLE 6 SP HUS-130800X015
...
7
SCREW LT HUS-17490608
...
8
CLIP T HUS-2751R
...
9
DASH HUS-137411X012
...
11
PANEL DASH LH HUS-122795X
...
12
COVER ACCESS HUS-121794X
...
13
SUB= 155934X010 HUS-124031X
...
14
SCREW LT HUS-17490608
...
15
SCREW HUS-74180512
...
16
NUT HUS-73510500
...
17
HOOD/GRILL ASM HUS-133956X505
...
18
SUB= 532126938 HUS-126938X
...
19
SUB= 133954 HUS-133805
...
20
SUB= 918132257 HUS-132257
...
21
WASHER PM HUS-19091216
...
22
PAL NUT LT HUS-108067X
...
24
SUB= 74780612 HUS-74760612
...
25
WASHER HUS-19131312
...
26
SUB= 73690600 HUS-73680600
...
27
SCREW LT HUS-17490608
...
30
FENDER HUS-109872X505
...
31
BRKT FENDER HUS-136619
...
32
SCREW HUS-17490612
...
33
SUB= 145244X505 HUS-105465X505
...
34
SUB= 145243X505 HUS-105464X505
...
35
BOLT HUS-72110606
...
36
SUB= 73690600 HUS-73680600
...
37
PIVOT BRKT RH HUS-134775
...
38
BOLT HUS-72140606
...
39
PIVOT BRKT LH HUS-134774
...
40
"PAD,FOOTREST" HUS-131864
...
41
PLUG BUTTON T HUS-5479J
...
50
NUT HUS-73800600
...
51
WASHER HUS-19131216
...
52
SUB= 74760616 HUS-74760614
...
53
SUB= 72110608 HUS-72140608
