Husqvarna 2H4D3B (1996) Tractor

Model: 2H4D3B (1996)

Back To Assemblies

Save Part Not Listed?
product name

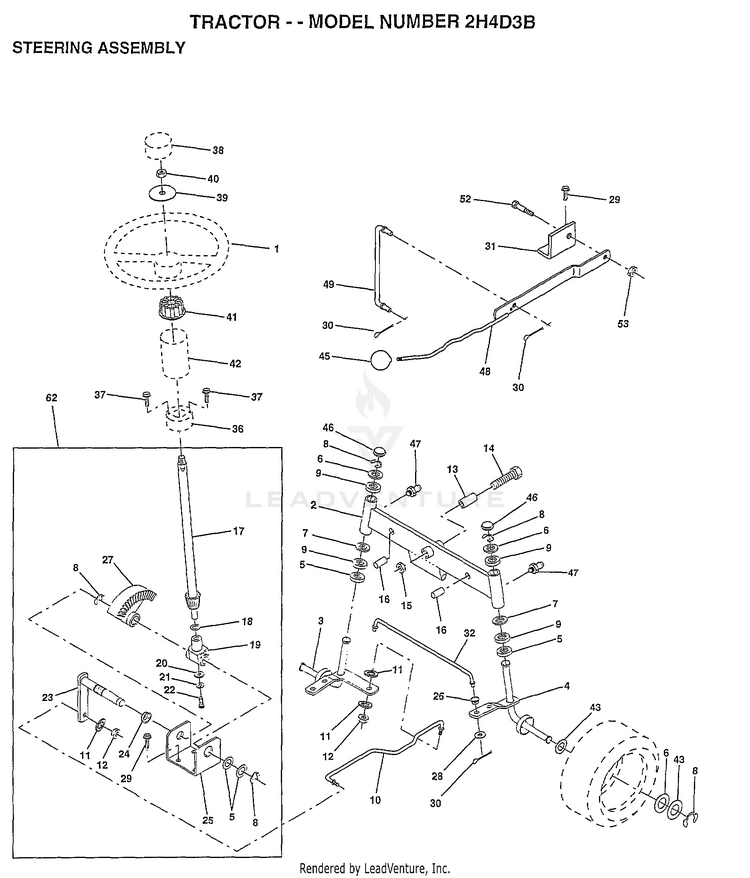

STEERING ASSEMBLY/TRACTOR

...
...
1
SUB= 150547 HUS-133741
...
2
AXLE ASM FRONT HUS-142033
...
3
SPINDLE LH HUS-135227
...
4
SPINDLE RH HUS-135228
...
5
WASHER .T HUS-6266H
...
6
WASHER HUS-121748X
...
7
WASHER HUS-19272016
...
8
RING HUS-12000029
...
9
COL. SRTG. BEAR. HUS-3366R
...
10
SUB= 532130468 HUS-130468
...
11
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
12
SUB= 7810H HUS-73610600
...
13
BEARING HUS-110438X
...
14
BOLT HEX 5/8-11 HUS-74011056
...
15
"NUT-LOC,FLANGE LT" HUS-73901000
...
16
AXLE PIN HUS-132624
...
17
STEERING SHAFT HUS-128758
...
18
THRUST WASHER HUS-57079
...
19
SUPPORT.SHAFT HUS-124035X
...
20
SUB= 532126684 HUS-126684X
...
21
LOCKWASHER HUS-10040400
...
22
SCREW.SCKTHD.CAP HUS-71100410
...
23
SUB= 918127501 HUS-127501
...
24
NYLINER T HUS-109816X
...
25
"BRKT,STEERING" HUS-124036X
...
26
BUSHING.DRAGLINK HUS-126847X
...
27
GEAR SECTOR HUS-136874
...
28
WASHER HUS-19131416
...
29
SCREW HUS-17490612
...
30
COTTER PIN HUS-76020412
...
31
BRKT.PVT.MAN.LVR. HUS-138171
...
32
TIE ROD HUS-130465
...
36
BUSHING.STRG.3/4 HUS-145207
...
37
SCREW.10-24X1/2 HUS-17541008
...
38
ST WHL INSERT CAP HUS-133742
...
39
WASHER HUS-100712K
...
40
SUB= 73360800 HUS-73940800
...
41
ADAPTER LT HUS-100711L
...
42
BOOT SHAFT STEER HUS-140216
...
43
WASHER HUS-121749X
...
45
KNOB T (1/2-HOLE) HUS-106933X
...
46
CAP HUS-121232X
...
47
ZERK M HUS-6855M
...
48
LEVER.ASM.CLUTCH HUS-146841
...
49
LINK CLTCH W/NUTS HUS-131291
...
52
"BOLT, SHOULDER LT" HUS-106451X
...
53
SUB= 73690600 HUS-73680600
...
62
SUB= 156595 HUS-149682
