Husqvarna 2E3B3C (1995) Tractor

Model: 2E3B3C (1995)

Back To Assemblies

Save Part Not Listed?
product name

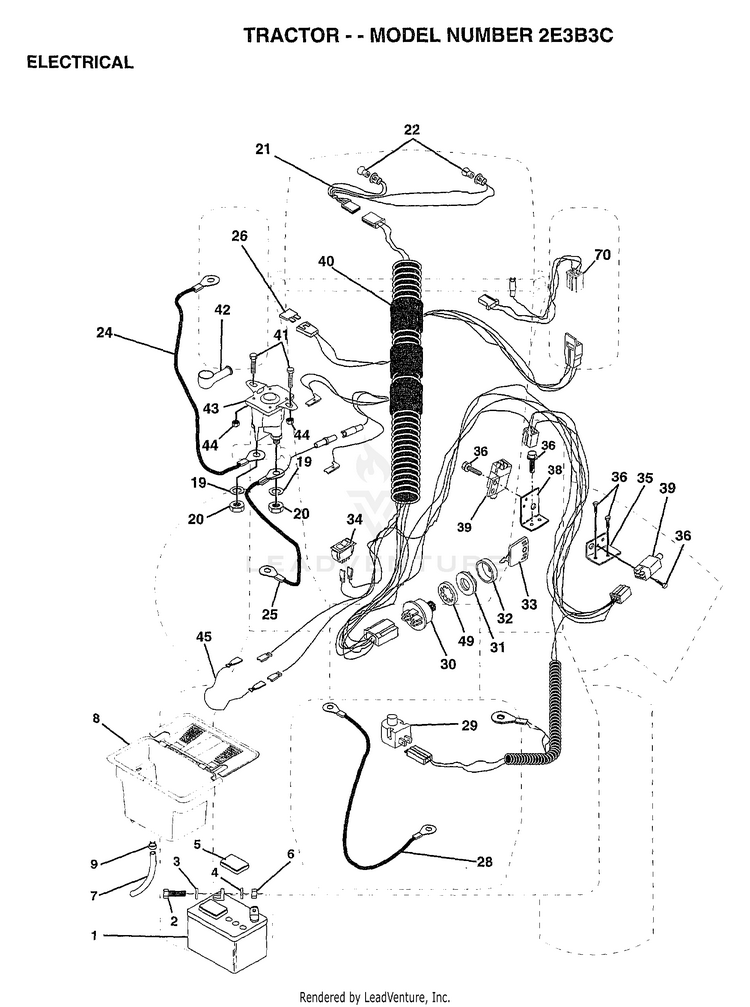

ELECTRICAL

...
...
1
SUB= 123899X HUS-121265X
...
2
BOLT LT HUS-74760412
...
3
WASHER HUS-19091016
...
4
LOCKWASHER HUS-10040400
...
5
"CAP,BATTERY " HUS-121264X
...
6
SUB= 50675 HUS-73220400
...
7
TUBE T HUS-109238X
...
8
SUB= 156417 HUS-144940
...
9
HOSE CLAMP T HUS-109596X
...
19
SUB= 10040400 HUS-10090400
...
20
NUT HUS-73350400
...
21
"HARNESS,LIGHT SOC" HUS-136850
...
22
HEADLAMP BULB HUS-4152J
...
24
"CABLE T, BATTERY" HUS-4799J
...
25
CABLE.BTRY.6GA.RD HUS-146147
...
26
FUSE HYT HUS-108824X
...
28
CABLE T HUS-4207J
...
29
SWITCH SEAT HUS-121305X
...
30
SUB= 163088 HUS-144921
...
31
SUB= 145774 HUS-140400
...
32
COVER KEY SWITCH HUS-141226
...
33
KEY MLD GEN DELTA HUS-140401
...
34
SWITCH LT HUS-110712X
...
35
BRACKET LT HUS-108236X
...
36
SCREW HUS-17021008
...
38
BRACKET SWITCH IN HUS-140336
...
39
SWITCH INTERLOCKT HUS-109553X
...
40
HARNESS.IGN.DASH. HUS-146057
...
41
BOLT HXHD FIN HUS-71110408
...
42
SUB= 154336 HUS-131563
...
43
SUB= 146154 HUS-145673
...
44
NUT HXKEP 1/4X20 HUS-73640400
...
45
ADAPTER AMMETER HUS-140844
...
49
LOCKWASHER HUS-11151000
...
70
HARNESS ENG DUAL HUS-140413
