Husqvarna 2E3B3A (1993) Tractor

Model: 2E3B3A (1993)

Back To Assemblies

Save Part Not Listed?
product name

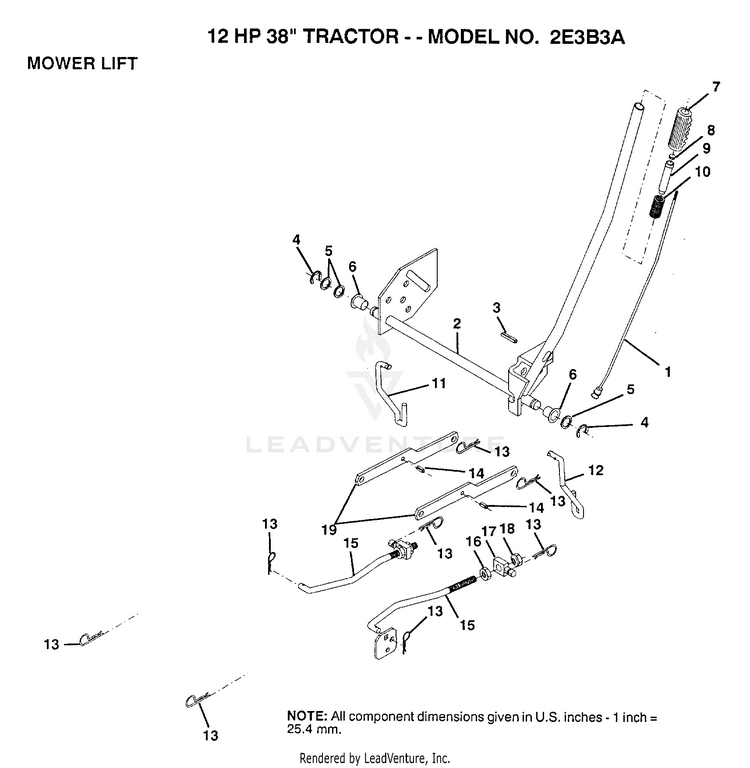

12HP 38" TRACTOR MOWER LIFT

...
...
1
SUB= 136973 HUS-122514X
...
2
SUB= 145117 HUS-122507X
...
3
PIN-GROOVE LT HUS-105767X
...
4
SUB= 2225J HUS-12000002
...
5
WASHER HUS-19211416
...
6
NYLON BEARING HUS-120183X
...
7
GRIP HUS-109413X
...
8
SUB= 125925X HUS-124526X
...
9
SUB= 125925X HUS-122364X
...
10
SUB= 532122512 HUS-122512X
...
11
LINK LIFT LH HUS-134619
...
12
LIFT LINK RH HUS-135388
...
13
SUB= 85902 HUS-4939M
...
14
"PIN,SPRING" HUS-135563
...
15
LINK.FRONT HUS-127218
...
16
NUT HUS-73350800
...
17
TRUNION HUS-130171
...
18
NUT.LK.W/WSH.1/2. HUS-73800800
...
19
SUB= 130833 HUS-130832
