Husqvarna 2D779A (1999 & Before) Walk Behind Rotary Mower

Model: 2D779A (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

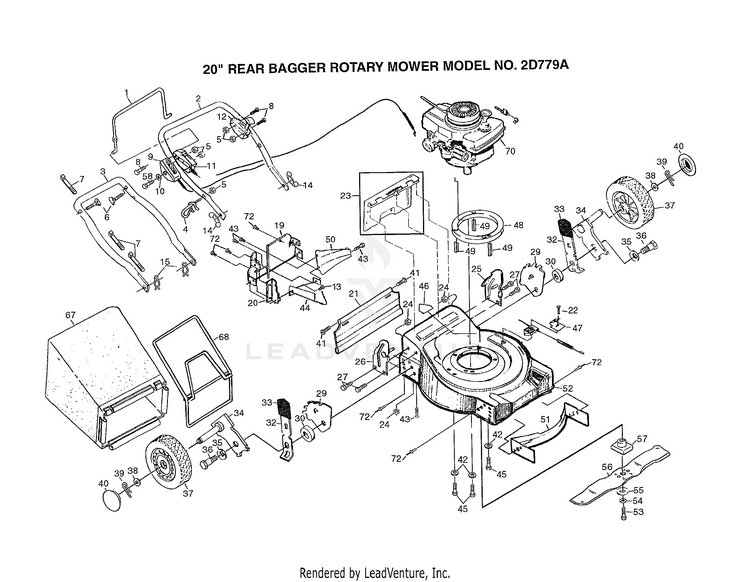

20" REAR BAGGER ROTARY MOWER

...
...
1
CONTROL BAR HUS-133006
...
2
SUB= 154480X479 HUS-132670X479
...
3
SUB= 151590X479 HUS-134081X479
...
4
ROPE GUIDE HUS-132001
...
5
SUB= 73800400 HUS-63601
...
6
BOLT.HANDLE.LM HUS-131959
...
7
SUB= 7192J HUS-664-26
...
8
SUB= 74250434 HUS-85692
...
9
SUB= 107245X HUS-107244X
...
10
WASHER PM HUS-85723
...
11
CABLE MZR E/S HUS-144025
...
12
DRIVE CONTROL HUS-133879
...
13
SCREW PM HUS-86344
...
14
"NUT,WING PM" HUS-128638
...
15
HAIRPIN COTTER HUS-51793
...
19
"PLATE.BACK.20""" HUS-700355X479
...
20
BAFFLE.SIDE HUS-700363X479
...
21
SUB= 140657 HUS-133259
...
22
"SCREW, HEX PM" HUS-85768
...
23
"KIT, REAR DOOR PM" HUS-48257
...
24
LOCKNUT PM HUS-751592
...
25
SUB= 150956 HUS-700913X479
...
26
SUB= 150956 HUS-700915X479
...
27
SCREW HUS-55187
...
29
BRACKET.ADJ.9POS. HUS-700325X007
...
30
SUB= 146630 HUS-84920
...
32
SPRING SELECTOR HUS-700331X004
...
33
KNOB PM HUS-87877
...
34
AXLE ARM HUS-85021X004
...
35
"WASHER, BELLEVIL." HUS-62335
...
36
BOLT SHLD 3/8-16 HUS-142748
...
37
SUB= 146247 HUS-800390
...
38
WASHER HUS-52160
...
39
RETAINER CLIP PM HUS-85179
...
40
HUB CAP HUS-77400
...
41
HINGE SCREW HUS-88652
...
42
SUB= 19131216 HUS-53998
...
43
SCREW HUS-54583
...
44
DISCHARGE GUARD HUS-133188X479
...
45
SCREW HUS-850999
...
46
DECAL HYT HUS-107339X
...
47
BRKT DRV COV HUS-88615
...
48
ENGINE SPACER HUS-850988
...
49
SUB= 850988 HUS-850987
...
50
REAR BAFFLE HUS-700063X479
...
51
SUB= 144961 HUS-132198X479
...
52
KIT.HSG.20RD.FWBD HUS-702084
...
53
SCREW HUS-851084
...
54
LOCKWASHER HUS-850263
...
55
"WASHER,HARDEN" HUS-851074
...
56
BLADE.STAND.20INC HUS-850972
...
57
ADAPTOR.BLADE.LM HUS-851514
...
58
SUB= 128889 HUS-851185
...
67
GRASS BAG HUS-132655
...
68
CATCHER FRAME HUS-133413
...
72
BLIND RIVET HUS-128415
...
xx
DECAL ELEC START ENGINE HUS-851101
...
xx
MANUAL OPR GEN SP HUS-140755
...
xx
NLA HUS-140756
...
xx
MANUAL.P.2D779A HUS-144454
...
xx
HOUSING DECAL HUS-133414
...
xx
CLIPPING DEFL HUS-MA36
...
xx
"KIT, MULCHER 20""" HUS-MK20FRD
