Husqvarna 2C3B1A (1995) Tractor

Model: 2C3B1A (1995)

Back To Assemblies

Save Part Not Listed?
product name

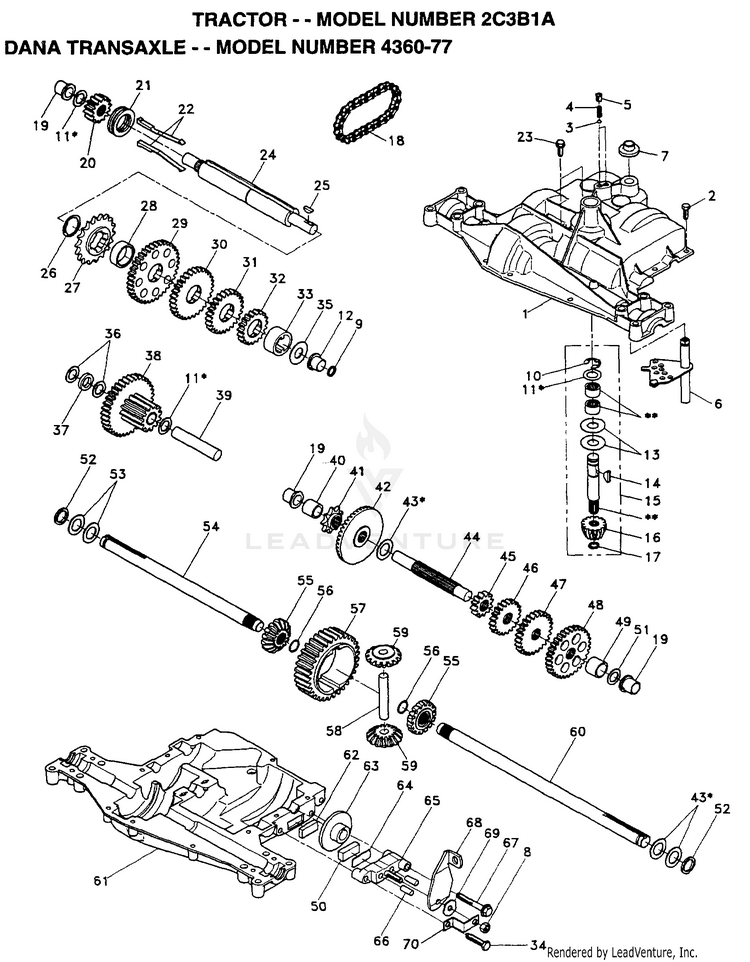

DANA TRANSAXLE

...
...
1
HOUSING UPPER TRN HUS-142671
...
2
SUB= 74760412 HUS-2274J
...
3
SUB= 68003 HUS-134400
...
4
SPRING, DETENT LT HUS-105904X
...
5
SCREW-SET 3623 HUS-105905X
...
6
KIT SHIFTER ASM HUS-138235
...
7
SHIFTER BOOT HUS-134399
...
8
NUT.LOCK.5/16-24 HUS-73810500
...
9
SEAL OIL DANA5416 HUS-143045
...
10
SUB= 2225J HUS-142672
...
11
ASM KIT SHIM 4689 HUS-134793
...
12
SUB= 148268 HUS-143051
...
13
WASHER.PLAIN..632X1.38X.046 HUS-120415X
...
14
KEY WOODRUFF-DANA HUS-142674
...
15
AS KIT INPUT SHFT HUS-138234
...
16
Pinion, Bevel, 14 Teeth HUS-110078X
...
17
RING,RETAINING LT(3624) HUS-105909X
...
18
CHAIN,24 PTCH LT HUS-105910X
...
19
BEARING.FLNG.5510 HUS-105911X
...
20
GEAR SPUR 14 TTH HUS-142675
...
21
COLLAR CLUTCH HUS-138246
...
22
ASM KIT CLTCH KEY HUS-138236
...
23
SCREW TAP W/SEAL HUS-134791
...
24
SHAFT INTERM DANA HUS-142676
...
25
WOODRUFF KEY HUS-2244J
...
26
RING,RETAINING LT (3627) HUS-105916X
...
27
SPROCKET 18T T HUS-120470X
...
28
SPACER YT HUS-110070X
...
29
GEAR SPUR 37 TTH HUS-142677
...
30
Gear, Spur, 30 Teeth HUS-120405X
...
31
GEAR 25T LT HUS-108980X
...
32
SPUR GEAR 19T HUS-134796
...
33
SPACER 1.133 X 1.50 X .750 HUS-138293
...
34
Screw, Self-Tapping, Large 5/16-18 x 1.44 HUS-106596X
...
35
WASHER, PLAIN LT HUS-105925X
...
36
WASHER 025 HUS-2232J
...
37
Spacer .630 x 1.00 x .169 HUS-108978X
...
38
Assembly, Gear, Combination of 12 Teeth and 35 Teeth HUS-110079X
...
39
SHAFT IDLER HUS-124639X
...
40
SPACER T HUS-120472X
...
41
SPROCKET 9T LT HUS-105928X
...
42
Gear, Bevel, 42 Teeth HUS-110084X
...
43
ASM KIT SHIM HUS-134394
...
44
SHAFT T HUS-120473X
...
45
GEAR SPUR 12 TTH HUS-142678
...
46
Gear, Spur, 20 Teeth HUS-120407X
...
47
GEAR, SPUR 25T LT HUS-106589X
...
48
Gear, Spur, 31 Teeth HUS-105937X
...
49
SPACER T HUS-120523X
...
50
PUCK.FRICTION (7109) HUS-120951X
...
51
WASHER 060 HUS-2226J
...
52
NEOPRENE WASHER HUS-134401
...
53
WASHER 031 HUS-2264J
...
54
SUB= 154658 HUS-120474X
...
55
Gear, Miter, 15 Teeth HUS-110081X
...
56
RING,RETAINING LT HUS-105941X
...
57
Gear, Spur, 32 Teeth HUS-110071X
...
58
SHAFT T(3919) HUS-120952X
...
59
Gear, Miter, 15 Teeth HUS-110082X
...
60
Axle, R.H. HUS-120475X
...
61
HOUSING LOWER TNS HUS-142680
...
62
PUCK T HUS-120961X
...
63
BRAKE DISC.T (5809) HUS-7294J
...
64
SPACER LT (3758) HUS-108989X
...
65
Jaw, Brake HUS-120953X
...
66
PIN.DOWEL 3843 HUS-120954X
...
67
TAP SCREW HUS-134799
...
68
SUB= 108992X HUS-138244
...
69
WASHER LT (3760) HUS-108996X
...
70
Bracket, Anti-Rotation HUS-120956X
...
71
Grease HUS-120416X
