Husqvarna 2C3B1A (1995) Tractor

Model: 2C3B1A (1995)

Back To Assemblies

Save Part Not Listed?
product name

MOWER

...
...
1
SUB= 145775 HUS-142829
...
2
BOLT HUS-72140506
...
3
BRKT ASM SWAY BAR HUS-138017
...
4
BRKT DECK SW BAR HUS-138440
...
5
Spring, Retainer HUS-4939M
...
6
SUB= 130833 HUS-130832
...
8
BLADE BOLT HUS-850857
...
9
SUB= 10040600 HUS-10030600
...
10
WASHER.HARD.BLADE HUS-140296
...
11
"BLADE.38"" HIPERF" HUS-138497
...
12
BEARING.BALL HUS-129895
...
13
SUB= 137646 HUS-137645
...
14
HSG ASM MANDREL HUS-128774
...
15
BEARING HUS-110485X
...
16
STRIPPER RND MWR HUS-140329
...
19
BOLT SHD 5/16-18 HUS-132827
...
21
SUB= 73690500 HUS-73680500
...
23
BRKT DEFLECTOR HUS-137607
...
24
CAP-SLEEV(107627) HUS-105304X
...
25
SPRING.(150051) HUS-123713X
...
26
NUT PUSH M HUS-110452X
...
27
DEFLECTOR-SHLD T HUS-106736X
...
28
WASHER HUS-19111016
...
29
ROD-HINGE T HUS-106735X
...
30
SUB= 157722 HUS-138776
...
31
WASHER HUS-129963
...
32
SUB= 153532 HUS-129206
...
33
SUB= 139729 HUS-137266
...
36
FLAT IDLER PULLEY HUS-131494
...
40
SUB= 73690600 HUS-73680600
...
41
PIVOT ROD HUS-133551
...
43
CLUTCH ROD SECOND HUS-133504
...
45
RETAINER M (5 2)(3 2) HUS-4497H
...
53
BRAKE ASM HUS-130840
...
54
HARDENED WASHER HUS-133943
...
55
IDLER ARM ASSY HUS-133840
...
56
Spacer, Retainer HUS-122052X
...
67
KNOB T(3/8 HOLE) HUS-106932X
...
68
BELT.V.T-PATH HUS-144200
...
69
SUB= 3145 HUS-76020312
...
71
ROD CLUTCH 38/42 HUS-142427
...
72
RETURN SPRING HUS-131870
...
73
CLUTCH ARM SECOND HUS-127847
...
74
WASHER HUS-121748X
...
75
RING HUS-12000029
...
76
SHOULDER BOLT HUS-128903
...
77
SPRING KEEPER HUS-127845
...
78
SUB= 154810 HUS-140334
...
79
BUSHING HUS-127498
...
80
SUB= 918128759 HUS-128759
...
81
NUT HUS-73350600
...
82
TRUNION ADJ HUS-142028
...
86
RUNNER-LH M HUS-7631J
...
87
RUNNER RH HUS-128772
...
88
WASHER M HUS-19111216
...
89
WASHER GT HUS-19131612
...
92
NUT HUS-73800600
...
107
RETAINER SPACER HUS-133502
...
108
IDLER ARM STIFF HUS-133503
...
109
BOLT HUS-74760640
...
110
UPSTOP DECK FT 38 HUS-142587
...
113
SCREW HUS-17490512
...
122
BRAKE ROD LH HUS-131289
...
123
BRAKE ROD RH HUS-131288
...
124
BOLT HUS-72110614
...
xx
DECK.SERV.38.HLMC HUS-145758
...
xx
MANDREL ASM HUS-130794

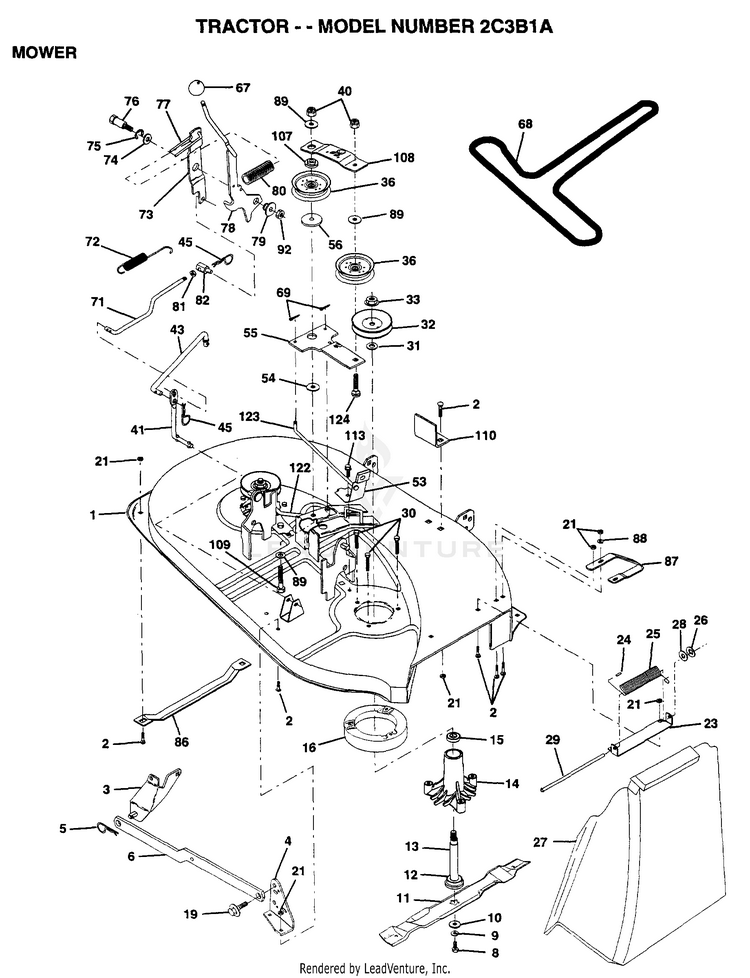

Schematic Image Zoomed
