Husqvarna 2C3B1A (1995) Tractor

Model: 2C3B1A (1995)

Back To Assemblies

Save Part Not Listed?
product name

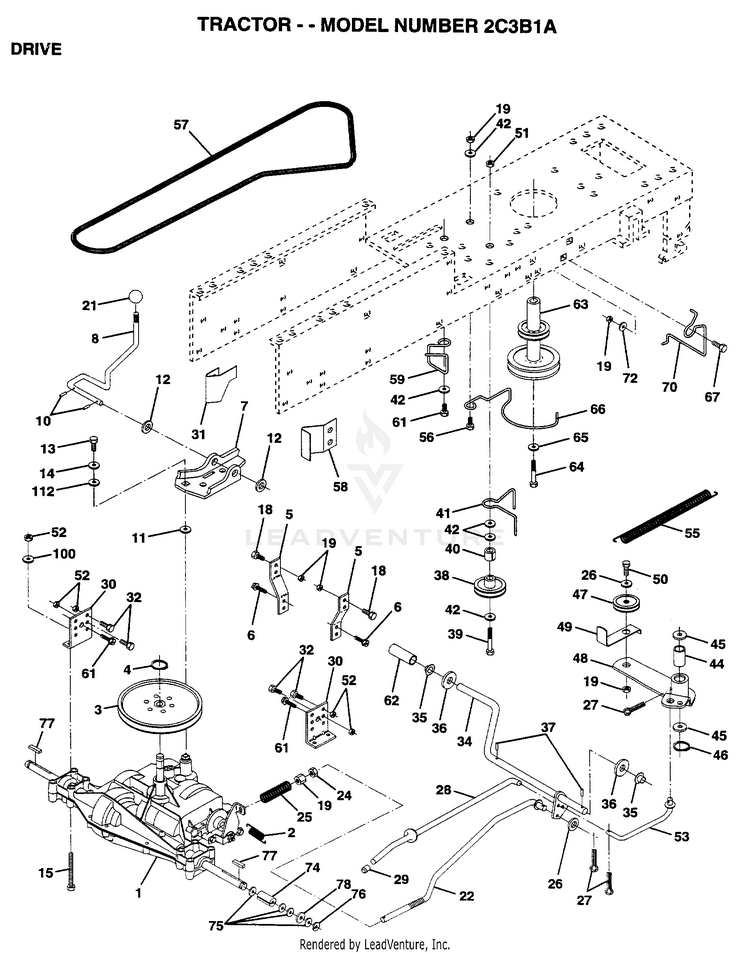

DRIVE

...
...
1
SUB= 918142594 HUS-142594
...
2
SPRING.BRAKE.RETU HUS-146682
...
3
PULLEY TRANS HUS-123666X
...
4
SUB= 2267J HUS-12000028
...
5
STRAP TORQUE HUS-121520X
...
6
SCREW HUS-17490512
...
7
SUB= 162240 HUS-130802
...
8
SHIFT ROD HUS-131679
...
10
PIN COTTER 1/8 HUS-76020416
...
11
WASH-SHFT PLT LT HUS-105701X
...
12
WASHER HUS-19151216
...
13
BOLT.1/4-28.W/PAT HUS-74550412
...
14
LOCKWASHER HUS-10040400
...
15
BOLT HEX HUS-74780544
...
18
BOLT HUS-74780616
...
19
NUT HUS-73800600
...
21
KNOB T (1/2-HOLE) HUS-106933X
...
22
BRAKE ROD HUS-130804
...
24
NUT HUS-73350600
...
25
SPRING ROD LT HUS-106888X
...
26
WASHER HUS-19131316
...
27
COTTER PIN HUS-76020412
...
28
ROD.BRAKE.PARK.LT HUS-145204
...
29
PLUNGER CAP T HUS-71673
...
30
TRANSAXLE MTG BKT HUS-130807
...
31
KEEPER,BELT LH T HUS-127275X
...
32
BOLT HUS-74760512
...
34
SHAFT.PEDAL.FOOT HUS-149001
...
35
NYLON BEARING HUS-120183X
...
36
WASHER LT HUS-19211616
...
37
Pin Roll 3/16 x 1” HUS-1572H
...
38
PULLEY.IDLER.FLAT HUS-123674X
...
39
BOLT HUS-74760644
...
40
SPACER T HUS-4470J
...
41
BELT KEEPER LT HUS-109070X
...
42
WASHER HUS-19131312
...
44
LY, BEARING HUS-105706X
...
45
WASHER LT HUS-110812X
...
46
KLIP RING HUS-12000039
...
47
SUB= 139245 HUS-127783
...
48
ARM IDLER HUS-123789X
...
49
RETAIN BELT HUS-123205X
...
50
SUB= 74930624 HUS-74760624
...
51
SUB= 73690600 HUS-73680600
...
52
SUB= 73690500 HUS-73680500
...
53
Link Clutch 7 66 HUS-105710X
...
55
SPRING, RETURN LT HUS-105709X
...
56
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
57
SUB= 138255 HUS-130801
...
58
KEEPER,BELT RH T HUS-127274X
...
59
KEEPER BELT CNTSP HUS-140312
...
61
SCREW HUS-17490612
...
62
PEDAL COVER T HUS-8883R
...
63
PULLEY.ENGINE HUS-140186
...
64
BOLT HUS-71170764
...
65
LOCKWASHER HUS-10040700
...
66
KEEPER.BELT.ENG.L HUS-129921
...
70
KEEPER BELT ENG HUS-134683
...
72
WASHER HUS-19132012
...
74
SPACER LT HUS-109502X
...
75
WASHER (2513009) HUS-121749X
...
76
E-RING LT HUS-12000001
...
77
SQUARE KEY HUS-123583X
...
78
WASHER HUS-121748X
...
100
WASHER M HUS-19111216
...
112
WASHER LT HUS-19091210
