Husqvarna 295 Type 2 (2008-07) Chain Saw

Model: 295 Type 2 (2008-07)

Back To Assemblies

Save Part Not Listed?
product name

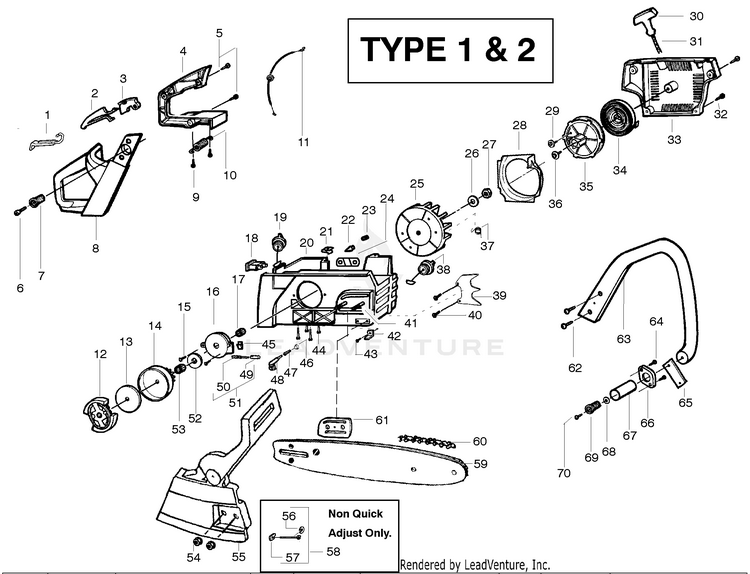

Starter - Type 1-2

...
...
1
Choke Lever HUS-530053443
...
2
Throttle Lockout HUS-530036098
...
3
Throttle Trigger HUS-530036097
...
4
Cover-Handle (kit) HUS-530071272
...
5
Screw HUS-530015957
...
6
Screw HUS-530015937
...
7
Spring - Isolator HUS-530038985
...
8
Cover-Handle (kit) HUS-530071272
...
9
Screw HUS-530015906
...
10
Isolator Spring HUS-530038986
...
11
Throttle Cable HUS-530038471
...
12
Clutch Ass'y. HUS-530014949
...
13
Clutch Washer HUS-530015611
...
14
Kit - Clutch Drum & Bearing HUS-530069342
...
15
Screw (Incl. 53) HUS-530015896
...
16
PLUNGER & GEAR ASSY HUS-545036801
...
17
Oil Pump Worm HUS-530029833
...
18
Switch Kit HUS-530069572
...
19
Fuel Cap Ass'y. HUS-530010845
...
20
Chassis Ass'y. HUS-530037551
...
21
Speed Nut HUS-530015922
...
22
Check Valve HUS-530026119
...
23
Vent Plug HUS-530029868
...
24
Bar Stud Plate HUS-530036043
...
25
FLYWHEEL ASSY HUS-575635501
...
26
Washer HUS-530015127
...
27
Nut HUS-530016071
...
28
Baffle Plate HUS-530047667
...
29
Screw HUS-530016080
...
30
Handle-Starter HUS-530056422
...
31
Rope Kit HUS-530069232
...
32
Screw HUS-530015892
...
33
Fan Hsg. Ass'y. Kit (Incl. 28) HUS-530047743
...
34
RETURN SPRING HUS-545008005
...
35
Kit - Starter Pulley HUS-530069313
...
36
Screw HUS-530015920
...
37
Spring - Starter Dog HUS-530023817
...
38
Assy-Oil Cap HUS-530057236
...
39
Assy. - Spike (Incl.8) HUS-530014381
...
40
Screw HUS-530015886
...
41
Bar Bolt HUS-530015877
...
42
Chain Catcher HUS-530029850
...
43
Screw HUS-530015906
...
44
Screw HUS-530016037
...
45
OIL HOSE HUS-545037101
...
46
Filter-Oil HUS-530056533
...
47
Filter-Oil HUS-530056533
...
48
Pickup-Oil HUS-545047801
...
49
PLUNGER & GEAR ASSY HUS-545036801
...
50
PLUNGER & GEAR ASSY HUS-545036801
...
51
PLUNGER & GEAR ASSY (Incl. 16, 49, & 50) HUS-545036801
...
52
Thrust Washer HUS-530015907
...
53
Clutch Bearing HUS-530032119
...
54
Bar Mounting Nut HUS-530015917
...
55
Assy-ChainBrake HUS-530054819
...
56
Retainer-Bar Adjust HUS-530038593
...
57
Bar Adjusting Pin HUS-530015826
...
58
Kit - Bar Adjust (Incl.56,57) HUS-530069611
...
59
Bar 16" Standard HUS-952044577
...
59
Bar 18" Standard HUS-952044375
...
59
Bar 20" Standard HUS-952044377
...
59
Bar 20" Quick Adjust HUS-952044815
...
60
Chain 16" (66/.325-.050") HUS-952051301
...
60
Chain 18" (72/.325-.050") HUS-952051313
...
60
Chain 20" (78/.325-050") HUS-952051310
...
61
Bar Plate HUS-530047855
...
62
Screw HUS-530015814
...
63
Handle HUS-530038327
...
64
Screw HUS-530015775
...
65
Front Strap HUS-530036113
...
66
Isolator Plate HUS-530036101
...
67
Spring Sleeve HUS-530036142
...
68
Washer HUS-530015123
...
69
Isolator spring HUS-530038985
...
70
Screw HUS-530015984
