Husqvarna 2900 Type 4 (2008-07) Chain Saw

Model: 2900 Type 4 (2008-07)

Back To Assemblies

Save Part Not Listed?
product name

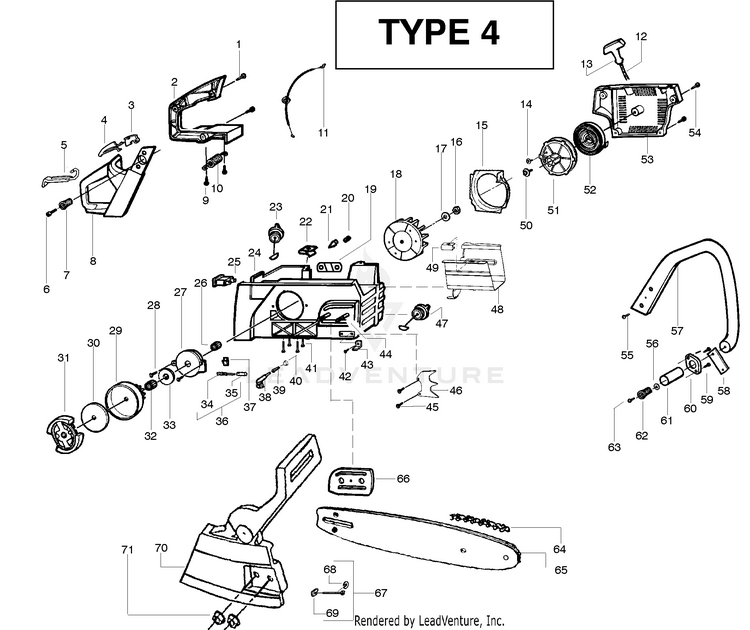

Starter - Type 4

...
...
1
Screw HUS-530015957
...
2
Cover-Handle HUS-530071272
...
3
Trigger-Throttle HUS-530036097
...
4
Lockout-Throttle HUS-530036098
...
5
Lever-Choke HUS-530053443
...
6
Screw HUS-530015937
...
7
Spring-Isolator HUS-530038985
...
8
Handle-Rear HUS-530071272
...
9
Screw HUS-530015906
...
10
Spring-Isolator HUS-530038986
...
11
Assy-Throttle Cable (Incl. Grommet) HUS-530038471
...
12
Kit-Rope HUS-530069232
...
13
Handle-Starter HUS-530056402
...
14
Screw HUS-530016080
...
15
Plate-Baffle Fan HUS-530047667
...
16
Nut-Flywheel HUS-530016071
...
17
Washer-Flywheel HUS-530015127
...
18
FLYWHEEL ASSY HUS-575635501
...
19
Plate-Support (Bar Stud) HUS-530036043
...
20
Plug-Vent HUS-530029868
...
21
Valve-Check HUS-530026119
...
22
Nut-Speed HUS-530015922
...
23
Assy-Fuel Cap HUS-530010845
...
24
Assy-Chassis HUS-530037511
...
25
Kit-Switch HUS-530069572
...
26
Worm-Oil Pump HUS-530029833
...
27
PLUNGER & GEAR ASSY HUS-545036801
...
28
Screw HUS-530015896
...
29
Kit-Clutch Drum HUS-530069342
...
30
Washer-Clutch HUS-530015611
...
31
Assy-Clutch HUS-530014949
...
32
Bearing-Clutch HUS-530032119
...
33
Washer-Thrust HUS-530015907
...
34
PLUNGER & GEAR ASSY HUS-545036801
...
35
PLUNGER & GEAR ASSY HUS-545036801
...
36
PLUNGER & GEAR ASSY (Incl. 27, 34, & 35) HUS-545036801
...
37
OIL HOSE HUS-545037101
...
38
Pickup-Oil HUS-545047801
...
39
Filter-Oil HUS-530056533
...
40
Filter-Oil HUS-530056533
...
41
Screw HUS-530016037
...
42
Screw HUS-530015814
...
43
Chain Catcher HUS-530029850
...
44
Bar Bolt HUS-530015877
...
45
Screw HUS-530015886
...
46
Kit-Spike Assy. (Incl.#45) HUS-530014381
...
47
Assy-Oil Cap HUS-530057236
...
48
Shield-Heat HUS-530055406
...
49
Clip-"U" HUS-530055322
...
50
Screw HUS-530015920
...
51
Kit-Starter Pulley HUS-530069313
...
52
RETURN SPRING HUS-545008005
...
53
Housing-Fan (Incl.#15) HUS-530047744
...
54
Screw HUS-530015892
...
55
Screw HUS-530015814
...
56
Washer HUS-530015123
...
57
Handle-Front HUS-530038327
...
58
Front Strap-AV HUS-530036113
...
59
Screw-Plate HUS-530015775
...
60
Plate-Isolator HUS-530036101
...
61
Spring Sleeve-AV HUS-530036142
...
62
Spring-Isolator HUS-530038985
...
63
Screw HUS-530015984
...
64
Chain-20" HUS-952051310
...
65
Bar-20" HUS-952044326
...
66
Bar Plate HUS-530047855
...
67
Kit-Bar Adj. (Incl 68,69) HUS-530069611
...
68
Retainer-Bar Adjust HUS-530038593
...
69
Pin-Bar Adjust HUS-530015826
...
70
Assy-ChainBrake HUS-530054803
...
71
Nut-Bar Mounting HUS-530015917
